Unpacking
Check that the cooker hood has no damages. Trans-
portation damages should immediately be reported
to the one responsible for the transport Damages,
faults and eventually missing details should immedi-
ately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.
Placement
The hood is to be mounted on the wall or under a
wall cupboard.
When installed, the hood must be not less than
60 cm. above electric burners or 70 cm. above
gas or mixed-fuel burners. (Fig. 4).
Electrical connection
The hood has a power cord with moulded plug with
earth connection to be connected to a wall outlet of
230 V.
The power cord length is 1 m.
Mounting of hood on wall
l Fix the drilling template to the wall (Fig. 5).
l Make 3 Ø 8 mm holes in the wall. 2 at points H,
1 as desired at points I.
l Insert the three Ø 8 mm expansion plugs into the
wall.
l Insert 2 5x45 screws at points H but do not
tighten them completely.
l Open the grid.
l Fit the hood into holes H, tighten the 2 screws.
l From inside the hood, insert the third 5x45 screw
into hole I (Fig. 6).
Installation
Special accessories
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Order by the retailer
PNC 942 120 180

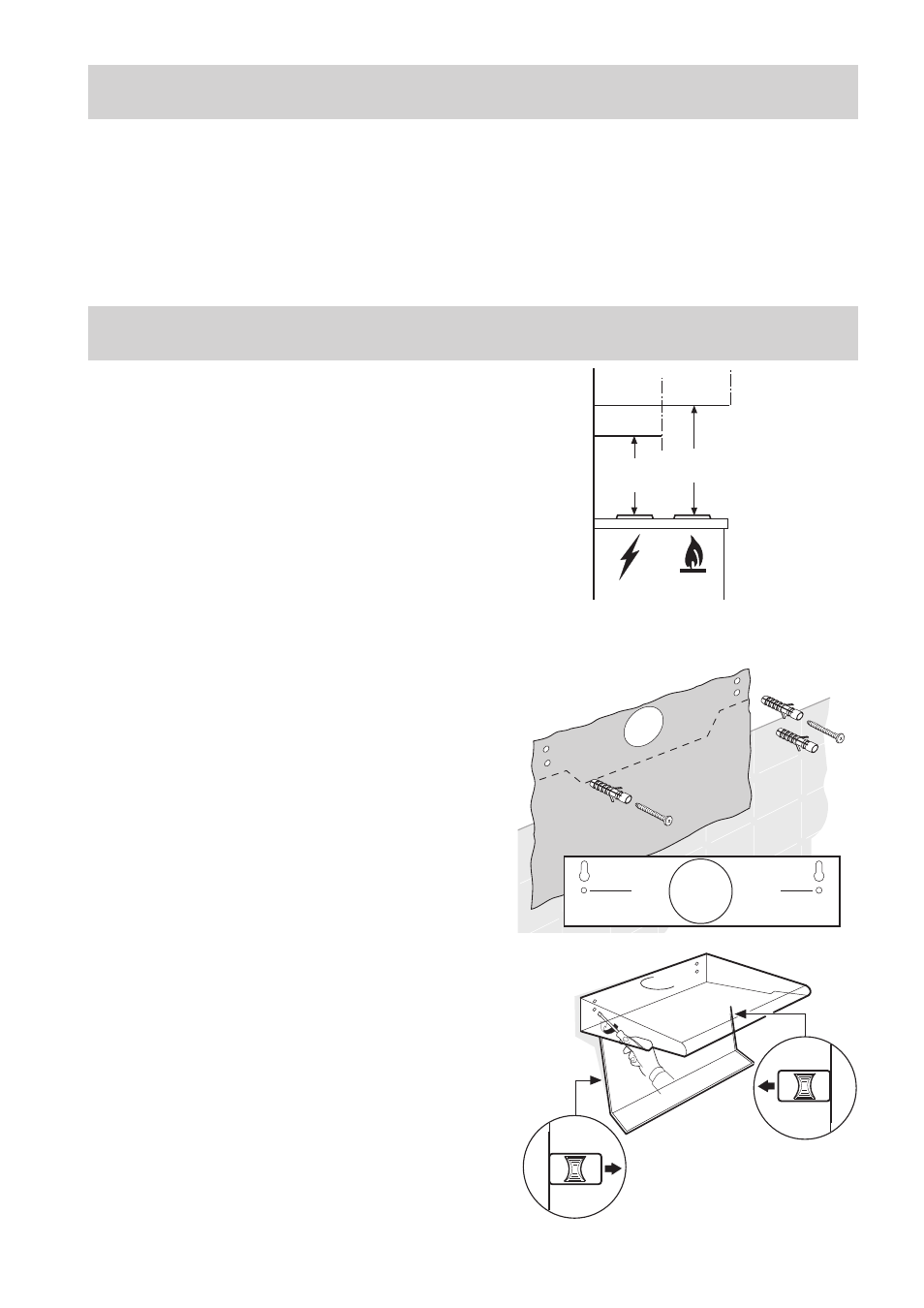

Fig. 4
Fig. 5
Min
70 cm
Min
60 cm
I
H
H
I
H H
I I
H
H
I
I
CLOSED
OPEN
CLOSED
OPEN
Fig. 6
