Exmark FR23KC User Manual

Page 17

2. SPECIFICATIONS

2.1 MODEL NUMBER:

FR20KC; FR23KC; FR27KC

2.2 ENGINE

2.2.1

Engine Specifications: See your Engine Owner’s Manual

2.2.2

RPM: Full Speed: 3750 RPM (No Load) Idle: 1500 RPM

2.3 FUEL SYSTEM

2.3.1

Capacity: 8.5 gal (32 L)

2.3.2

Type of Fuel: Regular unleaded gasoline, 87 octane or higher

2.3.3

Fuel Filter: In-line 15 Micron Kohler P/N 2405010.

2.3.4

Fuel Shut-Off Valve: 1/4 turn “in-line” valve by fuel filter.

2.4 ELECTRICAL SYSTEM

2.4.1 Charging System:

Flywheel Alternator

2.4.2 Charging Capacity:

15 amps

2.4.3 Battery Type: BCI Group U1

2.4.4 Battery Voltage: 12 Volt

2.4.5 Polarity: Negative Ground

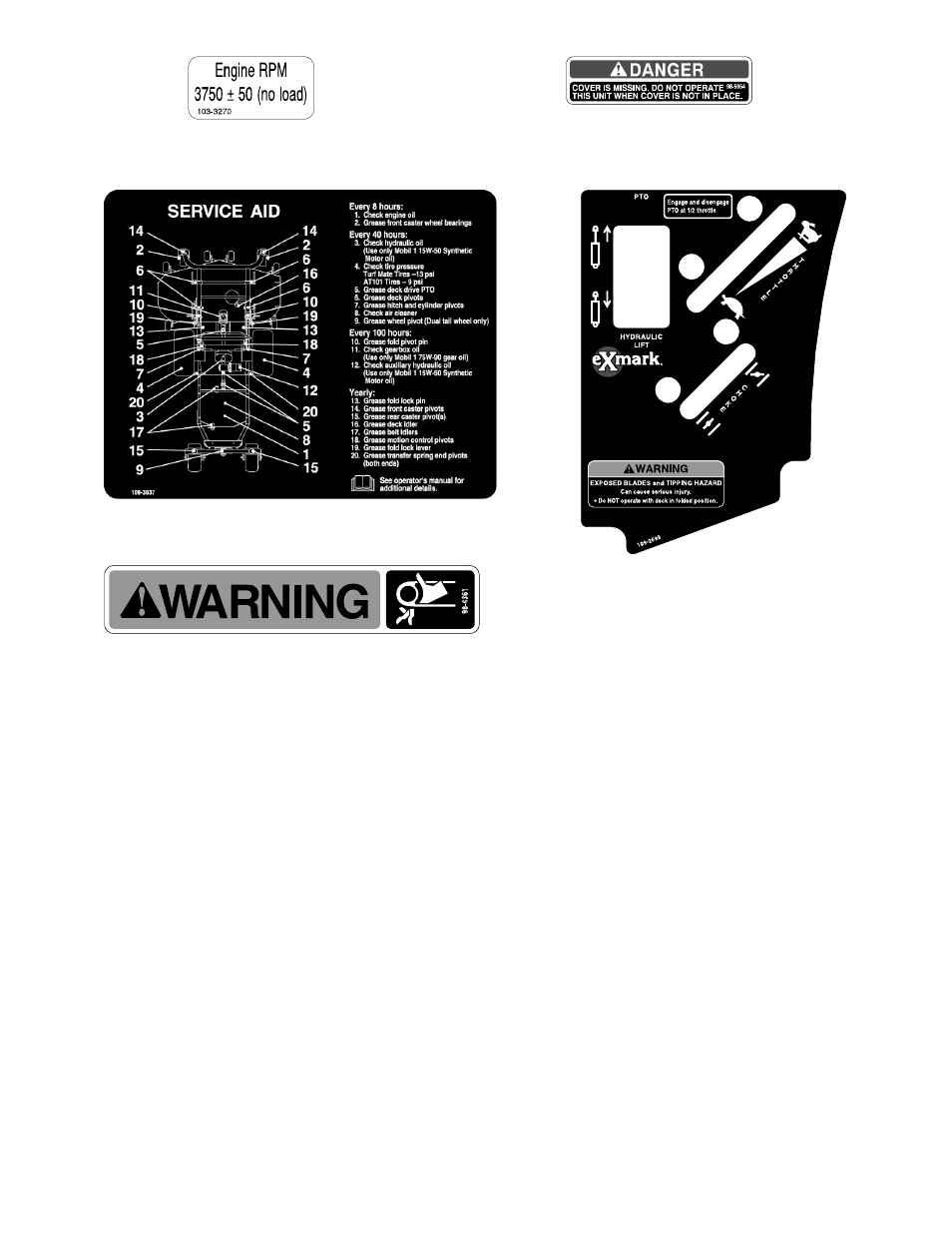

PART NO. 109-2699
LOCATION: On Control Panel

PART NO. 109-3637
LOCATION: Back of Seat

PART NO. 93-4361
LOCATION: On LH and RH Side, Near

Back of Unit

PART NO. 98-5954
LOCATION: Top Surface of Hood

Support

PART NO. 103-3270
LOCATION: Top Surface of

Hood Support
