MB3

Wall/Ceiling

Mounting Bracket

Installation Instructions

MB3 Wall/Ceiling Mounting Bracket Kit

The MB3 Wall/Ceiling Mounting Bracket Kit features robust brackets and hardware that allow for a Zx3 loudspeaker
to be quickly and easily mounted to a wall or ceiling in almost any position to obtain the desired sound coverage.

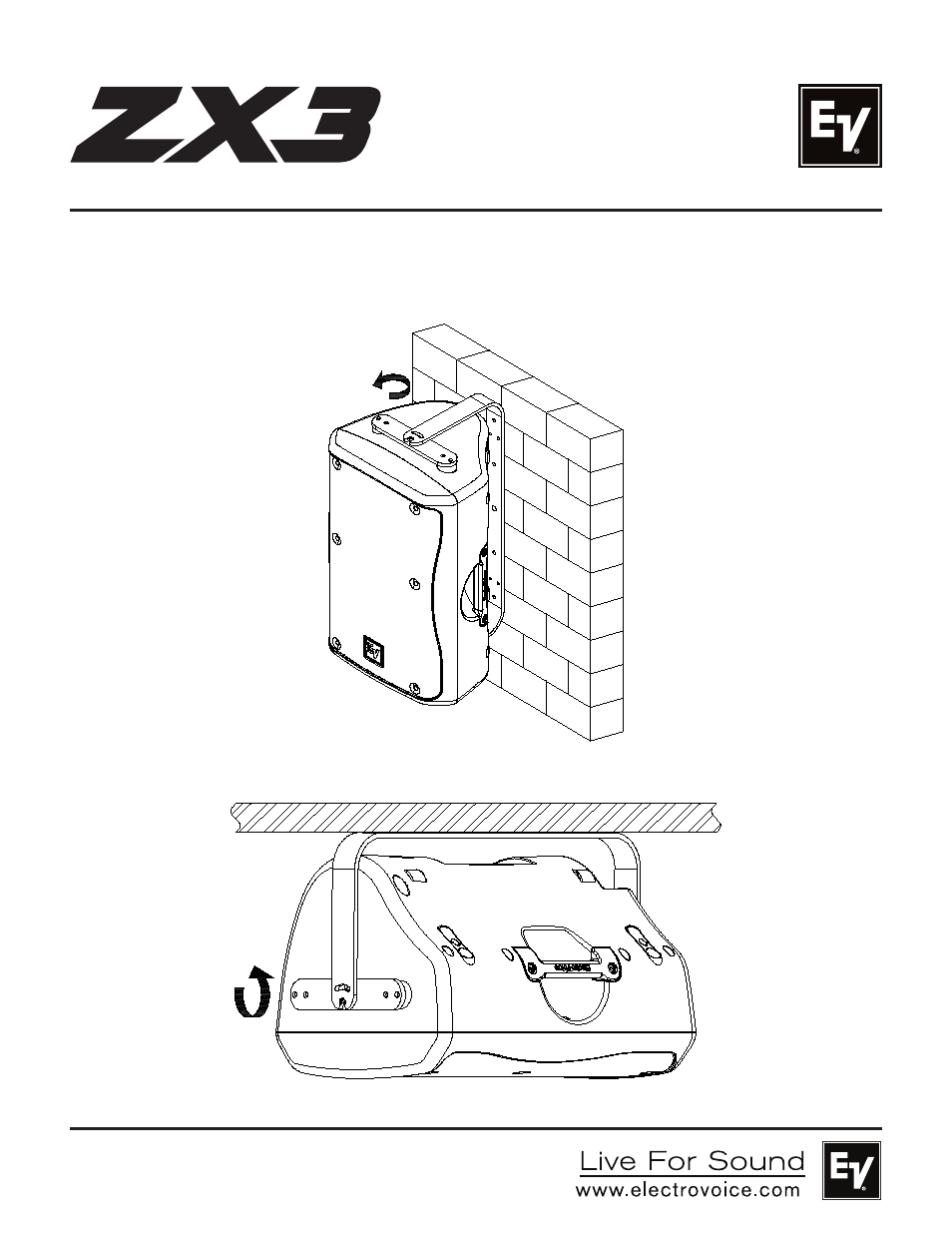

Figure 1: Suspending the Zx3 from a wall using the MB3

Figure 2: Suspending the Zx3 from a ceiling using the MB3
