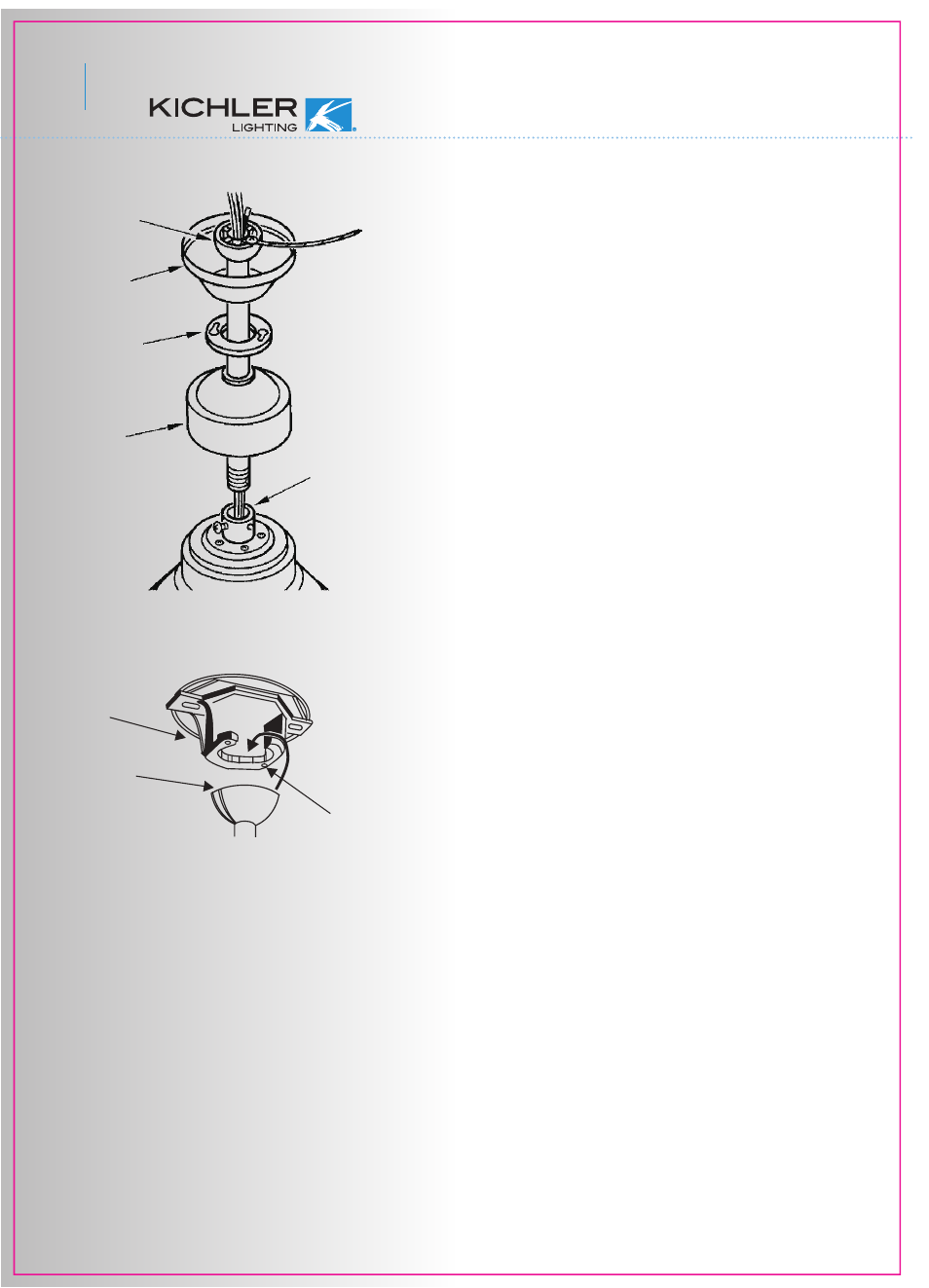

Fig. 9

Registration slot

Check Tab

Ceiling Mounting

Bracket

Step 7. Now lift the motor assembly into

position and place the hanger ball into the

hanger bracket. Rotate motor assembly until

the “Check Tab” has dropped into the “Regis-

tration Slot” and seats firmly. (Fig. 9)

NOTE: The entire motor assembly should

not rotate if this is done correctly.

NOTE: Please make sure all set screws are

in place and tight before installation the

following steps.

Step 6. Slip the coupling cover, canopy décor

and canopy onto the downrod. Reinstall the

hanger ball onto the downrod and make sure

the cross pin is in place and the set screw on

hanger ball is tight. (Fig. 8)

Fig. 8

Canopy Decor

Canopy

Coupling

Coupling cover

Hanger ball
