6

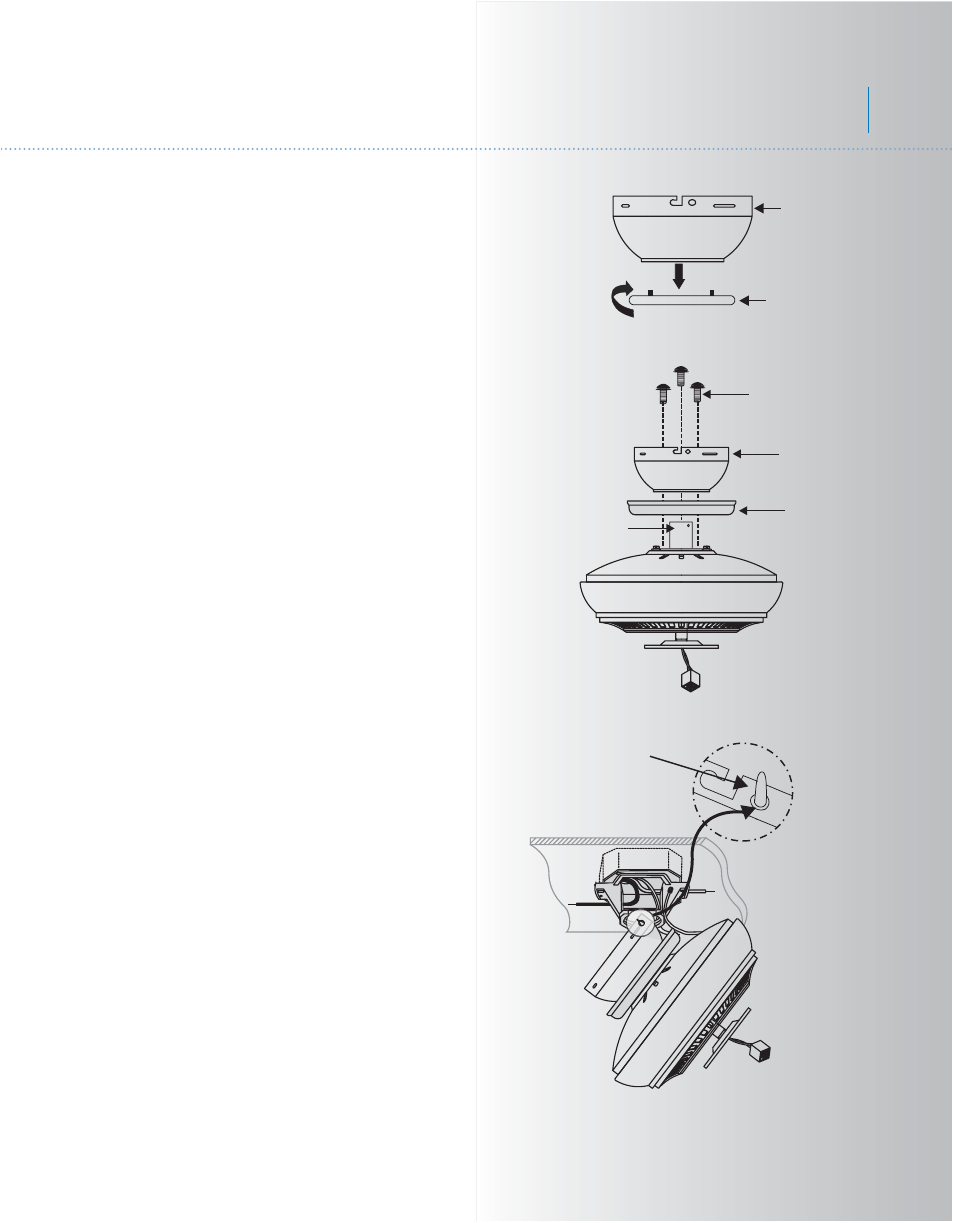

Fig. 11
Fig. 12
Fig. 13
1. Remove the decorative canopy cover from
the canopy. (Fig. 11)
2. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig. 6.
3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Fig. 6)
4. Tighten the two screws on the outlet box
securely.
5. Place the rubber gasket over the remaining
three screws, route the wires exiting the top of
the fan motor through the canopy ring (make
sure the slot openings of the ring are on top).
then proceed to place the ceiling canopy over
the collar at the top of the motor. Align the
mounting holes with the holes in the motor and
fasten using the screws and lock washers
provided. (Fig. 12).
6. Tighten the mounting screws securely.
(Fig. 12)
WARNING: Failure to completely tighten the
three screws in step 6 could result in fan
loosening and possibly falling.
7. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is fully
locked into hook as shown in Fig. 13.
Canfield TM
CLOSE-TO-CEILING INSTALLATION
Screw and
Lockwasher
Canopy
Collar
Canopy ring
Canopy cover
Canopy
Hook
