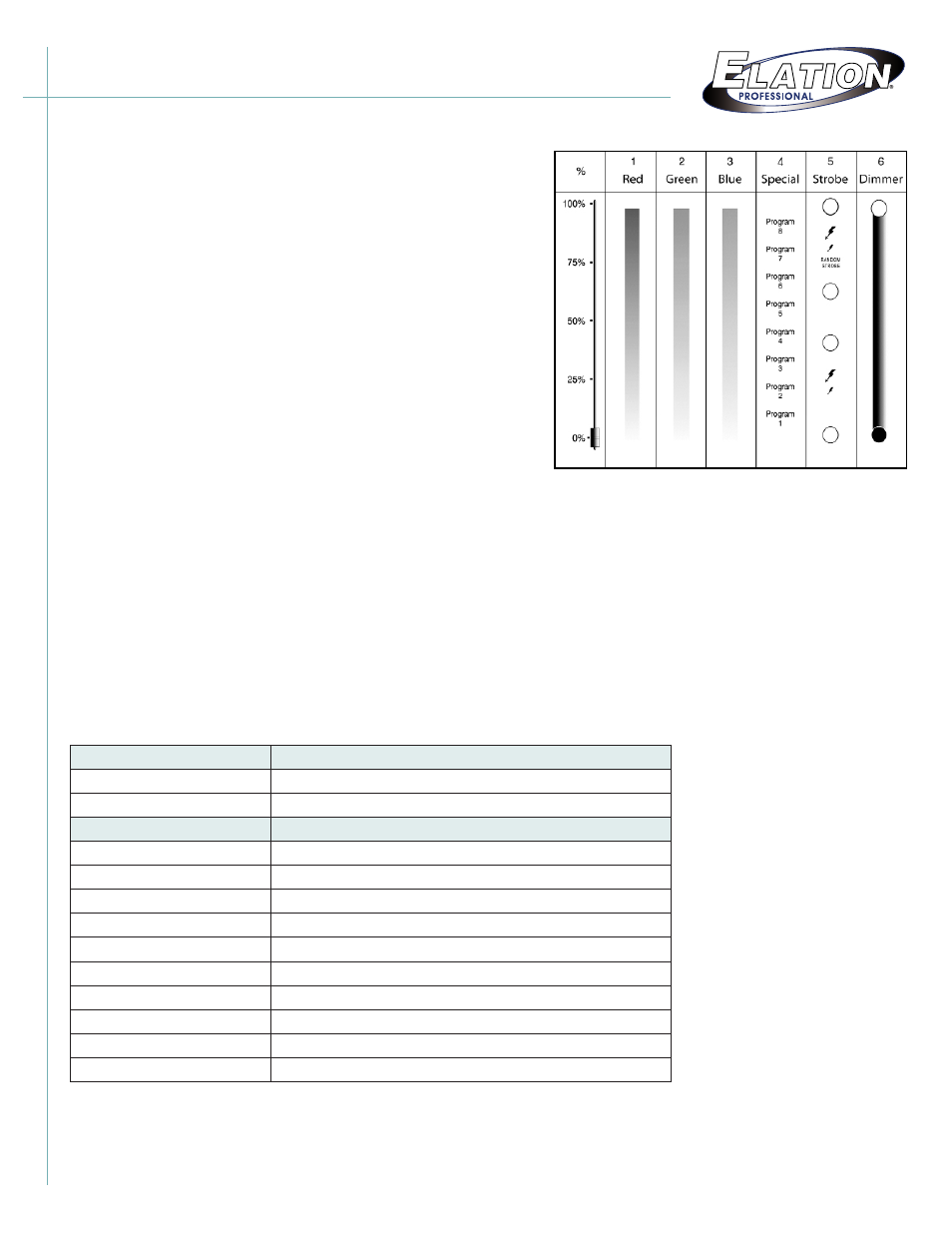

DMX TRAITS
3 Channel Mode:
Channel Value
Function
1 0 - 255 Red ( 0 - black, 255 - 100% red )
2 0 - 255 Green ( 0 - black, 255 - 100% green )
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 Channel Mode:
Channel Value
Function
1 0 - 255 Red ( 0 - black, 255 - 100% red )
2 0 - 255 Green ( 0 - black, 255 - 100% green )
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Dimming ( 0 - 100% ) ~ normal operation
0 - 255 Speed ( min to max ) ~ when running
built-in programs on channel 4
6 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red )
2 0 - 255 Green ( 0 - black, 255 - 100% green )
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Internal programs
5 0 - 255 Strobe
6 0 - 255 Dimming ( 0 - 100% ) ~ normal operation
0 - 255 Speed ( min to max ) ~ when running
built-in programs on channel 4
Product Order Code Description
DLED 108 IP Black DLED 108
DLED 108 IPS Silver DLED 108
Accessories Order Code Description
PRO CLAMP Mounting Clamp
DLED-LK25 25° Lens Kit
DLED-LK45 45° Lens Kit
80409030011 Data ext cable DLED 108IP 3 meter length
80409030026 Power link cable DLED 108IP 3 meter length
80409030054* DLED 120V Power In 3P IP Cable 1.8M
80409030065* DLED DMX Out 3P Female XLR/5P Male IP 3M
80409030066* DLED DMX In 3P Male XLR/5P Female IP 3M
80409030069 Data extension cable for DLED 10IP 10 meter length
80409030070 Power link cable for DLED 108IP 10 meter length
*Included with unit
