S B 8 5 0 z R S p e c i f i c a t i o n s
group · S p r e l i m i n a r y
FEATURES
•

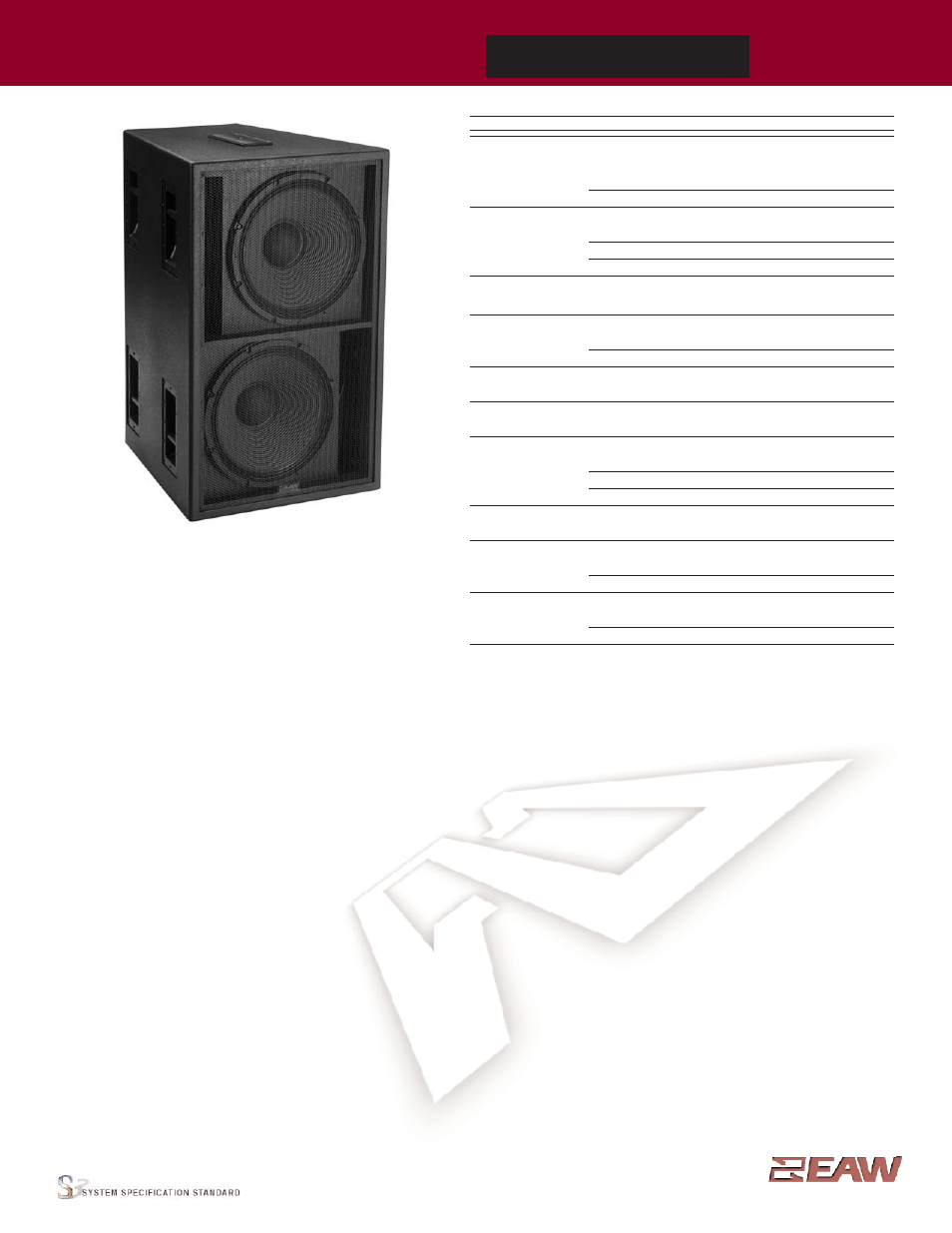

Dual 18 in subwoofer
•
SB1000 performance in an 850 format enclosure
•
Stacking enclosure without fly-track hardware
•
Companion to KF850z full-range
DESCRIPTION
The SB850zR incorporates recently developed advances in
loudspeaker technology and performance by EAW Engineers. A
deeper enclosure was designed to allow use of the same driver used
in the legendary SB1000. This significantly enhances the SB850zR
performance, providing the same high impact and low frequency
response of the SB1000 but in an enclosure footprint matched to the
KF850z. The "z" enclosures incorporate a stacking pad on top that
mates with a recess in the bottoms. This facilitates stacking the
SB850zR with the KF850z.
SB850zR DSP processor settings are available online for EAW's
MX8750 as well a select group of other popular touring processors.
DSP settings have been engineered to acoustically integrate the
SB850zR with the KF850z.
SB850 applications continue to include: concert tours, corporate
events, large theaters, stadiums, cathedrals, large live music clubs.
Six year warranty.
DUAL 18-IN SUBWOOFER
See TABULAR DATA notes for details
CONFIGURATION
Subsystem
Transducer Loading
Sub 2x 18 in cone Vented
Operating Mode
Amplifier Channels External Signal Processing
Single amp LF1/LF2 DSP w/1-way filters
Dual amp LF1, LF2 DSP w/1-way filters
PERFORMANCE 1
Operating Range 30 Hz to 150 Hz
Nominal Beamwidth
Horz 360°
Vert 360°
Axial Sensitivity (whole space SPL)
LF1/LF2 100 dB 30 Hz to 150 Hz
Peak Sensitivity (whole space SPL)
LF1/LF2 109 dB 20 Hz to 20 kHz
Input Impedance (ohms)
Nominal Minimum
LF1/LF2 4 4.1 @ 33 Hz & 130 Hz
LF1, LF2 8 8.2 @ 33 Hz & 130 Hz
Recommended High Pass Filter
High Pass =>20 Hz, 24 dB/octave Butterworth
Accelerated Life Test 2
LF1/LF2 89 V 2000 W @ 4 ohm
LF1, LF2 89 V each 1000 W each @ 8 ohm
Calculated Axial Output Limit (whole space SPL)
Average Peak
LF1/LF2 133 dB 139 dB
ORDERING DATA
Description Part Number
SB850zR Black 0006816
Optional Accessories
KF850z/SB850z caster pallet
0007683
KF850z/SB850z caster pallet kit 0008835
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : “HOW MUCH AMPLIFIER POWER DO I NEED?” on the EAW web site.
