POWXG6010

P a g e

| 6

www.varo.com

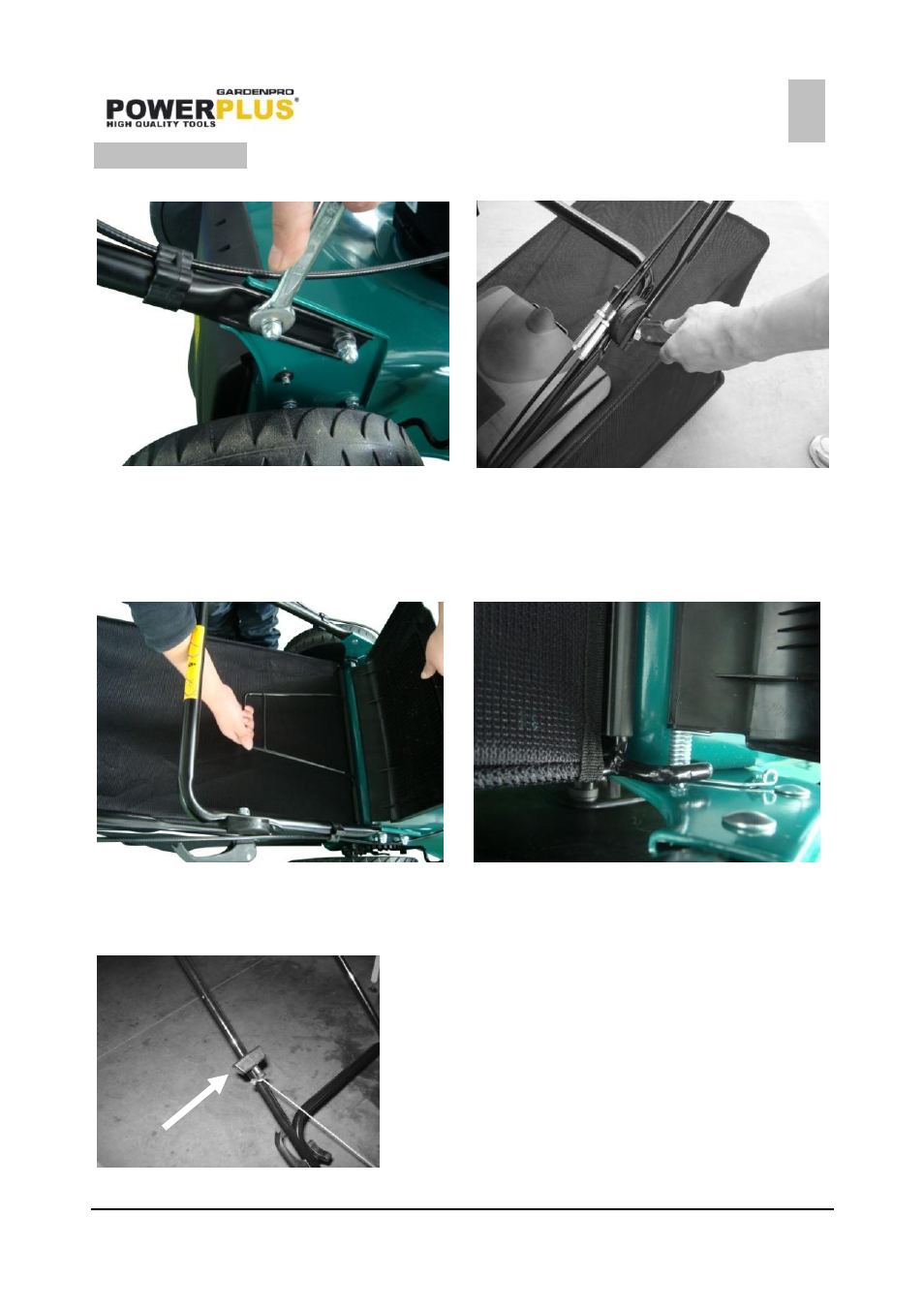

5 ASSEMBLY

5.1

Folding handle

Fig 1a

Fig 1b

 Insert the nether railings into the holes of unit body. (Fig. 1a)
 Lift the locking lever to release the handle bars for folding.(Fig. 1b)
 Push the locking lever closed to lock the handle bars in the operating position.
 Adjust the tension by turning the lock nut with a suitable spanner.

5.2

Mounting and dismounting the grass bag

Fig 2A

Fig 2B

To fit: Raise flap , grasp handle and position bag against rear of mower. (Fig. 2A, Fig. 2B)

To remove: grasp rear cover, lift flap, remove catcher.

5.3

Starter handle

Fig 3

Move the starter handle from the engine to
the rope guide. (Fig. 3)

Rope
Guide
