- 8 -

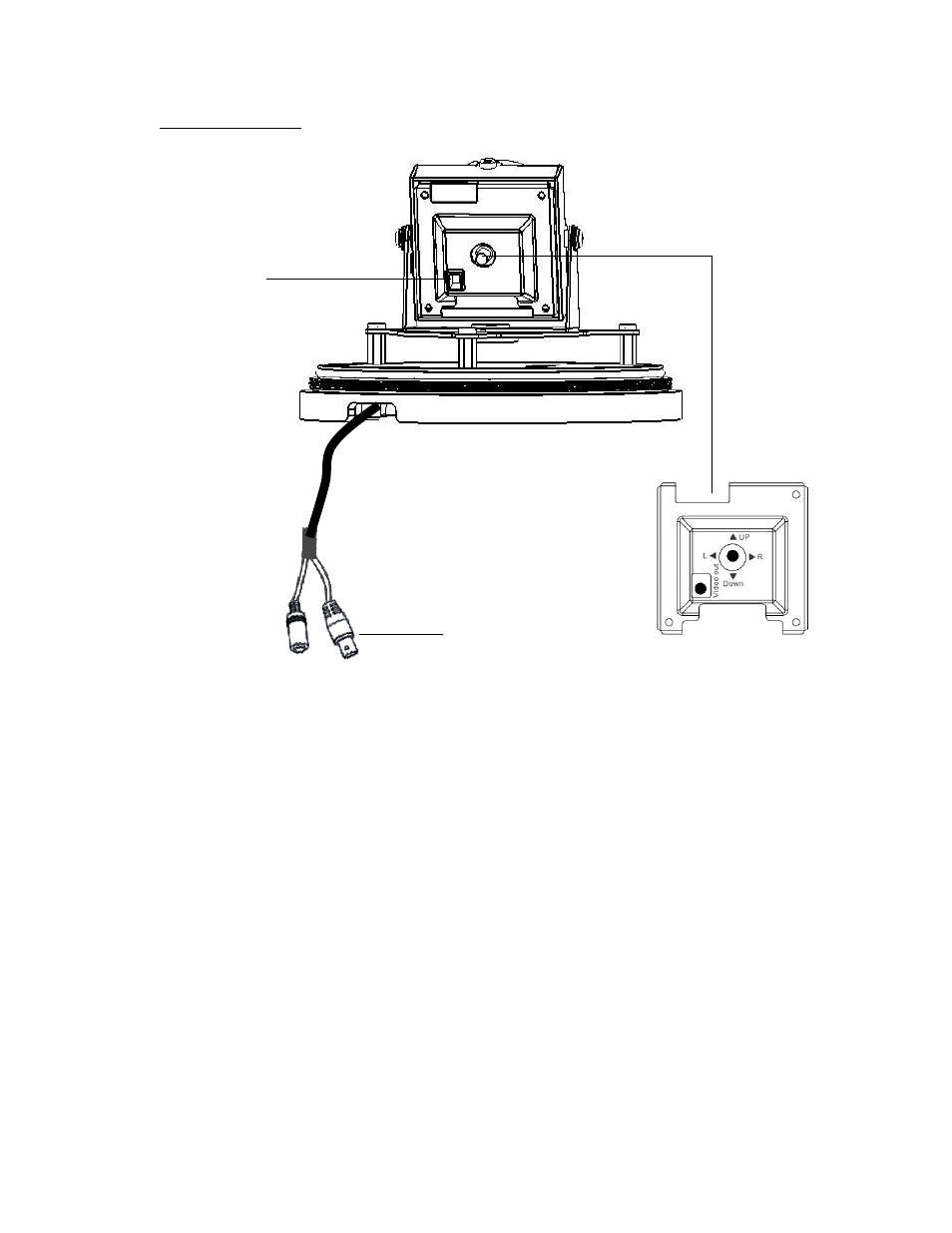

Back Panel Layout:
(1) External Light Sensor
External Light sensor is used to detect the lighting level the environment. (The light sensor
is “down” when the internal camera module is properly positioned).
(2) Zoom Ring
To adjust the viewing angle, loosen the zoom ring knob. Turn the ring toward to Zoom
out or to Zoom in as necessary, and re-tighten when the adjustment is complete.
(3) Lens
The included vari-focal, DC iris lens allows manual adjustment of the field of view (zoom & focus).
(4) Focus Ring
To set the focus, and loosen the focus ring knob, and turn the ring toward or as
necessary, and re-tighten when the adjustment is complete.
(5) Test Video Output Connector
(6)
(7)
(5)
