Do not expose the camera to water or moisture while open during installation, nor try to operate
it while open
in wet areas. Once properly installed and sealed, the dome is IP66 rated against
water infiltration.
3.1 Mounting Camera
3.1 .1 Drill the Holes
1. Paste the drilling template on the ceiling or wall
2. Drill 4 holes, 1 for the power/video cable, 3 for screws A, B and C.

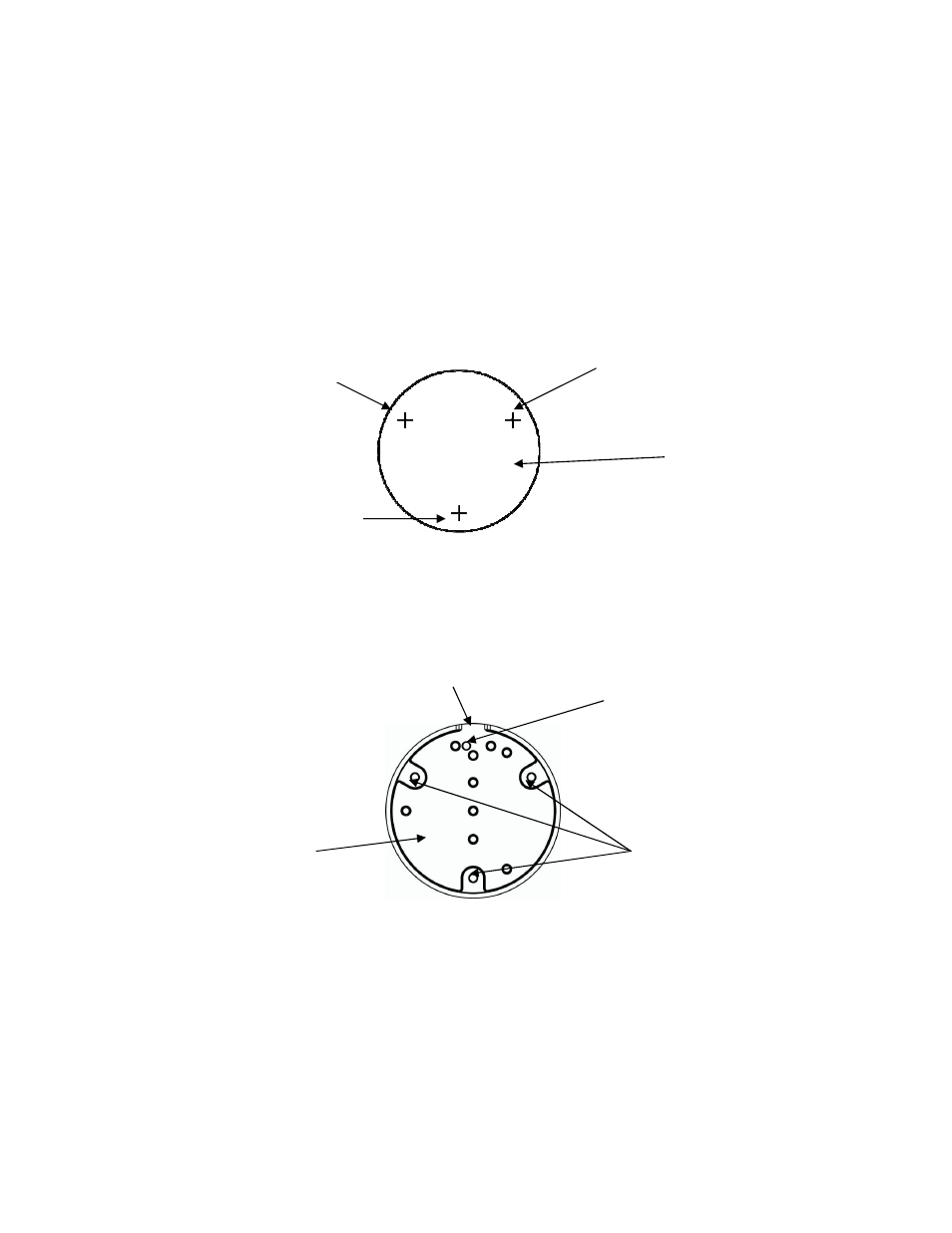

Installation sticker
Screw hole A
Screw hole B
Screw hole C
Power/Video Cable
Camera base
Screw A,B,C
Wire outlet hole for
Surface mounting
