22 Setting Up the TV
Satellite Receiver Connection
If you’ll also be attaching a VCR to the TV, you need to use a different connection method so
you can record TV programs. See “VCR and Satellite Receiver Connection” on page 26.
1 Turn off and unplug your TV and your satellite receiver.
2 Connect the satellite antenna cable coming into your house to the Satellite In connector
on your satellite receiver.
3 Connect one end of an S-Video cable to one of the S-Video connectors on the back of
the TV or to the one on the front of the TV beneath the connector cover.
4 Connect the other end of the S-Video cable to the S-Video connector on your satellite
receiver.
5 Connect one end of a standard, red/white audio cable to the corresponding Video
Inputs R and L Audio connectors on the back or front of the TV.
6 Connect the other end of the audio cable to the R and L Audio Line Out connectors on
your satellite receiver.
7 Plug your TV and satellite receiver back into their power outlets.
Note
If your satellite receiver
doesn’t have an S-Video
connector, you can
connect a video cable
(yellow) to the Video
connectors instead of the
S-Video cable using these
instructions.
It’s best to connect your
satellite receiver to the
S-Video connectors on the
back of the TV to free up
the S-Video connector on
the front to connect a
camcorder.

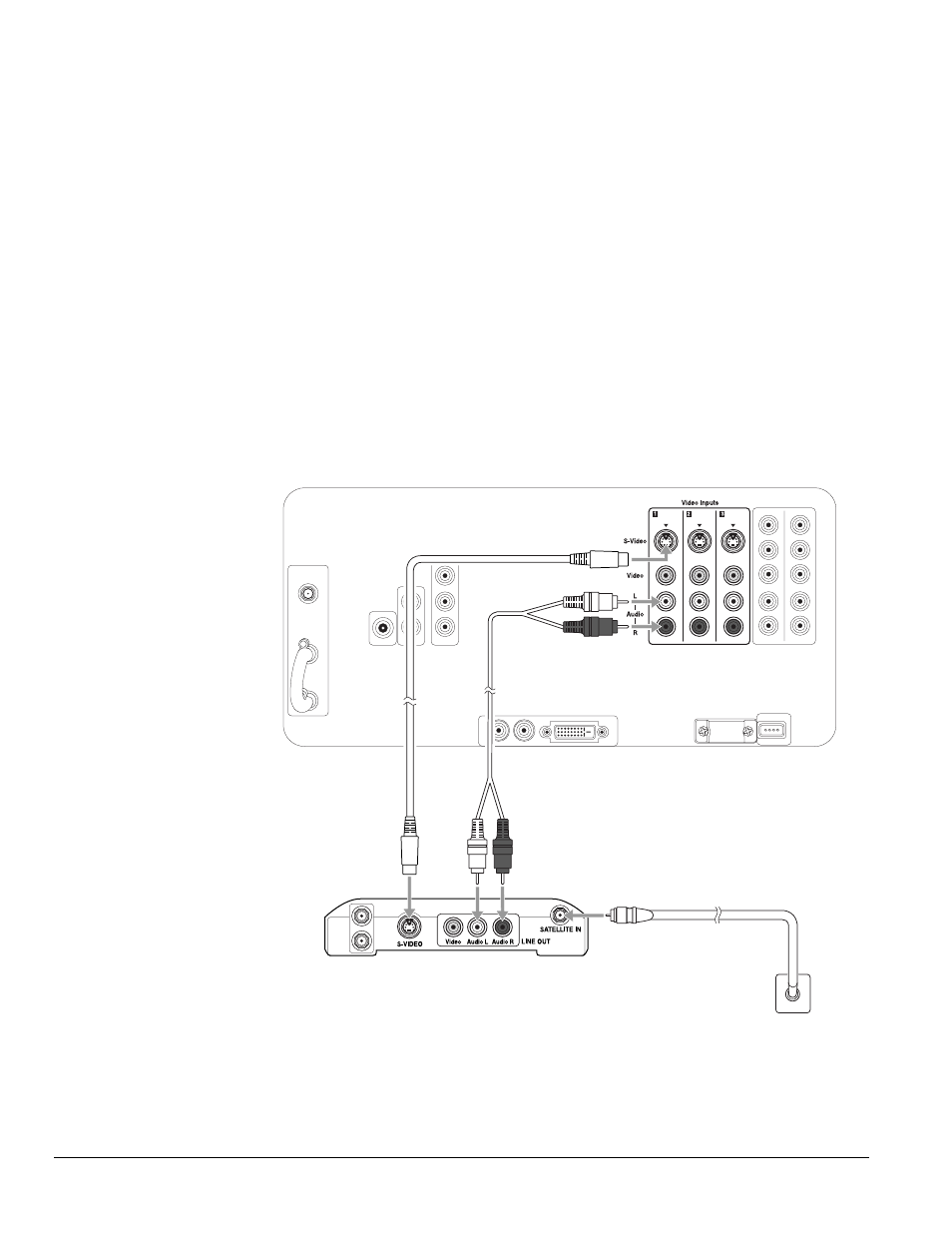

Audio cable S-Video cable
Satellite receiver
Wall jack
