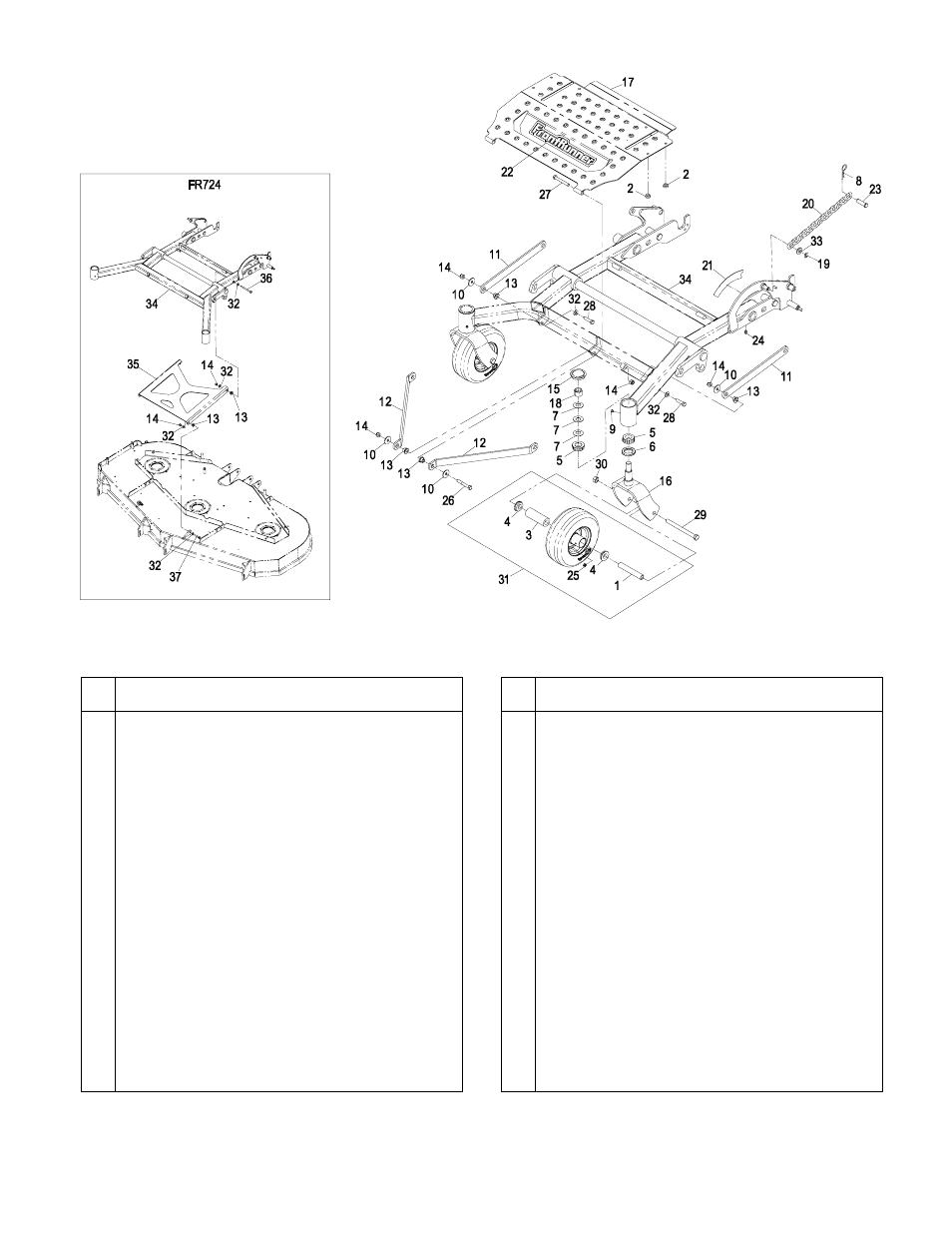

FRONT FRAME GROUP
8
Item
Part No.
Description
Qty.
1 1-513547 Spacer, Front Caster.............................. 2
2 1-513658 Bumper .................................................. 6
3 1-513809 Bearing, Roller ....................................... 2
4 1-513810 Bushing, Flanged ................................... 4
5 1-543509 Cone, Bearing Tapered Roller................ 4
6 1-543511 Seal, Grease.......................................... 2
7 1-633508 Washer, Spring Disc .............................. 6
8 1-806005 Hairpin, Cotter........................................ 2
9 1-811010 Plug ....................................................... 2
10 63-8410 Washer .................................................. 4
11 103-3898 Flat, Strut ............................................... 2
12 103-3899 Flat, Strut Angle ..................................... 2
13 103-3900 Spacer, Strut.......................................... 4
14 3296-39 Nut, Nyloc 3/8-16 (52” & 60”) ................. 5
3296-39 Nut, Nyloc 3/8-16 (72”)........................... 11
15 103-4882 Cap, Grease .......................................... 2
16 103-9712-01 Wld, Caster Fork.................................... 2
17 109-2379 Asm, Front Cover W/Decal .................... 1
18 3296-51 Nut, Nyloc 3/4-10 ................................... 2
19 32120-47 Ring, Retaining ...................................... 2
Item
Part No.
Description
Qty.
20 109-0636 Chain, Weight Transfer.......................... 2
21 109-2993 Decal, Cutting Height............................. 1
22 109-2114 Decal, FrontRunner ............................... 1
23 283-40 Pin, Clevis 1/2 x 1 3/4............................ 2
24 302-19 Zerk, 1/4-28 Str ..................................... 4
25 302-61 Zerk, 45° 1/4-28..................................... 2
26 323-12 Screw, HH 3/8-16 x 2 1/2....................... 1
27 323-13 Screw, HH 3/8-16 x 2 3/4....................... 2
28 323-8 Screw, HH 3/8-16 x 1 1/2....................... 2
29 325-20 Screw, HH 1/2-13 x 6............................. 2
30 3296-45 Nut, Hex 1/2-13 ..................................... 2
31 103-2171 Kit, Tire & Wheel Asm W/ Spacer ......... 2
32 3256-24 Washer, 3/8 SAE................................... 2
33 3256-26 Washer, 1/2 SAE................................... 2
34 109-4574 Asm, Front Frame W/Decal FR524 ....... 1
109-4575 Asm, Front Frame W/Decal FR604 ....... 1
109-5408 Asm, Front Frame W/Decal FR724 ....... 1
35 109-4455-01 Strut, Deck FR724 ................................. 1
36 323-16 Screw, HH 3/8-16 x 4............................. 2
37 323-9 Screw, HH 3/8-16 x 1 3/4....................... 2
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
