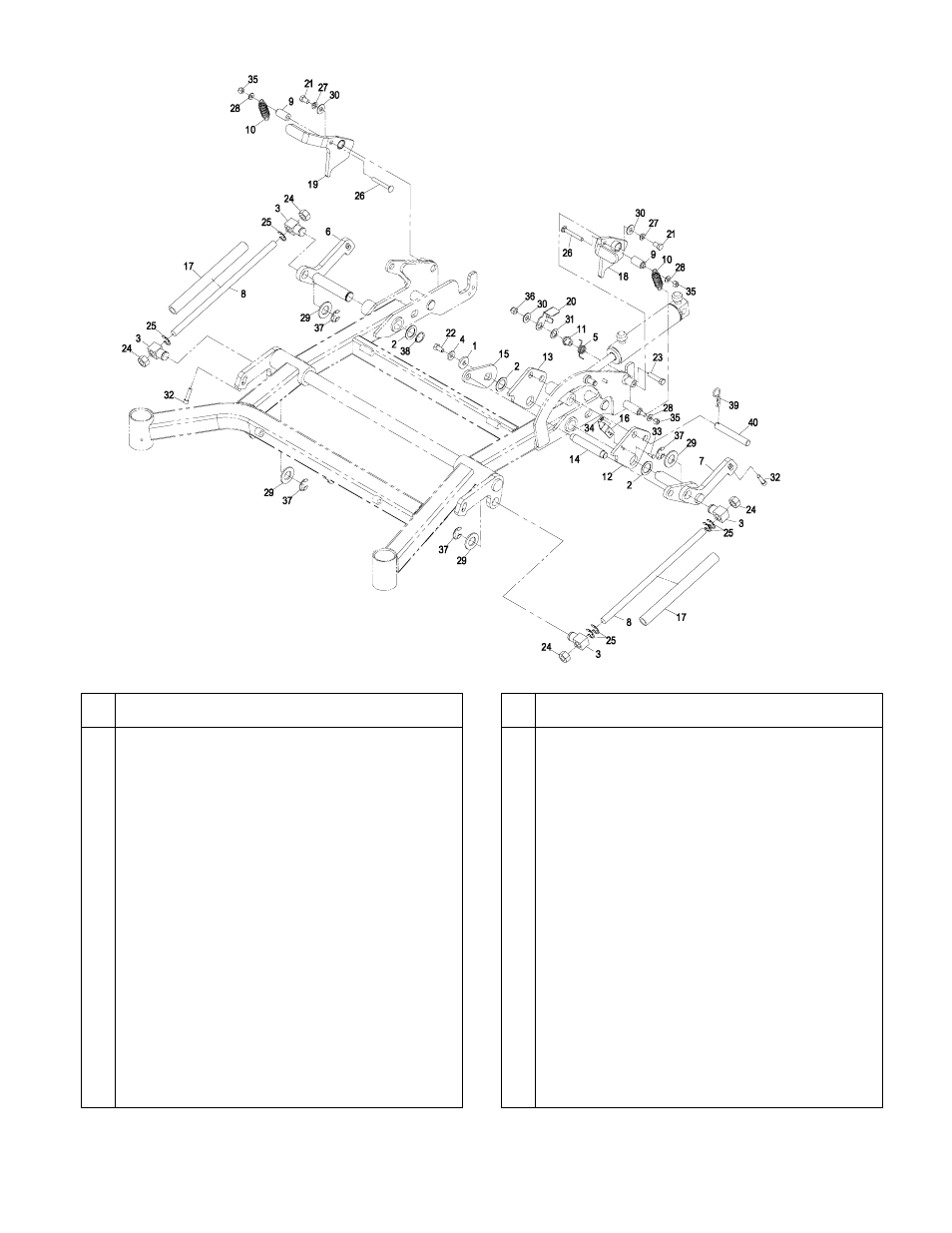

FRONT FRAME GROUP (cont.)
9
Item
Part No.
Description
Qty.
1 1-373034 Washer .................................................. 1
2 1-523157 Washer .................................................. 3
3 1-633441 Swivel, Deck Mount Rear ....................... 4
4 98-5975 Washer, Spring Disk 3/8 ........................ 1
5 103-8316 Spring, Torsion ...................................... 1
6 103-9699-01 Wld, Decklift Arm ................................... 1
7 103-9708-01 Wld, Decklift Arm ................................... 1
8 103-9710 Rod, Decklift .......................................... 2
9 103-9714 Spacer, Spring Anchor ........................... 2
10 105-1210 Spring-Extension.................................... 2
11 107-0075 Bushing.................................................. 1
12 109-3013-01 Plate, Cylinder Mount............................. 1
13 109-3014-01 Plate, Cylinder Mount............................. 1
14 109-0047 Pin, Decklift Stop ................................... 1
15 109-0340-01 Arm, Deck Lift ........................................ 1
16 109-1896 Arm, Height Indicator ............................. 1
17 109-2065 Tube, Decklift Rod ................................. 2
18 109-2205 Wld, Lock Lever LH ............................... 1
19 109-2206 Wld, Lock Lever RH ............................... 1
20 109-2760 Arm, PTO Switch ................................... 1
Item
Part No.
Description
Qty.
21 323-34 Screw, HH 3/8-16 x 5/8.......................... 2
22 323-4 Screw, HH 3/8-16 x 3/4.......................... 1
23 323-9 Screw, HH 3/8-16 x 1 3/4....................... 1
24 3217-11 Nut, Hex 5/8-11 ..................................... 4
25 32151-48 E-Ring ................................................... 6
26 3230-8 Bolt, Carriage 5/16-18 x 2 1/2 ................ 2
27 3253-5 Washer, Lock 3/8 .................................. 2
28 3256-23 Washer, 5/16 SAE................................. 4
29 3256-29 Washer, 7/8 SAE................................... 4
30 3256-4 Washer, 3/8 Std .................................... 3
31 3256-69 Washer-Flat........................................... 1
32 3274-18 Screw, SH 5/16-18 x 1 1/4 ..................... 4
33 3290-500 Screw, PPH #10-24 x 5/8 ...................... 2
34 3296-2 Nut, Nyloc #10-24.................................. 2
35 3296-29 Nut, Nyloc 5/16-18................................. 4
36 3296-39 Nut, Nyloc 3/8-16................................... 1
37 32151-103 E-Ring ................................................... 4
38 32151-29 Ring, Retaining ...................................... 1
39 1-806005 Hairpin, Cotter ....................................... 1
40 109-0045 Pin, Cylinder Mount ............................... 1
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
