Excalibur ® P90 Zero Clearance Direct Vent Gas Fireplace 50
164
141
156
FLUSH DOOR
132
135
136
148
148
158
SINGLE DOOR
151
DOUBLE DOORS
161
146
162
155
168
167
157
163
163
164
159
154
157 148
148
149
149
155
155
144
143
155
159
152
153
157
146
146
142
145

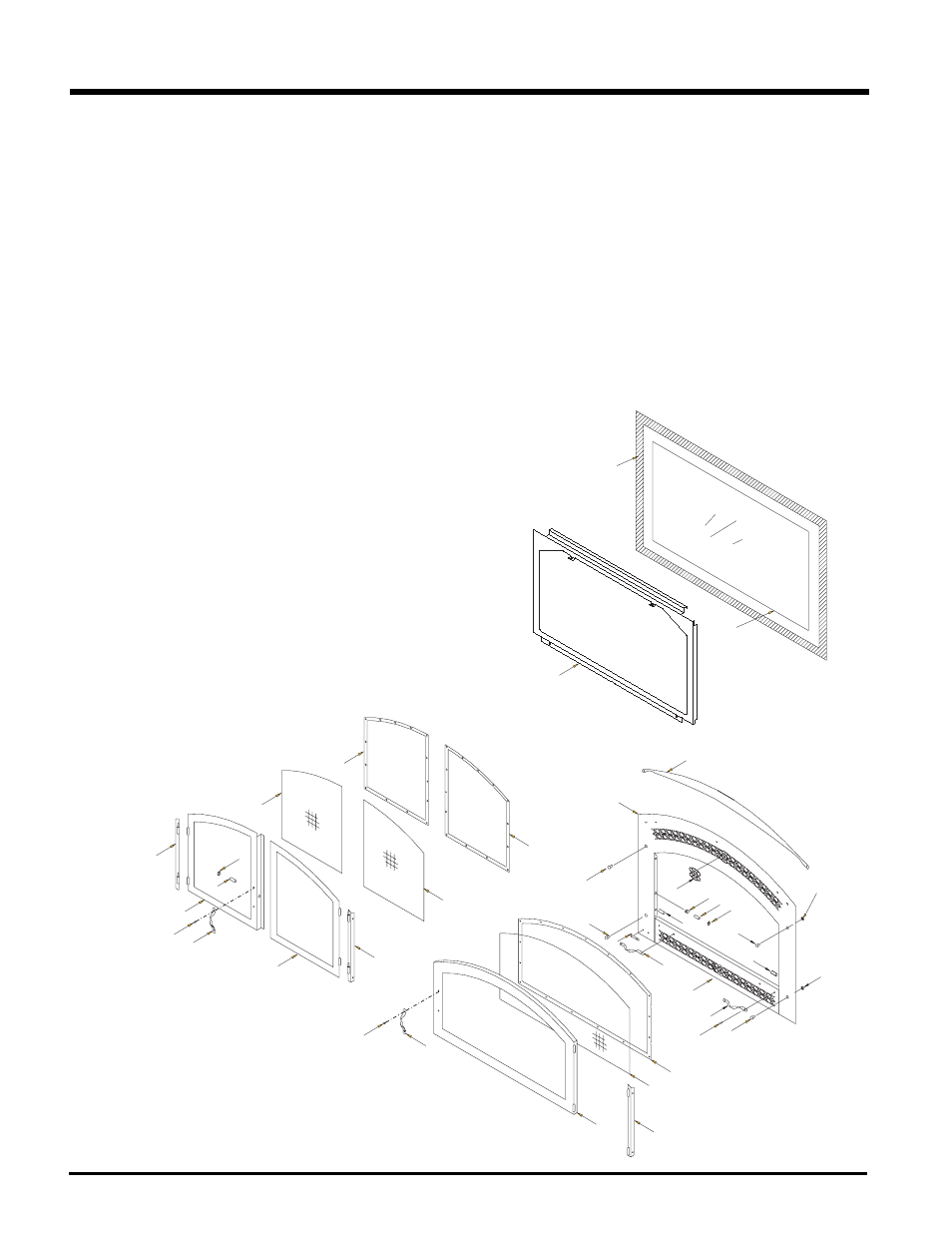

FLUSH FRONT ACCESSORIES
790-518 Door Assembly - Complete
132) 790-137 Flush Door Frame
135) 940-326/P Glass (Flush)
136) 936-155
Glass Gasket (Tadpole)
904-691 U-Clip
790-920 Surround - Black - Complete
790-922 Surround - Gold - Complete
790-914 Surround - Antique Gold - Complete
790-916 Surround - Antique Nickel - Complete
790-918 Surround - Antique Copper - Complete
141) * Surround - Faceplate - Excalibur ®
142) * Surround - Louver
143) 904-621 Hole Plug
144) 790-122 Emblem
145) * Surround - Hood
146) * Handle
148) 904-719 Rivet-67-5/16 x 1/2 Black
904-719/G Rivet-67-5/16 x 1/2 Gold
149) 904-720 Pushnut Fastener 5/16" hole
790-924 Single Screen Door - Complete - Black
790-926 Single Screen Door - Complete - Gold
790-951 Single Screen Door - Complere - Antique Gold
790-952 Single Screen Door - Complete - Antique Nickel
790-953 Single Screen Door - Complete - Antique Copper
151) * Single Screen Door Frame
152) * Mesh Screen - Single Door
153) * Retaining Plate - Single Door
154) * Handle - Single Door
155) 904-721 Push-Fit Ball Plunger
156) * Door Mounting Bracket - Right
157) * Carriage Bolt
158) 948-221 Logo Plate
159) 904-724 Plunger Clamp
PARTS LIST
790-930 Double Screen Door - Complete - Black
790-932 Double Screen Door - Complete - Gold
790-941 Double Screen Door - Complete - Antique Gold
790-942 Double Screen Door - Complete - Antique Nickel
790-943 Double Screen Door - Complete - Antique Copper
161) * Double Screen Door Frame - Right
162) * Double Screen Door Frame - Left
163) * Mesh Screen - Double Door
164) * Retaining Plate - Double Door
167) * Door Mounting Bracket - Right
168) * Door Mounting Bracket - Left
*Not available as a replacement part.
Part # Description Part # Description
