SPECIFICATIONS AS625e

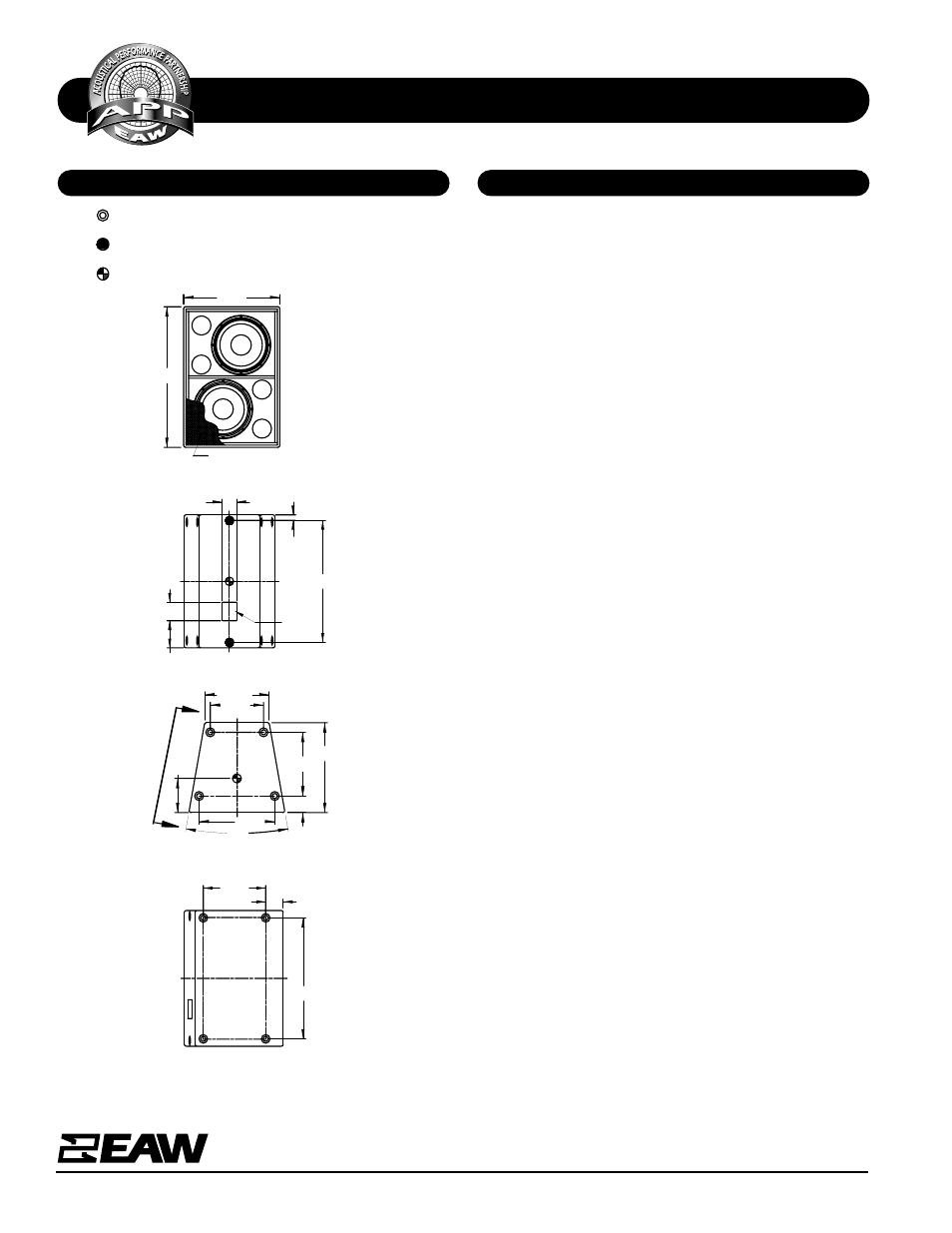

DIMENSIONAL DRAWING A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 [email protected] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. AS625e/2 pp October 2001 Printed in USA
INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE
(PI ANGLE).
INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE
(NUT PLATE).
SYMBOL INDICATES CENTER OF BALANCE.
FRONT
36.00
24.62
GRILLE PARTIALLY SHOWN
BACK
(1.50)
CL
CL
7.34
4.00
33.00
INPUT
5.00
TOP/BOTTOM
8.75
23.00
4.24
16.31
CL
A
13.64
19.39
(16.51)
A 20°
16.56
CL
4.63
32.10
20°
509140 (0)
5/22/01
The low frequency loudspeaker system shall incorporate 2x
15-in LF transducers that shall be mounted in a vented enclo-
sure tuned for optimum LF response.
System frequency response shall vary no more than ±3 dB
from 57 to 500 Hz measured on axis. The system shall produce
a Sound Pressure Level (SPL) of 100 dB SPL on axis at 1 meter
with a power input of 1 Watt, and shall be capable of pro-
ducing a peak output of 136 dB SPL on axis at 1 meter. The
system shall handle 1200 Watts of amplifier power (continu-
ous) and shall have a nominal impedance of 4 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of multi-ply, void-free, cross-grain-lami-
nated, exterior grade, Baltic birch plywood and shall employ
extensive internal bracing. It shall be finished in wear-resist-
ant textured black paint. Input connector shall be 2-contact
terminal strip. Eighteen (18) 3/8"-16 threaded mounting/sus-
pension points (4 each top, bottom and sides, 2 on back)
shall be provided. The front of the loudspeaker shall be cov-
ered with a powder coated perforated steel grille.
The low frequency loudspeaker shall be the EAW model
AS625e.
SIDE VIEW (VIEW A-A)
Manufacturing tolerances are +/- 0.13 and +/- 1°
