SPECIFICATIONS
PRODUCT DATA
Model Name
VR61
Part Number
Black: 0010496 White: 0011349
File creation date
7/29/2004
SPECIFICATION SHEET TABULAR DATA
Descriptive Data
Ways
Type
Mode
2-way
Full-Range
Single Amp
CONFIGURATION
SubsystemTransducer
Loading
LF
1x6 in cone — Sealed
HF
1x1 in exit compression driver — Horn-loaded
PERFORMANCE
Operating Range
85 Hz to 20000 Hz
Nominal Beamwidth (rotatable)
Horizontal
90°
Vertical
60°
Axial Sensitivity (whole space SPL)
90 dB
85 Hz to 20000 Hz
Peak Sensitivity (whole space SPL)
93 dB
20 Hz to 20 kHz
Input Impedance (ohms)
Nominal
Minimum
8
3.6 @ 2660 Hz
Recommended High-Pass Filter
High Pass
=> 75 Hz, 24 dB/octave Butterworth
Power Handling
150 W
35 V @ 8 ohms
Calculated Maximum SPL
Average
Peak
112 dB
118 dB

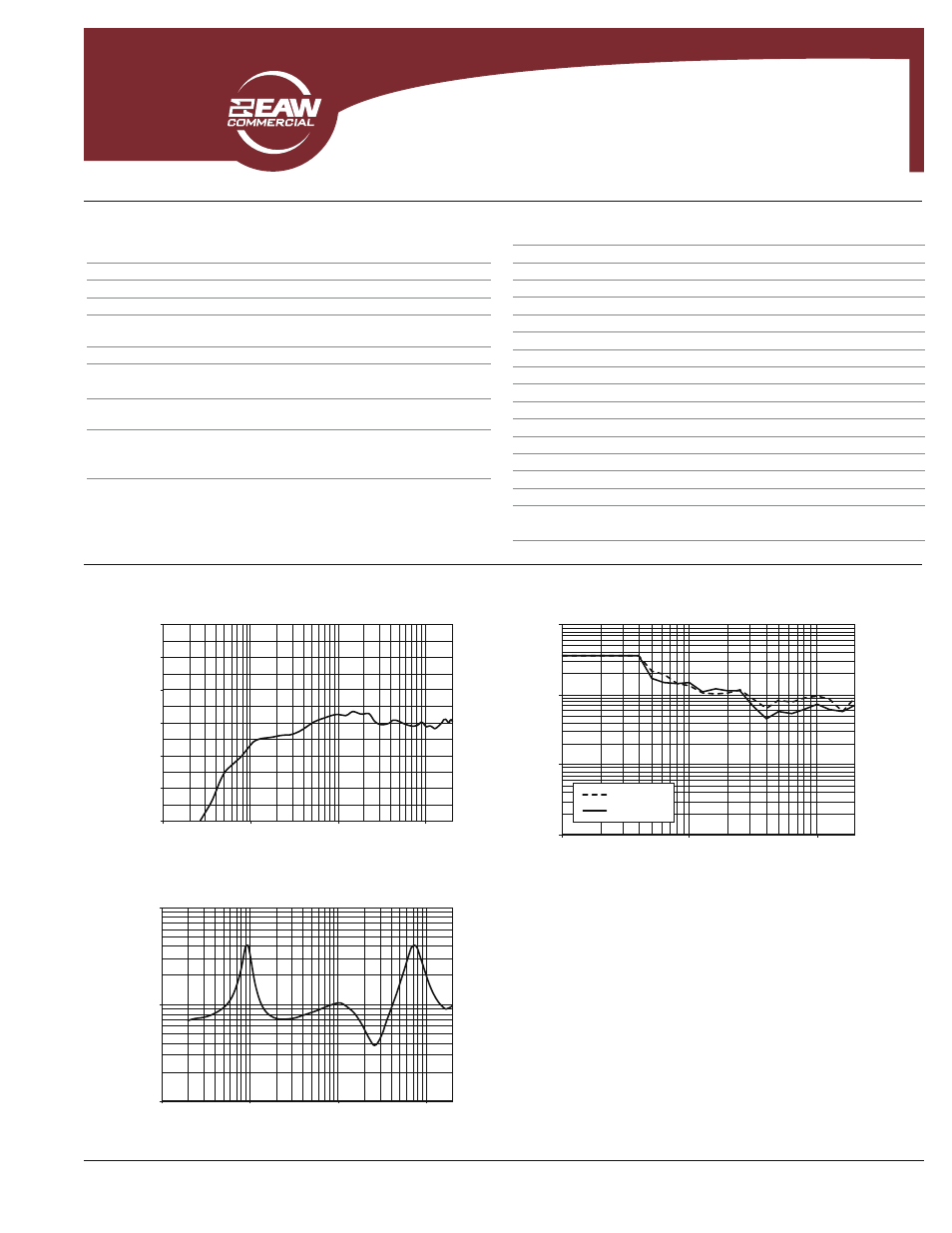

VR61 FREQUENCY RESPONSE ON-AXIS
