Specifications subject to change without notice.

Screen Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 2500 ANSI Lumens
Illumination Uniformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85%
Size of Color Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.7 Million
Contrast Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450:1 (Full ON/OFF)
Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 Watt UHP
Estimated Lamp Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 3000 Hours of Use
Imaging System . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.63” PolySilicon active matrix TFT Panels x 3
Screen Pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1024 x 768 in stripe configuration
Total Pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,359,296 ((1024 x 768) x 3)
Lens Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Zoom and Focus
Lens Specs . . . . . . . . . . . . . . . . . . . . . Speed: f:1.65~1.81; FL: 0.886~1.063 in. (22.5~27 mm)
Lens Ratios . . . . . . . . . . . . . . . . . . . . . . . . . . . Zoom Max:Min: 1.2:1; Throw:Width: 1.72~2.07:1
Image Diagonal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40~300 in. 102~762 cm)
Image Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.67.~ 20 ft. (0.84~6.1 m )
Throw Distance (Wide~Tele) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6~41.3 ft. (1.4~12.6 m.)
Front Elevation / Maximum Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 10° up / +/- 10°
Anti Keystone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fixed Image Offset, Ratio (Top:Bottom) 9:1
Vertical Keystone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Digital: up to 20° up or down
Scanning Frequency . . . . . . . . . . . . . . . . . . . . . . . Auto: H Sync. 15-100kHz; V Sync. 50-100Hz
Dot Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 MHz
Image Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Normal, Reversed, Inverted
Local Control / Power Management . . . . . . . . . . . . . . . . . . . . . . . Full Function / Auto Shutdown
Remote Projector Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wireless (Infra Red) x 1
SlideShow Page Up / Page Down Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB type B x 1
Service Port (for RS-232 control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mini DIN 8 Pin x 1
Computer Native Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1024 x 768 (XGA)
Computer: Compatibility . . . . . . . UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA & MAC
Computer: Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600x1200 through 640x480
Computer: Higher Resolutions . . . . . . . . . . . . . . . . . . . Displayed panned or Smart Compressed
Computer: Lower Resolutions . . . . . . . . . . . . . . . . . . . . . . Displayed normal or Smart Expanded
Video Compatibility . . . . . . . . . . . . . . . . . . . . NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video HD Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . 480i/p, 575i/p, 720p, 1035i, 1080i
Formats Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Normal 4:3 and Wide Screen 16:9
Video: Image Sizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Video Scaling Technology
Image Signal Inputs:

1. Computer In 1/Component In (with optional adapter): . . . . . . . . . . . . HD15 x 1
2. Computer In 2 / Monitor Out: (switchable): . . . . . . . . . . . . . . . . . . . .

HD15 x 1

3. Video In: . . . . . . . . . . . . . . . . . . . . . . . . RCA x 1 (Composite) / S-Video x 1(Y/C)

Audio Signal Inputs:

1. Computer 1 & 2 / Component: . . . . . . . . . . . . . . . . . . . . . Stereo: MiniStereo x 1
2. Composite/S-Video: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA x 2 (L&R)

Audio: Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mono: 1 Watt RMS
Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stereo: MiniStereo x 1 (Variable)
Audio: Built In Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 in. (2.8cm) x 1
Fan Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . as low as 30.5 dBA
Cabinet Size (HxWxD) . . . . . . . . . . . . . . . . . . . 2.7 x 11.6 x 8.2 in. (69.5 x 294.5 x 208 mm.)

(excluding legs and lens)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3 lbs. (2.4 kg)
Packaged Size (HxWxD) . . . . . . . . . . . . . . . . . . 8.0 x 16.3 x 16.7 in. (202 x 413 x 424 mm)
Packaged Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.7 lb (4.4 kg)
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-240V AC, 50/60Hz
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275 ~ 230 Watts
Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 939 BTU (237 KC) ~ 785 BTU (198 KC)
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10’ (3M) Type 3, Detachable
Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, cUL, IEC
Security Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Kensington® Security Slot
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41~95°F (5~35°C)
User Maintenance . . . . . . . . .

Clean Air Filter, Replace Lamp

Warranty: (to the original end-use customer)

Projector . . . . . . . . . . . . . . . 3 Years / 6000 Hour Use* (Parts & Labor to Correct Defects)
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Days (Failed Lamp Replaced Pro-Rata)

* whichever occurs first

SPECIFICATIONS: LC-XB24

INCLUDED ACCESSORIES:
Quick Start Guide. Owner’s Manual on CD-ROM. AC Power Cord.
Lens Cover. VGA-type Computer Input Cable (HD15 ~ HD15).
Wireless Remote Control & Batteries (AA x 2).

OPTIONAL ACCESSORIES:
Soft Carry Bag. Replacement Lamp. Remote Control with Laser
Pointer. USB cable for slideshow Page Up / Page Down.
Component Video Input Cable (HD15~3-RCA). MAC Adapter.
MAC Monitor Cable. DB9~Mini DIN-8 cable for RS-232 control.
Luggage-Style ("wheelie") Carrying Case with Wheels, Telescoping
Handle, and Detachable Computer Compartment. ATA-Style
Shipping Case with Wheels and Telescoping Handle. Ceiling
Mount. Ceiling Post and Plate. 33’ (10m) Extension Cable for
Serial Cable. EZ-250 Local Control. NPC-1 Network Control.

Eiki International, Inc.

30251 Esperanza, Rancho Santa Margarita, CA 92688-2130

Tel: 800-242-3454; Fax: 800-457-3454, E-mail: [email protected]

In Canada, 310 First St.- Unit 2, P.O. Box 156, Midland, ON L4R 4K8

Phone: 800-563-3454, Fax: 800-567-4069 E-mail: [email protected]

http://www.eiki.com

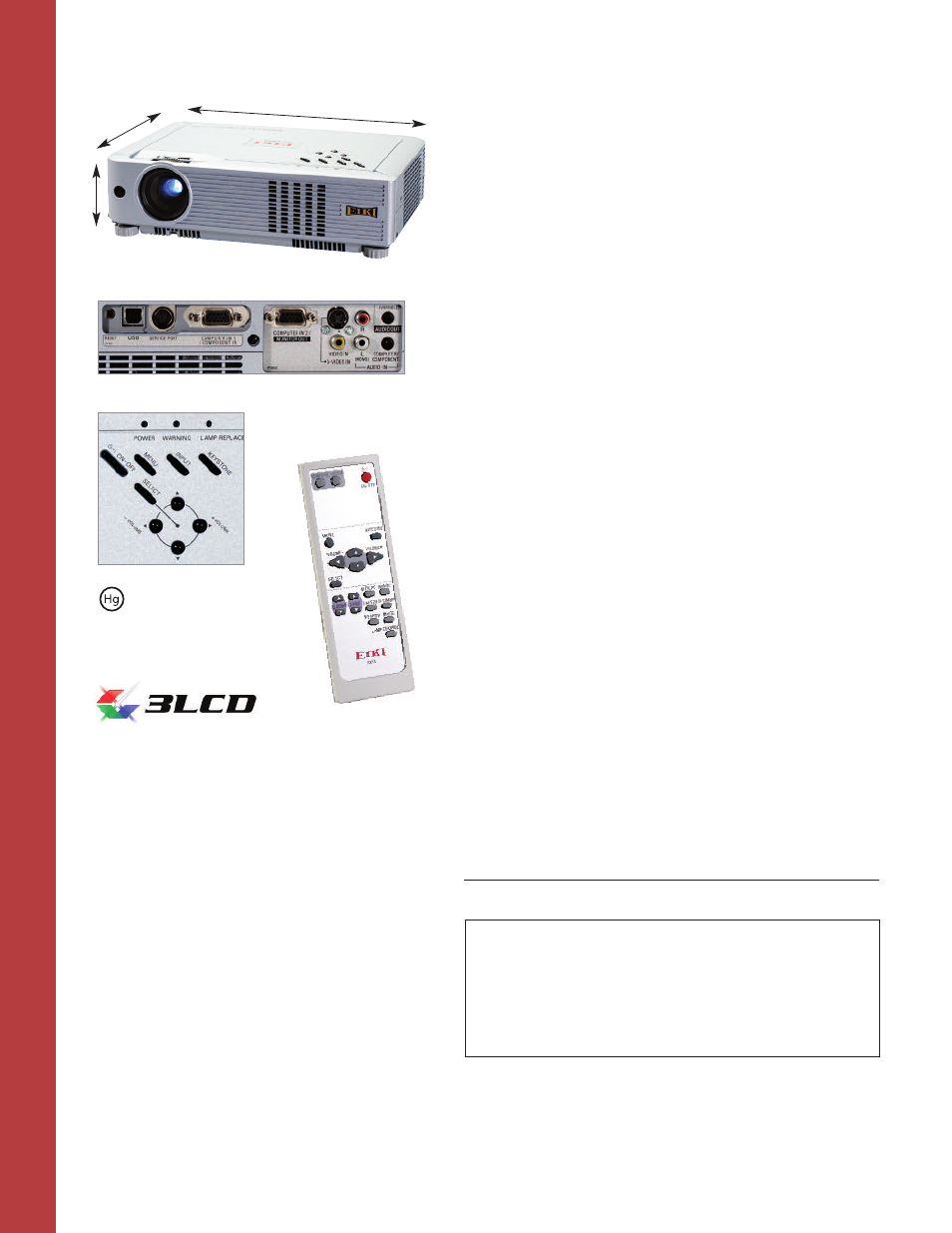

LC-XB24

Talk to your EIKI Dealer... the "pro" in projectors.

Lamp Contains Mercury.
Do not put in trash. Dispose-of-as
Hazardous Waste, according to
the laws in your jurisdiction.

2.7"

8.2"

11.6"

Projectors... and more!
