11 GB
Operation
5. Loosen the clamping lever 16 by turning it clock-
wise and pushing the device down until the route
bit touches the surface of the work-piece.
6. Lock the clamping lever in place 16 by turning
it anti-clockwise.
7. Push the depth stop 12 down until it reaches
the lowest position of the step stop 9 . Move
the index indicator 13 to the position “0“ on
the dial milling depth adjustment 14 .
8. Adjust the depth stop 12 to the desired depth,
tighten the lock screw 11 . Afterwards the index
indicator 13 should no longer be adjustable.
9. Loosen the clamping lever 16 and and lead the
device back up.
Readjust the milling depth
The milling depth can be adjusted with the con-
trol dial
15 .
Loosen the clamping lever 16 by turning it
clockwise and pushing the device down until
the depth stop
12 touches the step stop 9 .
Lock the clamping lever in place 16 by turning
it anti-clockwise.
Set the milling depth with the control dial 15 .
Loosen the clamping lever 16 by turning it clock-
wise and lead the device back up. Check the
milling depth through a further practical test.
Set the milling depth
with the step stop
You can use the step stop 9 with deeper depths in
several steps with less takeoff.
Set the desired milling depth with the lowest
step of the step stop
9 (as described above).
Then set it at higher level for the first attempt.

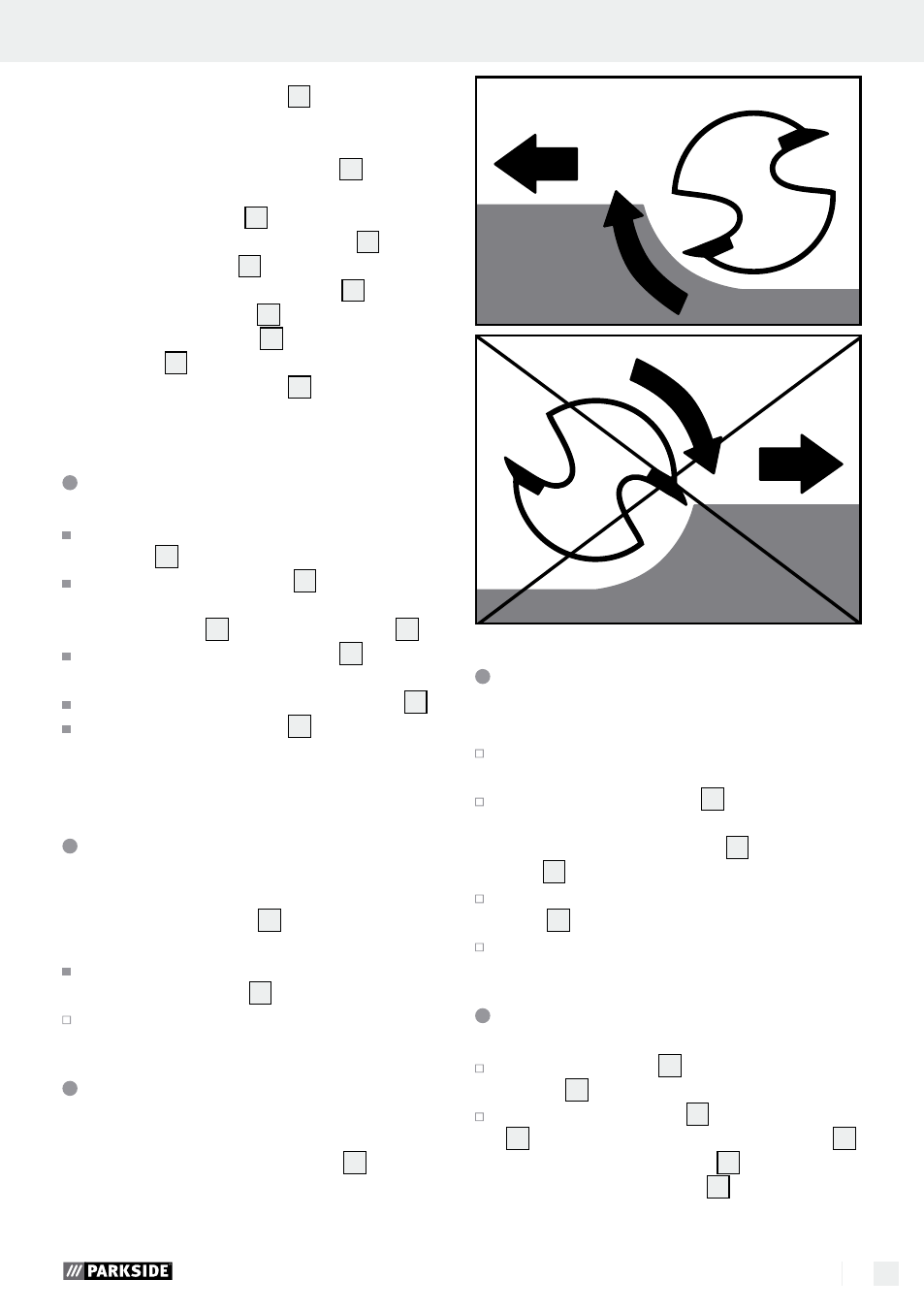

Milling direction
The milling process must always go against the
rotationary direction on the router bit
17 (Counter
rotation).
ATTENTION: When milling in the direction of the rout-
er bit (counter rotation) the device fly out of your hand.
Milling process
Set the milling depth as previously described.
Place the device on the desired work-piece and
switch it on.
Loosen the clamping lever 16 by turning it clock-
wise and pushing the device down until it touches
the surface of the depth stop
12 on the step
stop 9 .
Lock the device into place by turning the clamp
lever
16 anti-clockwise.
Mill with even speed and even pressure (see fig. I).
Set the copy casing
Set the copy casing 26 from below on the slid-
ing bar 8 .
Secure the copy casing 26 with the two screws
22 of the extractor adapter on the base plate 7 .
Ensure that the copy casing 26 is set the right
way round - the thrust ring 25 must be pointing
down (see fig. D).
