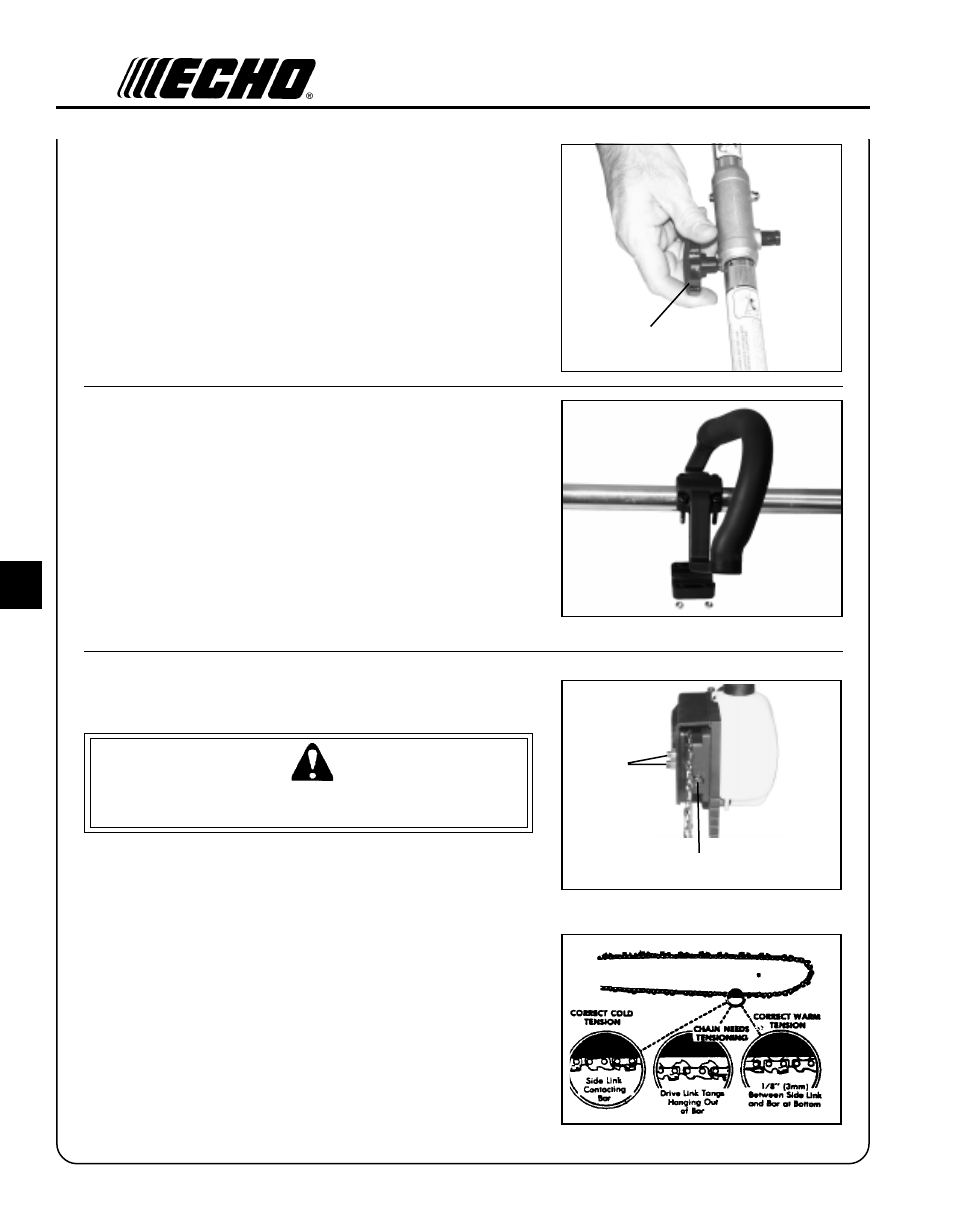

12

6. Secure lower drive shaft assembly to coupler by tightening

clamping knob (E).

E

FRONT

HANDLE

REMOVAL

Tools Required: Screwdriver.

Parts Required: None

1. Remove four (4) screws, nuts and handle halves from pruner.

2. Loosely attach handle halves together and store handle assembly

for later use.

SAW

CHAIN

TENSION

ADJUSTMENT

Tools Required: 10 mm (13/32 in.) Wrench, Screwdriver

WARNING DANGER

Always wear gloves when handling saw chain, otherwise serious
personal injury may result.

To Adjust Saw Chain Tension.

1. Loosen two (2) 10 mm (13/32 in.) guide bar nuts (A) located on

cutting attachment.

2. Turn saw chain tensioner screw (B) (located next to guide bar in

sprocket cover) clockwise to tighten saw chain on guide bar.
Turning screw counter clockwise will loosen saw chain on guide
bar.

3. Tighten guide bar nuts firmly. Move saw chain backwards on

guide bar by hand. Saw chain should move freely on guide bar if it
is in proper mesh with sprocket.

Keep the saw chain lubricated and properly adjusted and the guide
bar nuts tightened firmly at all times. If saw chain is difficult to rotate
or binds on guide bar, it is too tight.

B

A
