Engineering Data Sheet

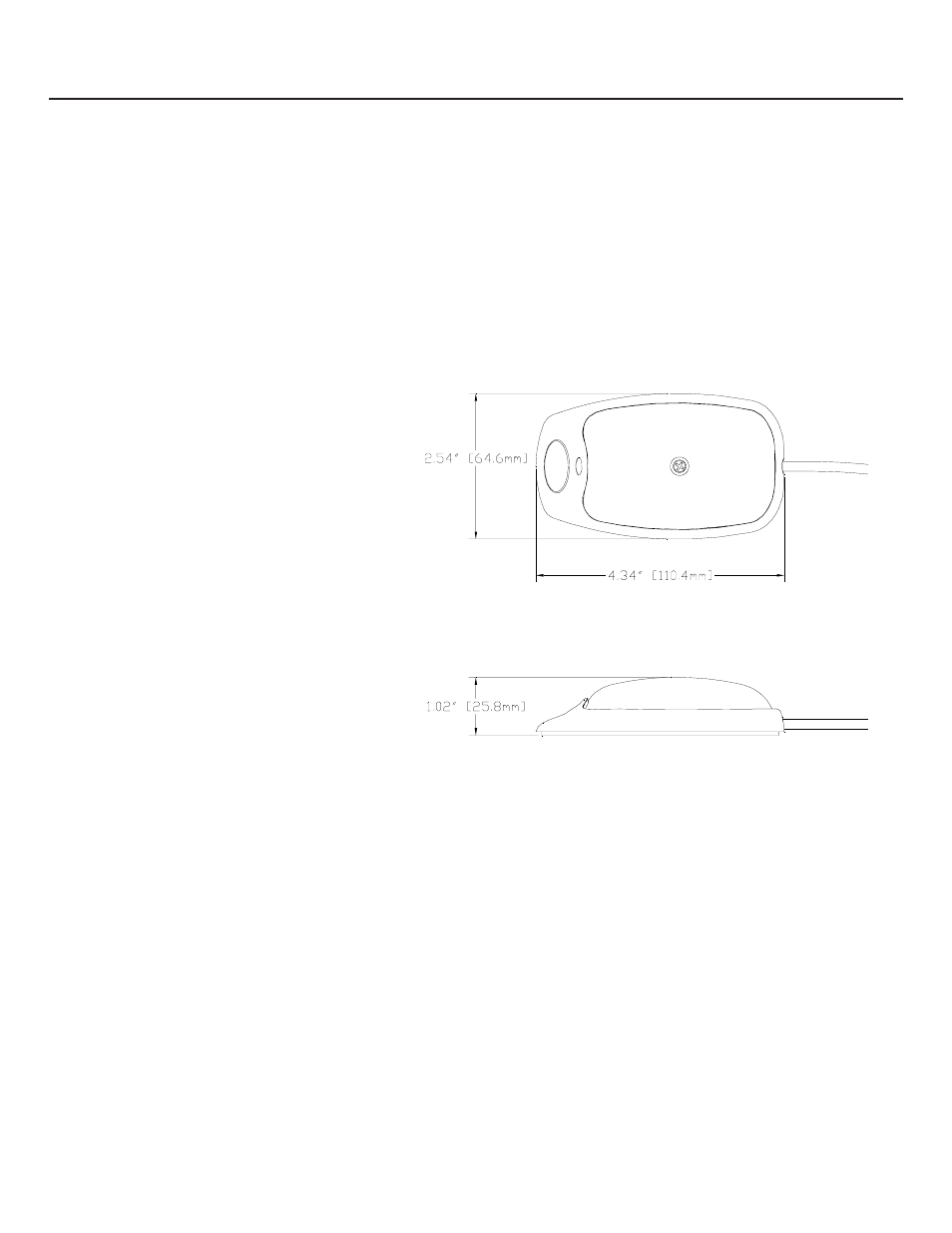

Technical Specifications: Dimension Drawings:
Applications:
The PC Boundary is acoustically designed for high-quality sound reinforcement and broadcast applications. The frequency
response is tailored for wide-range sound reproduction with very natural sound pick-up. The PC Boundary microphone’s three
directional polar patterns allow the user to pick the directional polar pattern for optimum effect. For those applications where
gain-before-feedback is not a problem, an omnidirectional pattern is included. The PC Boundary microphone is ideal for
boardrooms, conference tables, or anywhere a high quality low profile microphone is required.
Generation Element:
Dual condenser, back electret
Frequency Response:
50 Hz to 20,000 Hz (see chart)
Polar Patterns: (see chart)
Omnidirectional
Cardioid
Supercardioid
Figure 8
Switches and Controls:
Top mounted momentary membrane switch
Automix, normal selector
Push on/off, or push-to-mute selector
Power up on/off selector
High-pass enable
4-position polar pattern selector
Sensitivity, Open Circuit Voltage, 1 kHz:
31.5mV/Pascal
Clipping Level (1% THD):
>115 dB SPL
Equivalent Noise:
29 dB SPL “A” weighted typical
(0 dB=20 micropascals)
Dynamic Range:
>86 dB
Output Impedance, 1 kHz:
200 ohms
Power Requirements:
Phantom, 12 – 52 VDC
Current Consumption:
< 8 mA with P12 supply
Cable:
10-foot, 5-conductor (2-conductor shielded) black
cable, terminated with a professional 3-pin male XLR
style connector with gold plated pins.
Polarity:
Pin 2 positive, referenced to pin 3,with positive
pressure on the diaphragm
Dimensions:
110.4mm (4.34") long
164.6mm (2.54") wide
25.8mm (1.02") high
Weight:
269 grams (9.5 oz), including cable
