Specification for SiteGate-E
DIAGNOSTIC LED’s:
Power
indicates when power is on.
Run blinks when the processor is running.
Error lights when an error is detected.
CMnet Transmit lights when SiteGate-E transmits data over ARC156 network.
CMnet Receive lights when SiteGate-E receives data from the ARC156 network.
Console Transmit (TX) lights when the Console port transmits data.
Console 2 Receives (RX) lights when the Console port receives data.
Link lights when the Ethernet port is connected.
Lan lights when the Ethernet port is active.

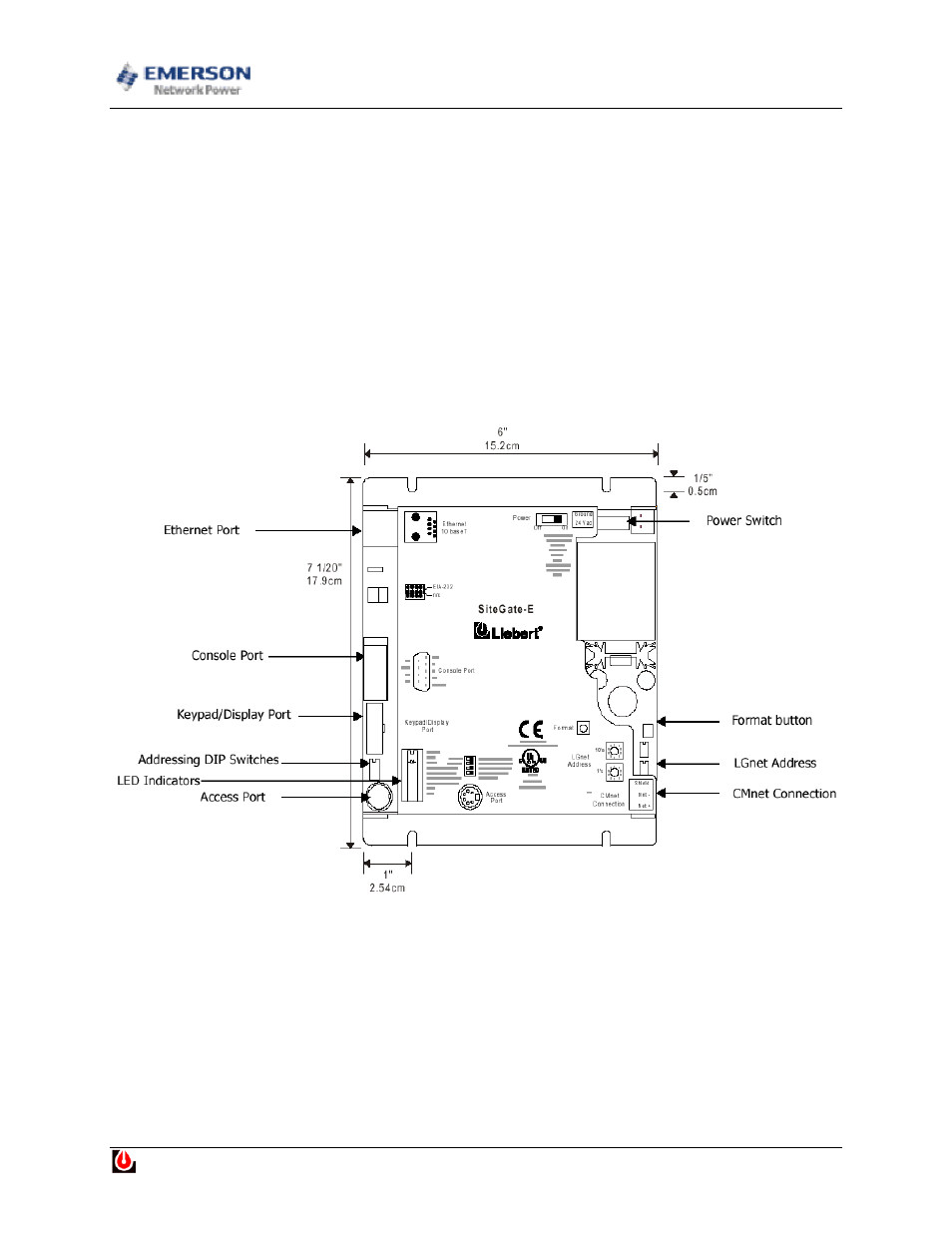

MODULE DIMENSIONS AND LAYOUT
