CAUTION

LASER RADIATION–
DO NOT STARE INTO BEAM

MAX OUTPUT : 1mW
WAVE LENGTH : 650

20nm

CLASS II LASER PRODUCT

Lamp Contains Mercury.
Do not put in trash. Dispose-of-as
Hazardous Waste, according to
Local, State or Federal Laws.

Specifications subject to change without notice.

PROJECTORS

Screen Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,000 ANSI Lumens/1,500 in Eco mode
Illumination Uniformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 %
Size of Color Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.7 Million
Contrast Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450:1 (Full ON/OFF)
Horizontal Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800 TV Lines
Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 Watt UHP
Estimated Lamp Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 2,000 Hours
Imaging System . . . . . . . . . . . . . . . . . . . . . . . . . . 0.79” PolySilicon active matrix TFT Panels x 3
Screen Pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1024 x 768 in stripe configuration
Total Pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,359,296 ((1024 x 768) x 3))
Lens Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Zoom and Focus
Lens Specs . . . . . . . . . . . . . . . . . . . . . . . . . Speed: f:1.7~2.5; FL: 0. 787~1.181 in. (20~30 mm)
Lens Ratios . . . . . . . . . . . . . . . . . . . . . . . . . . Zoom Max:Min: 1.5:1; Throw:Width: 1.25~1.87:1
Image Diagonal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40~300 in. (1 02~762 cm)
Image Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 7~20 ft. ( .84~6.1 m)
Throw Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3~25.3 ft. (1.0~7.7 m)
Front Elevation / Maximum Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 11.8° up / +/- 90°
Anti Keystone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fixed Image Offset, Ratio (Top:Bottom) 9:1
Vertical Keystone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Digital, up to 20° up or down
Scanning Frequency . . . . . . . . . . . . . . . . . . . . Auto: H Sync. 15-100kHz; V Sync. 50-100Hz
Dot Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 MHz
Image Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Normal, Reversed, Inverted
Local Control / Power Management . . . . . . . . . . . . . . . . . . . . . . . .

Full Function/Auto Shut-Down

Remote Projector Control . . . . . . . . . . . . . . . . . . . . . . . Wireless (Infra Red) with Laser Pointer x 1
SlideShow Page Up/Page Down Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB type B x 1
Service Port (RS-232) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mini DIN 8 Pin x 1
Computer Native Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1024 x 768 (XGA)
Computer: Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SXGA, XGA, SVGA, VGA
Computer: Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400x1050 thru 640x480
Computer: Higher Resolutions . . . . . . . . . . . . . . . . . . . . Displayed panned or Smart Compressed
Computer: Lower Resolutions . . . . . . . . . . . . . . . . . . . . . . . Displayed normal or Smart Expanded
Video Compatibility . . . . . . . . . . . . . . . . . . . . . . NTSC/PAL/SECAM/NTSC 4.43/PAL-M&N
Video: HD Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . 480i/p, 575i/p, 720p, 1035i, 1080i
Video: Formats Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . Normal 4:3 and Wide Screen 16:9
Video: Image Sizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Video Scaling Technology
Image Signal Inputs:

1. Computer In 1/Component In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HD15 x 1
2. Computer In 2 / Monitor Out: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HD15 x 1
3. Video In: . . . . . . . . . . . . . . . . . . . . . . . . RCA x 1 (Composite) / S-Video x 1(Y/C)

Audio Signal Inputs:

1. Computer 1 & 2 / Component: . . . . . . . . . . . . . . . . . . . . . Stereo: MiniStereo x 1
2. Composite/S-Video: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA x 2 (L&R)

Audio: Amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mono: 1 Watts RMS
Audio: Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stereo: MiniStereo x 1 (Variable)
Audio: Built In Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 in. (2.8 cm) x 1
Fan Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37.5 dBA /33.5 dBA (in Eco mode)
Cabinet Size (HxWxD) . . . . 2.8x11.73 x 8.58 in. (71x298x218 mm.) (Excluding legs & lens)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2 lbs. (2.8 kg)
Packaged Size (HxWxD) . . . . . . . . . . . . . . . . . 13.4 x 16.6 x 14.4 in. (340 x 420 x 365 mm)
Packaged Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.9 lb. (6.3 kg)
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-240V AC, 50/60Hz
Power Consumption . . . . . . . . . . . . . . . . . . . . . 275W / 212 W in Eco mode (7 W in standby)
Heat . . . . . . . . . . . . . . . 939 BTU/hr (237 Kcal/hr) / 724 BTU/hr (183 Kcal/hr) in Eco mode
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10’ (3M) Type 3, Detachable
Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL Listed
Security Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Kensington® Security Slot
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41~95°F (5~ 35°C)
User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Clean Air Filter, Replace Lamp
Warranty: Projector . . . . . . . . . . . . . . . . . . . . 3 Yr. / 6000 Hr. *(Parts/Labor to Correct Defects)
Warranty: Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Days (Failed Lamp Replaced Pro-Rata)

* whichever occurs first

SPECIFICATIONS: LC-XB22

INCLUDED ACCESSORIES:
Owner’s Manual. AC Power Cord. Lens Cover. VGA-type
Computer Input Cable (HD15~HD15). Wireless Remote Control
With Laser Pointer & Batteries (AA x 2).

OPTIONAL ACCESSORIES:
Soft Carry Bag. Replacement Lamp. USB cable for slideshow Page
Up/Page Down. Component Video Input Cable (HD15~3-RCA).
MAC Adapter. MAC Monitor Cable. DB9~Mini Din-8 cable for
RS-232 control. Luggage-Style ("wheelie") Carrying Case with
Wheels, Telescoping Handle, and Detachable Computer
Compartment. ATA - Style Shipping Case with Wheels and
Telescoping Handle. Ceiling Mount. Ceiling Post and Plate.
33’ (10m) Extension Cable for Serial Cable. EZtrol Local Control.
NPC-1 Network Control.

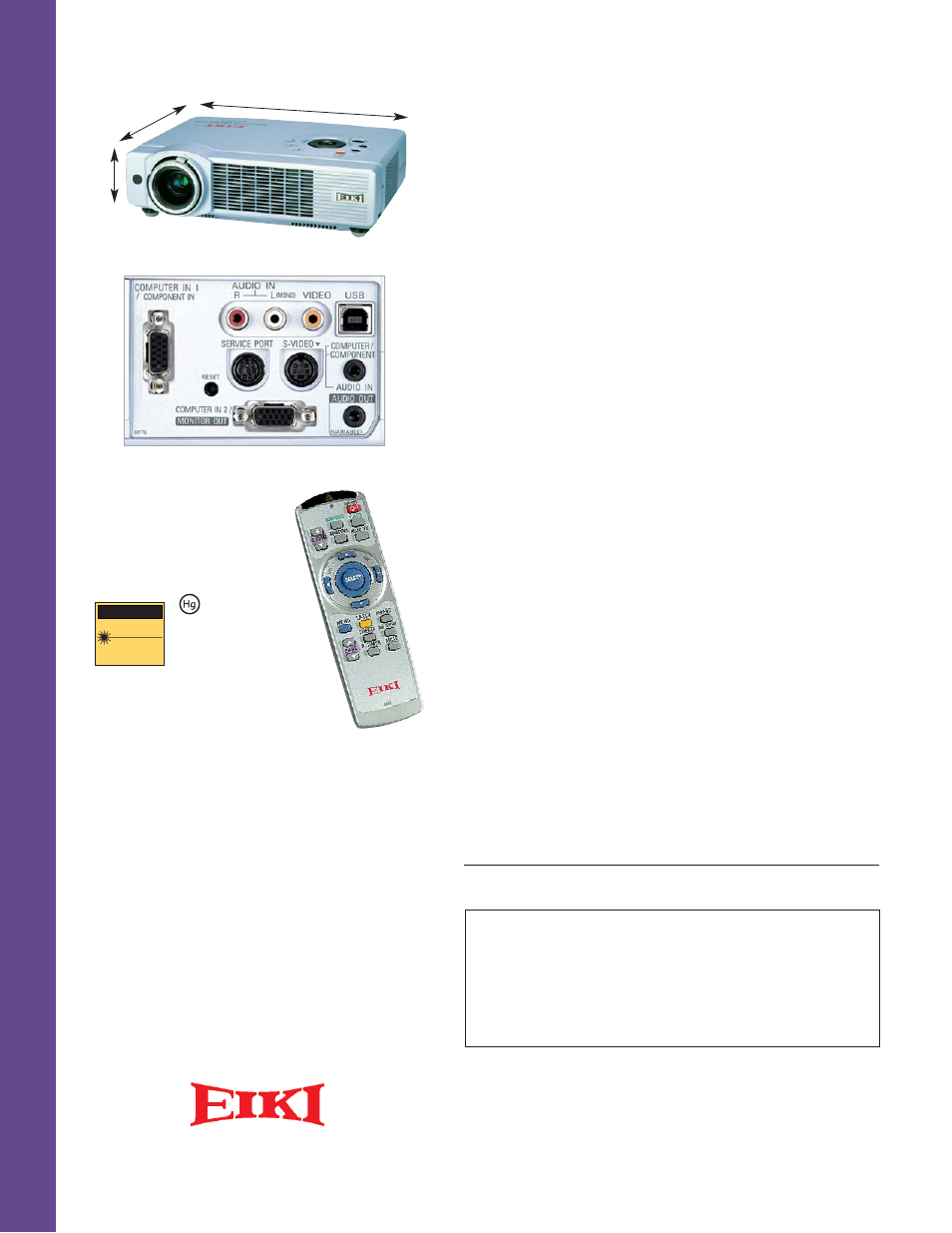

2.8"

8.58"

11.73"

Eiki International, Inc.

30251 Esperanza, Rancho Santa Margarita, CA 92688-2130

Tel: 800-242-3454; Fax: 800-457-3454, E-mail: [email protected]

In Canada, 310 First St.- Unit 2, P.O. Box 156, Midland, ON L4R 4K8

Phone: 800-563-3454, Fax: 800-567-4069 E-mail: [email protected]

http://www.eiki.com

LC-XB22

Talk to your EIKI Dealer... the "pro" in projection.
