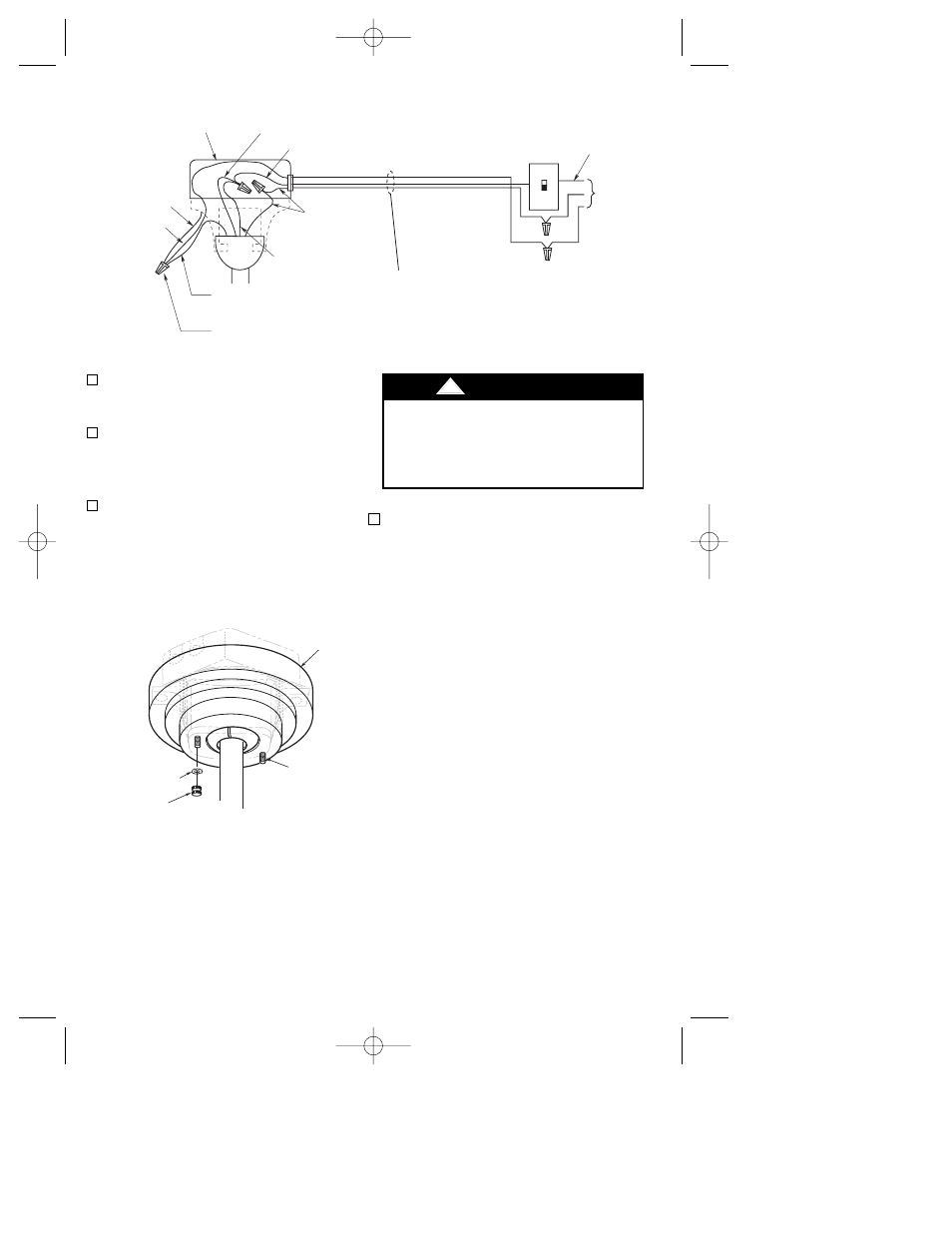

4. Screw the two 1-1/4” threaded studs
(supplied) into the tapped holes in the
hanger bracket (Figure 13).
5. Lift the ceiling cover up to the threaded
studs and turn until the studs protrude
through the holes in the ceiling cover
(Figure 16).
6. Secure the ceiling cover in place by
sliding lockwashers (supplied) over the
threaded studs and installing the two
knurled knobs (supplied) (Figure 16).
Tighten the knurled knobs securely
until the ceiling cover fits snugly against
the ceiling.
THREADED
STUD (2)
CEILING
COVER
KNURLED
KNOB (2)
LOCKWASHER
(2)
12
To avoid possible fire or shock, make
sure that the electrical wires are
completely inside the outlet box and not
pinched between the ceiling cover and
the ceiling.
! WARNING
BLACK FAN WIRE
LISTED OUTLET BOX
GREEN WIRE
(GROUND)
FROM
HANGER
BRACKET
WHITE
GREEN WIRE (GROUND)
FROM HANGER BALL
GROUND
WIRE
BLUE
BLACK
LISTED WIRE CONNECTOR (3)
GENERAL PURPOSE ON/OFF
WALL SWITCH OR OPTIONAL
EMERSON FAN CONTROL
TO 120
VOLT
SUPPLY
GROUND
WHT.
BLACK
(HOT)
GROUND
TWO-CONDUCTOR CABLE
(WITH GROUND) BETWEEN
CEILING AND WALL OUTLET
BOXES
Figure 15
Figure 16
7. Your ceiling fan is now installed, wired
and ready for use.
