Page 21
21
Installation

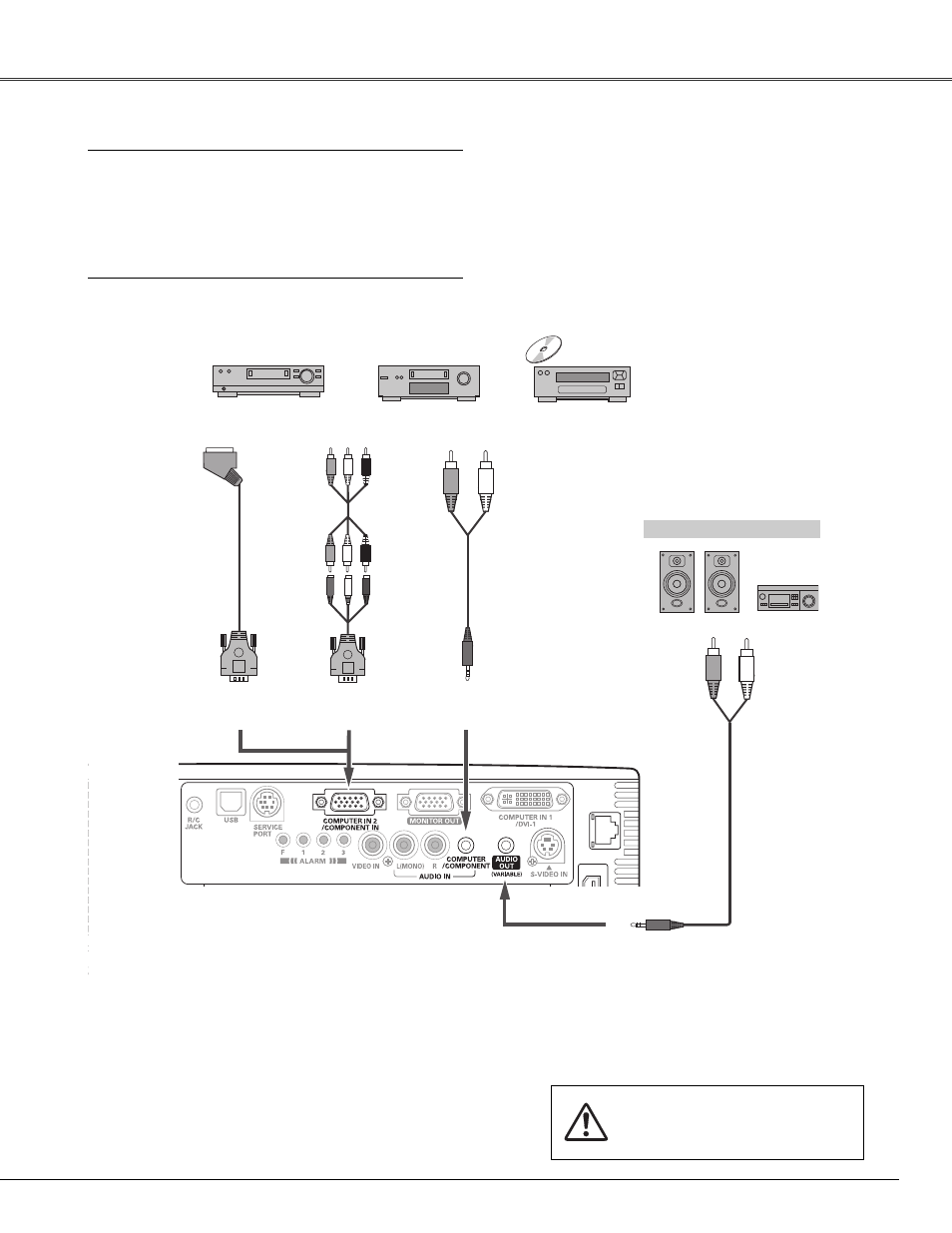

Connecting to Component Video Equipment
Cables used for connection
• Audio Cables
• Scart-VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart
21-pin Output
Audio Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 2/COMPONENT IN
COMPUTER/COMPONENT
AUDIO IN
✔Notes:
•When connecting the AUDIO OUT to external audio equipment,
the projector’s built-in speaker is disconnected.
•See page 75 for ordering optional cables.
•RGB Scart signal cannot be output from the MONITOR OUT
terminal.
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting cables.
