EPSON ELP-3300 Data/Video Projector

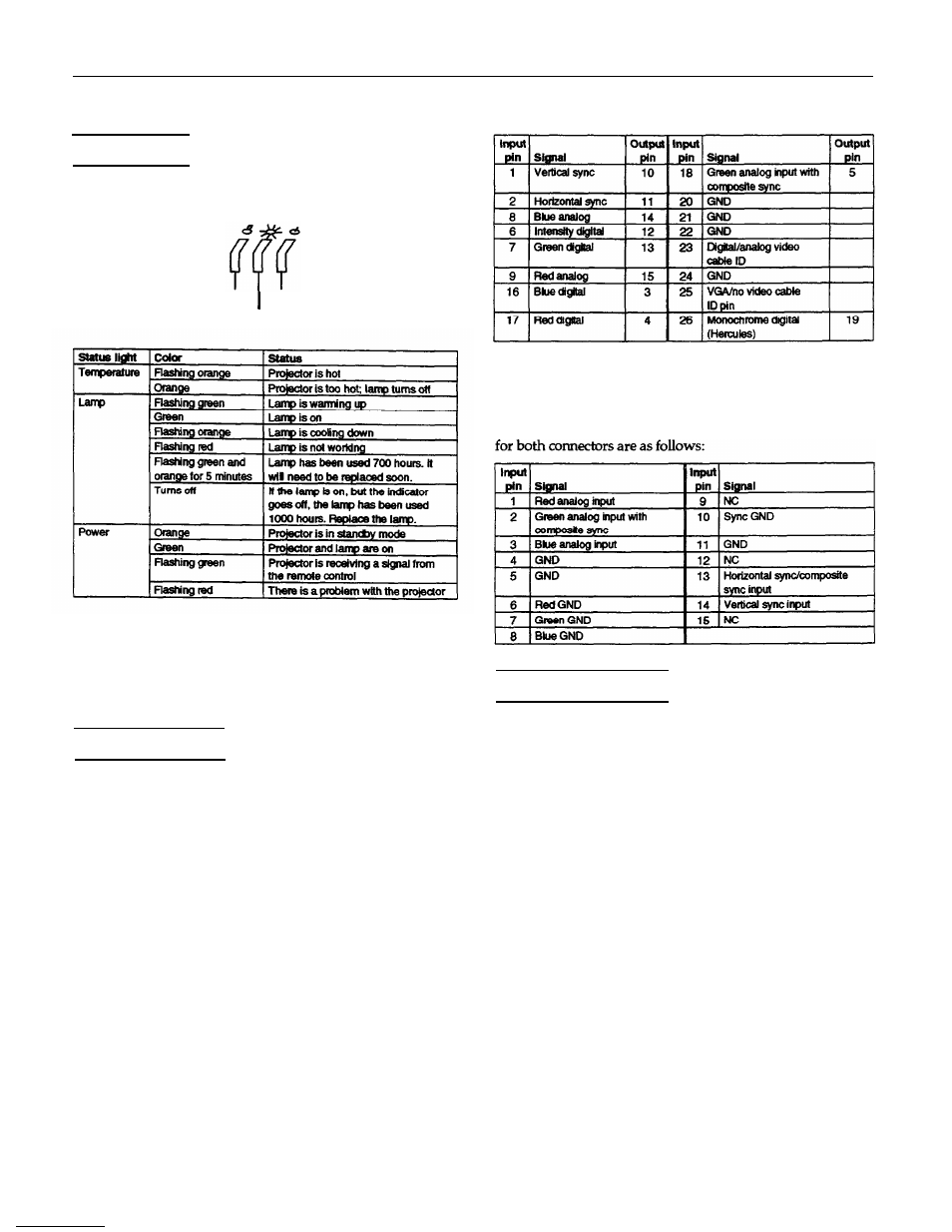

Status Lights
The status lights at the top of the projector monitor its
operation.
temperature light power light
lamp light
To reset the lamp indicator after replacing the bulb, turn off
the projector, hold the ‘Menu” and ‘Sync-” buttons down
then turn the power switch back on. Continue to hold the
buttons down until all three monitor lights flash orange for
about 3 seconds. The lamp dectector is now reset.
Pin Assignments
The following tables describe the pin assignments for the
three connectors of the Y-cable: the LCD connector, the VGA
connector, and the Monitor connector. The pin assignments
for the VGA and Monitor connectors are identical.
LCD connector pin assignments
The LCD connector is a 26-pin D-style connector. Its pin
assignments are as follows:
VGA and Monitor connector Pin assignments
The VGA connector is a male video RGB, 15-pin micro-D
style connector, and the Monitor connector is a female video
RGB, 15-pin micro-D style connector. The pm assignments
Related Documents
Engineering Change Notices
None.
Technical Information Bulletins
None.
Product Support Bulletins
None.
Related Documentation
4005478 EPSON ELP-3300 Data/Video Projector
Owner's Manual
PL-ELP3300 EPSON ELP-3300 Data /Video Projector
Parts Price List
ELP-3300 - 2 4/96
