5
Hardware Setup
Chapter 2
Network Application Platforms
Chapter 2:
Hardware Setup

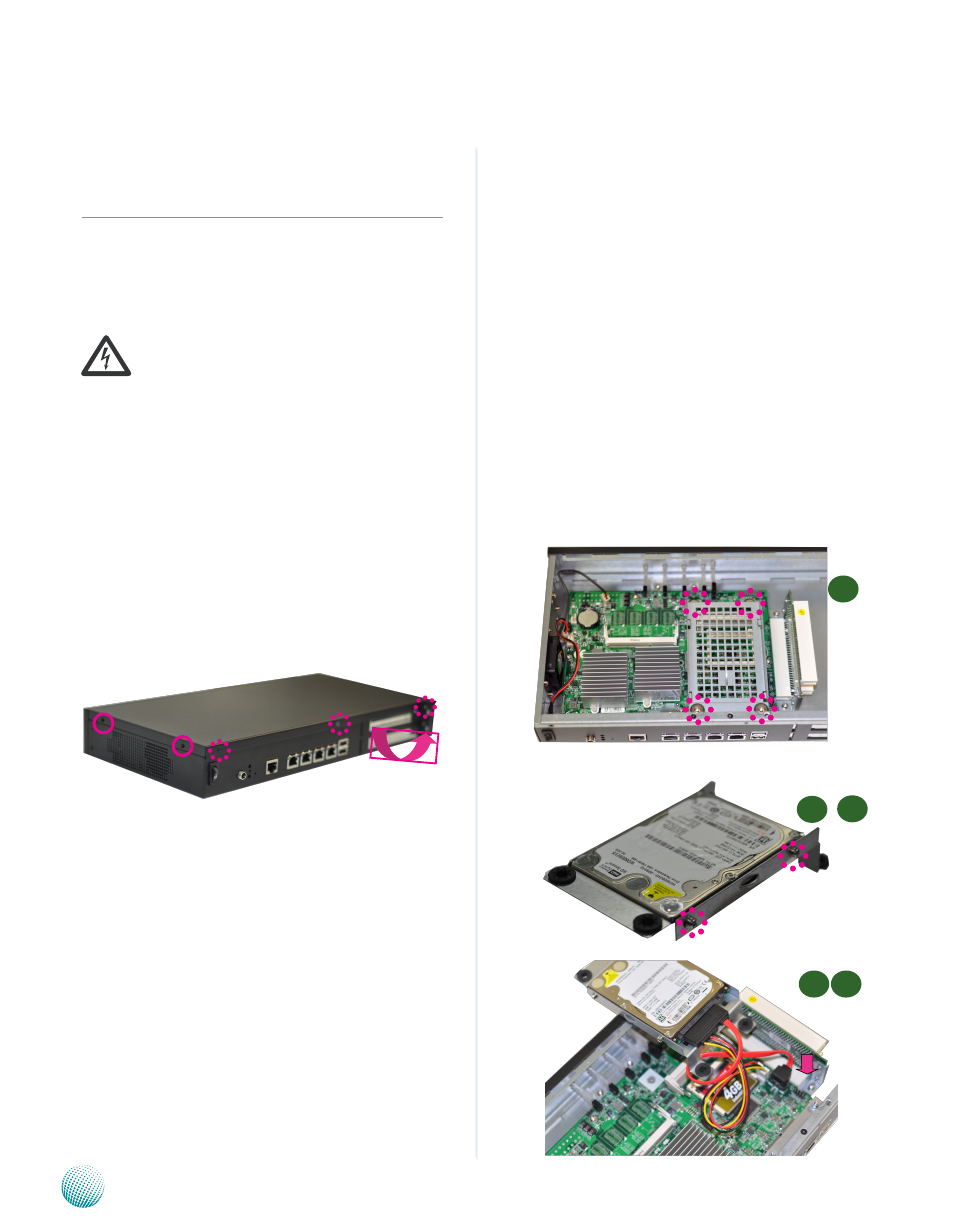

Preparing the Hardware Installation
To access some components and perform certain service
procedures, you must perform the following procedures
first.
WARNING: To reduce the risk of personal injury,
electric shock, or damage to the equipment,
remove the power cord to remove power from the
server. The front panel Power On/Standby button
(if there is one) does not completely shut off
system power. Portions of the power supply and
some internal circuitry remain active until power
supply is removed.
Unpower the FW-6436 and remove the power cord. 1.
Unscrew 2 screws from the two sides and two screws 2.
on the back of the top cover of the FW-6436 System.
Slide the cover backwards to open it. 3.
Installing the Hard Disk
The system can accommodate one Serial-ATA disk (2.5” or
3.5”). Follow these steps to install a hard disk into the FW-
7565:
Unscrew the 4 screws on the hard disk tray to take out 1.
the hard disk tray from the system.
Place hard disk on the hard disk tray and align the holes
2.
of the hard disk with the mounting holes on the tray.
Secure the hard disk with 4 mounting screws on the
3.
hard disk tray.
Connect the Serial-ATA power from the ATX power
4.
supply unit and hard disk cables to the hard disk’s
power and hard drive connectors respectively.
Plug the Serial-ATA cable to the Serial-ATA Connector
5.
on the main board.
Put the hard disk tray with the installed hard disk back
6.
to the system and secure it with the mounting screws.
1
2 3
4 5
