11/14

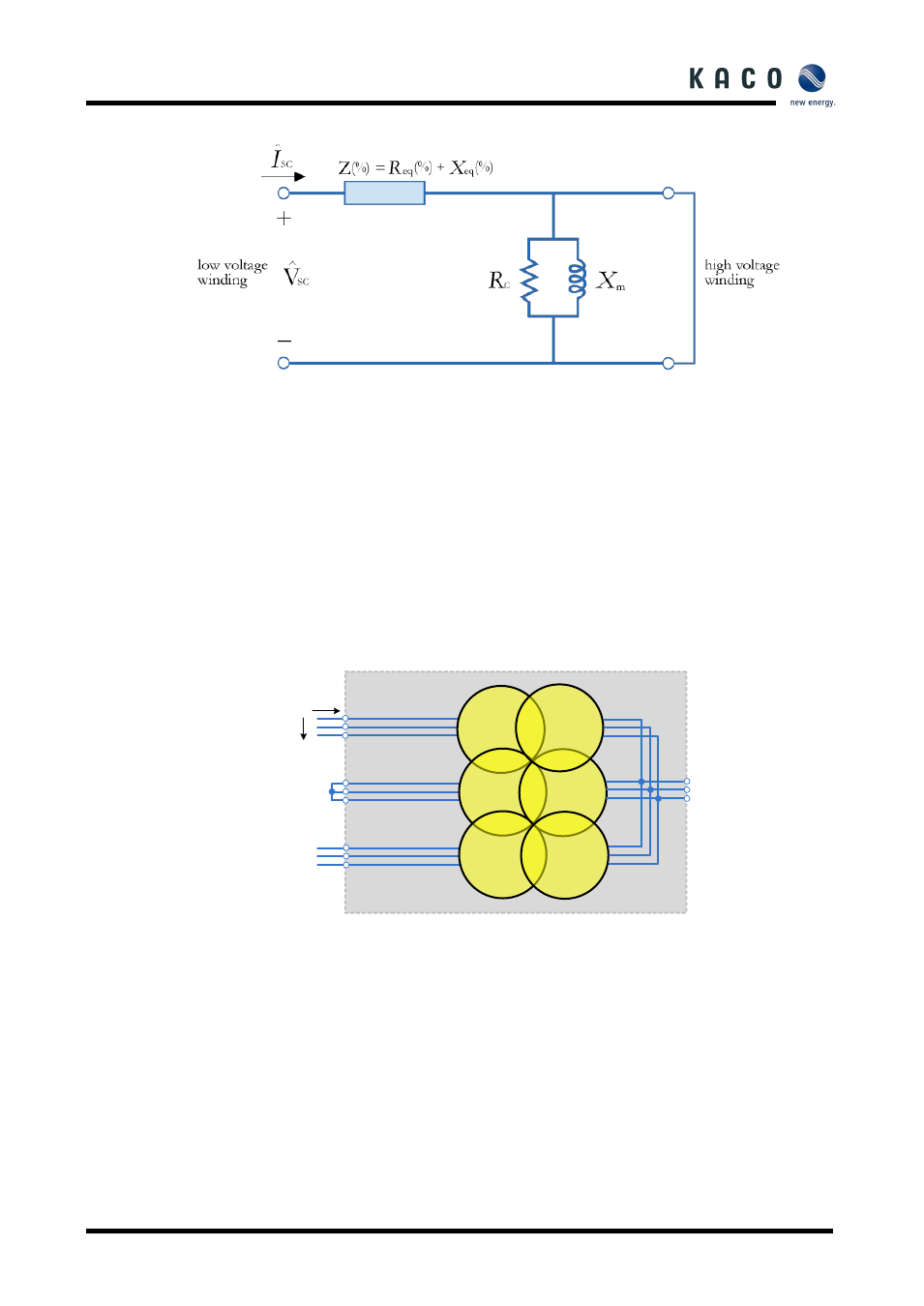

Fig.13 Equivalent circuit with short circuited high voltage winding
2. Equivalent series impedance between both low voltage winding:
The equivalent series impedance Z(%) between both low‑voltage windings must be 10 %. The
tolerance limits of this impedance voltage of 9 % ~ 11 % must be maintained. This value can be
determined when one of the low‑voltage winding is short-circuited and the voltage on the other
low‑voltage winding is increased until the nominal current flows. At the same time the
high‑voltage windings are idle (see Fig.14).
Y
Y
Y
V
sc
I
sc
∆
∆
∆
Fig.14 Equivalent circuit with short circuited low voltage winding
3. Equivalent series impedance Z(%) of the section -winding transformer:
To summarize of the contents in Article 1 and Article 2, the equivalent series impedance Z(%) of
the section -winding transformer can be shown as followed.
Z
L
is the equivalent series impedance of low voltage winding, and Z
H
is the equivalent series
impedance of high voltage winding.
