V1000
M
U/T1
V/T2
W/T3
R/L1
S/L2
T/L3
SI-EM3D/V
Modbus TCP/IP
Option
FE
<1>
Modbus
TCP/IP Cable
Motor Power
Modbus
TCP/IP Cable

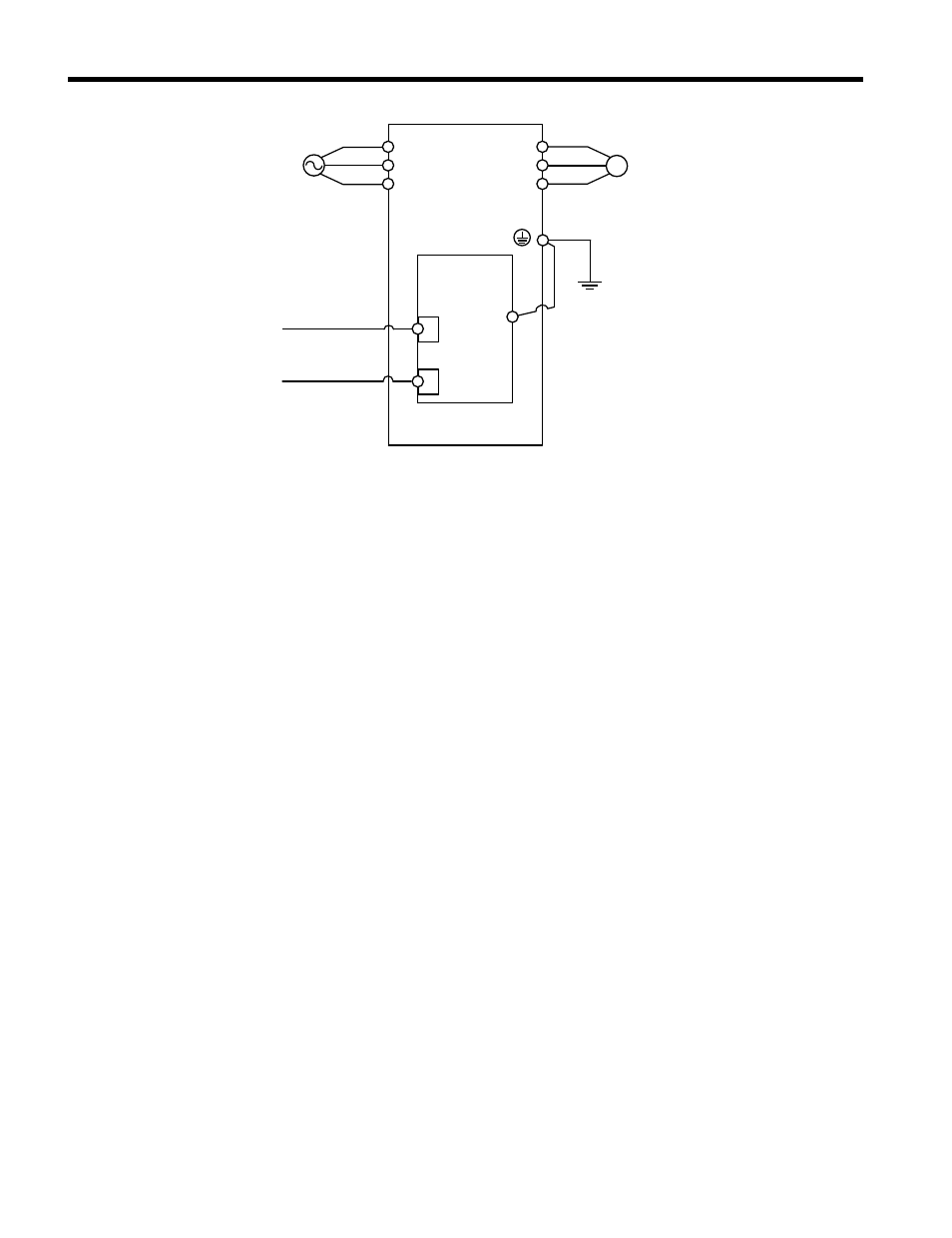

Figure 20 Option Connection Diagram
15.
Use the second communication cable port to daisy chain a series of drives where
applicable.
16.
Attach the option cover by aligning the tabs with the mounting holes, seat the front
cover into place, and tighten the screw on the front.
5 Installation Procedure
