Ash Pan Latch

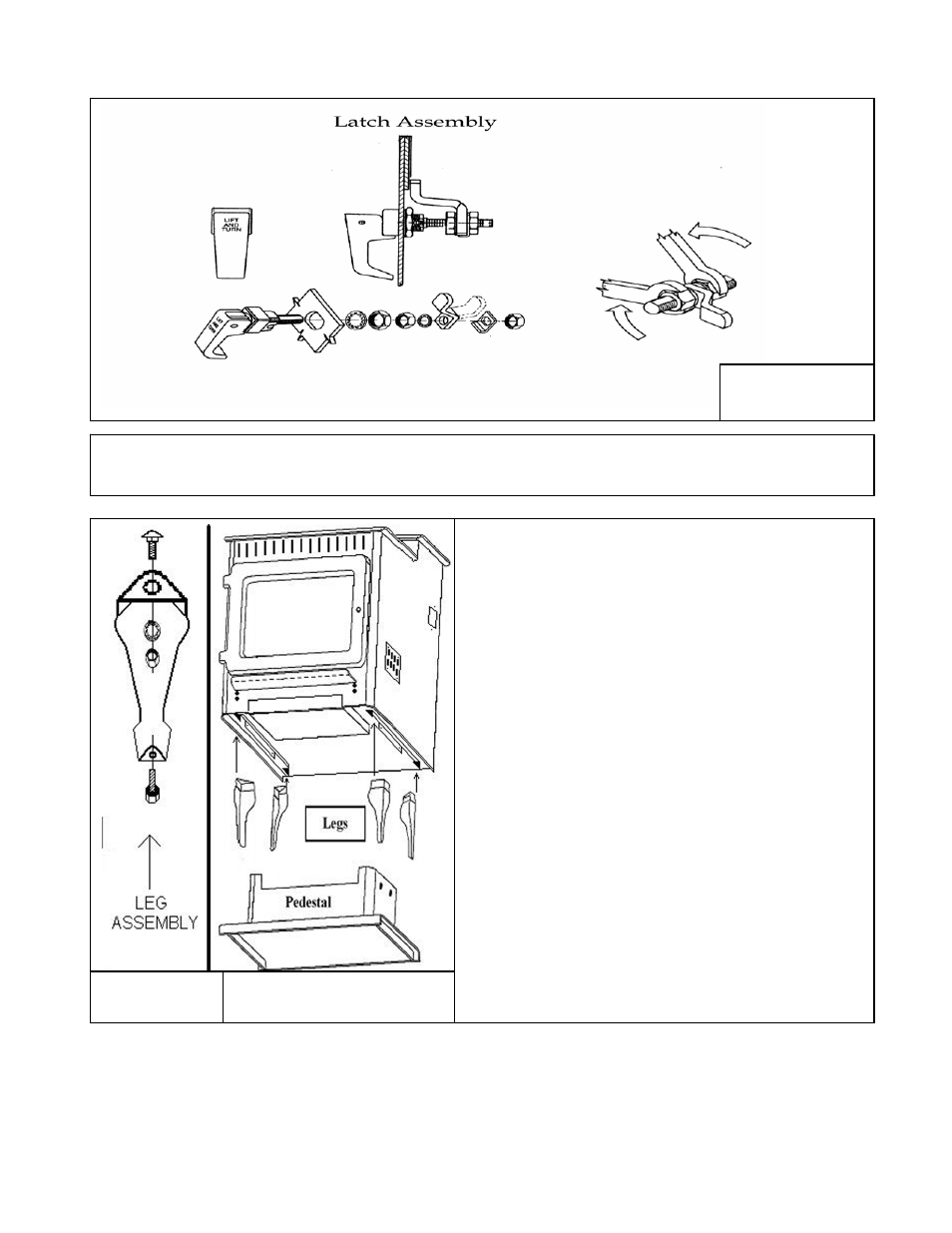

Illustration 8
Dimensions of your corn/pellet unit: 28”W x 33”H x 28”D 350 lbs.
(Approx.18” height from floor to center of exhaust)
Illustration 9 Base Options and Details
DIRECTIONS FOR INSTALLATION OF
LEGS OR PEDESTAL:
(Stove must be cooled and all ashes cleaned out)
* Remove bricks, disconnect flue, and turn stove on its
back.
* If you are replacing existing legs or pedestal,
disconnect the existing legs or pedestal.
To install legs:
1. Each leg will fit into a pre-made slot on each corner
of the bottom of the unit.
2. A 3/8” x 1-1/2” Carriage Bolt and matching nut is
supplied with each leg. Fit a leg into a slot, and
match the hole on the leg with the hole in the slot.
Attach the legs one at a time, using the supplied bolts
and nuts. Tighten securely.
To install pedestal:
1. Place spacers (provided) between the slots on the
unit and the pedestal base (one spacer will fit on
each side of the pedestal). Match the four holes in
the pedestal (2 on each side) with the holes in the
spacers and slots on the unit.
2. Use the four 3/8” x 1-1/2” Carriage Bolts and nuts
(provided) to attach the pedestal to the base of the
stove. Tighten securely.
* After attaching the legs or pedestal, turn unit upright,
reconnect flue and replace bricks according to manual.
