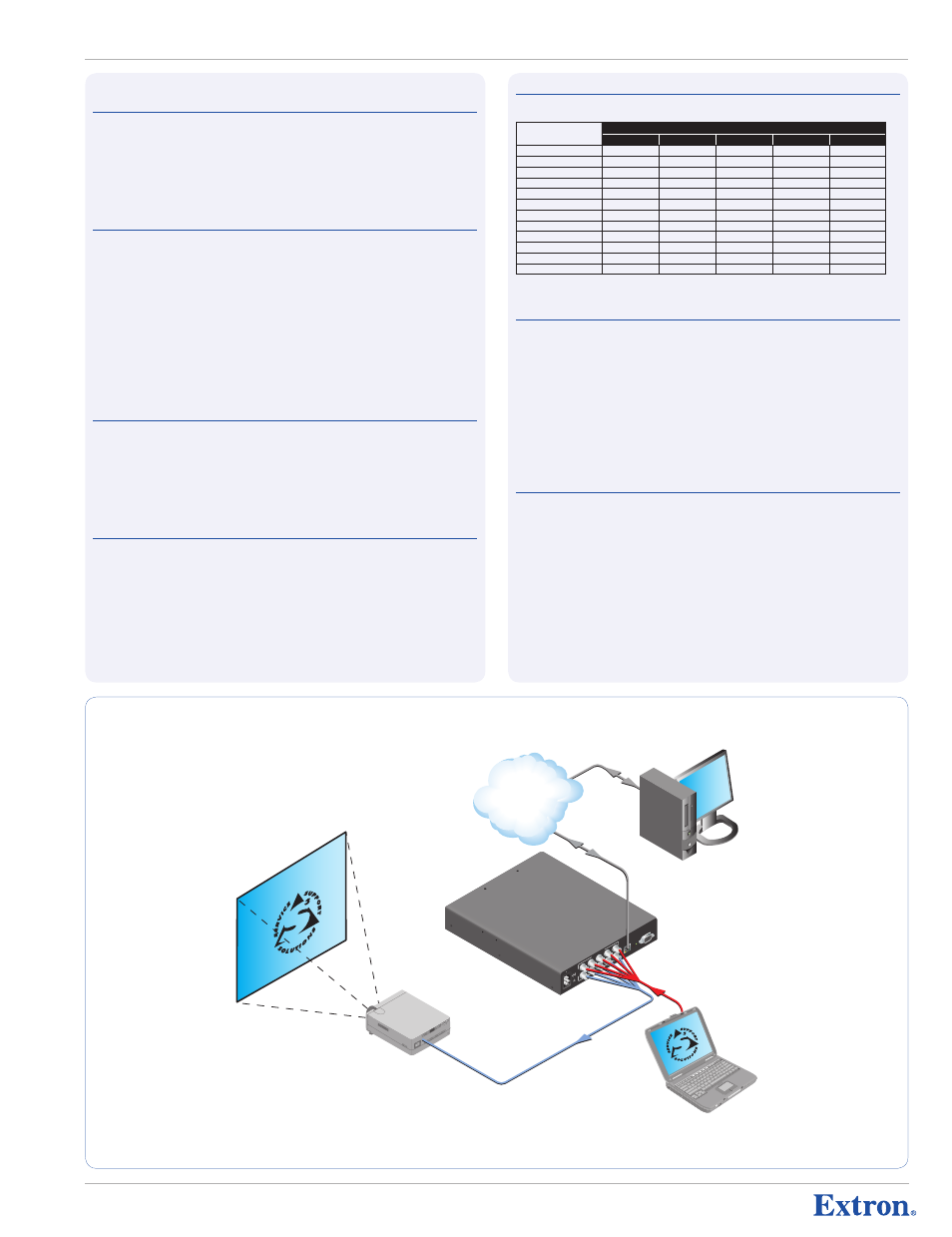

Extron
GSS 100
Graphic Still Store
Multiple Images
(for recall during
presentations)
Projector
Graphics PC
Laptop
TCP/IP
Network
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
USA East
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
China
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
Dubai
+971.4.2991800
+971.4.2991880 FAX
Asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
USA East
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
China
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
Dubai
+971.4.2991800
+971.4.2991880 FAX
Asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
MeMory and iMage storage
Internal memory . . . . . . . . . . . . . . . . . 16 MB
Image storage memory requirements
BMP Images Available
Total Megabytes of Memory Required at Specific Resolutions
640 x 480
800 x 600
1024 x 768
1280 x 1024
1400 x 1050
1
0.9 MB
1.4 MB
2.4 MB
3.9 MB
4.4 MB
2
1.8 MB
2.9 MB
4.7 MB
7.8 MB
8.8 MB
3
2.8 MB
4.3 MB
7.1 MB
11.8 MB
13.2 MB
4
3.7 MB
5.8 MB
9.4 MB
15.7 MB
5
4.6 MB
7.2 MB
11.8 MB
6
5.5 MB
8.6 MB
14.2 MB
7
6.5 MB
10.1 MB
8
7.4 MB
11.5 MB
9
8.3 MB
12.9 MB
10
9.2 MB
14.4 MB
11
10.1 MB
15.8 MB
17
15.7 MB
NOTE: JPEG image storage is highly variable and is based on file size. To calculate the total number of JPEG images
you can store, divide 16 MB by the JPEG file size. For example, 16 MB ÷ 500 KB (0.5 MB) = 32 images.
control / reMote — video Processor
Serial control port . . . . . . . . . . . . . . . RS-232, 9-pin female D connector
Baud rate and protocol . . . . . . . . . 300 to 115200 baud (configurable)
Default settings (adjustable: 9600 baud; 8 data bits; 1 stop bit; no parity
Serial control pin
configurations . . . . . . . . . . . . . . . . . . . 2 = TX, 3 = RX, 5 = GND
Ethernet control port . . . . . . . . . . . 1 RJ-45 female connector
Ethernet data rate . . . . . . . . . . . . . . . 10/100Base-T, half/full duplex with autodetect
Ethernet protocol . . . . . . . . . . . . . . . . ARP, DHCP, ICMP (ping), TCP/IP, Telnet
Ethernet default settings . . . . . . Link speed and duplex level = autodetected
IP address = 192.168.254.254, subnet mask = 255.255.0.0,
default gateway = 0.0.0.0
DHCP = off
Program control . . . . . . . . . . . . . . . . . Extron’s Simple Instruction Set (SIS
™
)
Microsoft
®
Internet Explorer, Telnet
general
Power .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 30 watts, internal, universal
Temperature / humidity . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional 1U rack shelf, part #60-190-01 or 60-604-01; or furniture-
mountable with optional brackets
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.75" H x 8.75" W x 9.5" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 24.1cm D
(Depth excludes connectors and knobs.)
Product / shipping weight . . . . . 4.5 lbs (2.1 kg) / 7 lbs (4 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings / compliances . . . . . . . . . UL, CUL / CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
sPeciFications
video inPUt
Number / signal type . . . . . . . . . . . 1 VGA–UXGA RGBHV, RGBS pass-through
Connectors . . . . . . . . . . . . . . . . . . . . . . . 5 female BNC
Nominal level . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p for RGB
Minimum / maximum levels . . Analog: 0.3 V to 1.5 Vp-p with no offset
Impedance .. . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . 15 kHz to 145 kHz
Vertical frequency . . . . . . . . . . . . . . . 30 Hz to 170 Hz
Return loss . . . . . . . . . . . . . . . . . . . . . . . <-42 dB @ 5 MHz
DC offset (max. allowable) .. . . . . . 1.5 V
video oUtPUt
Number / signal type . . . . . . . . . . . 1 VGA-SXGA RGBHV, RGBS
(selectable for stored images, follows input type for pass-through input)
Connectors . . . . . . . . . . . . . . . . . . . . . . . 5 BNC female
Nominal level . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p for RGB
Minimum / maximum levels . . 0 V to 0.7 Vp-p (unity gain of pass-through input)
Impedance .. . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Vertical frequencies . . . . . . . . . . . . 50 Hz, 60 Hz, 72 Hz, 96 Hz, 100 Hz, 120 Hz
Output resolutions . . . . . . . . . . . . . . 640x480
1,2,3,4,5,6
, 800x600
1,2,3,4,5,6
, 852x480
1,2,3,4,5
, 1024x768
1,2,3,4
,
1024x852
1,2,3,4
, 1024x1024
1,2,3
, 1280x768
1,2
, 1280x1024
1,2
, 1360x765
1,2
,
1365x768
1,2
, 1365x1024
1,2
, 1366x768
1,2
, 1400x1050
1,2
HDTV: 480p
1,2
, 576p
1,2
, 720p
1,2
, 1080i
1,2
, and
1080p
1,2
1
= at 50 Hz,
2
= at 60 Hz,
3
= at 72 Hz,
4
= at 96 Hz,
5
= at 100 Hz,
6
= at 120 Hz
Return loss . . . . . . . . . . . . . . . . . . . . . . . -43 dB @ 5 MHz
DC offset . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mV with input at 0 offset
sync
Input type . . . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS
Output type . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS
Input level . . . . . . . . . . . . . . . . . . . . . . . . 1.5 V to 5.0 Vp-p
Output level . . . . . . . . . . . . . . . . . . . . . . TTL: 4.5 Vp-p, unterminated
Input impedance . . . . . . . . . . . . . . . . 510 ohms
Output impedance . . . . . . . . . . . . . . 75 ohms
Max input voltage . . . . . . . . . . . . . . . 5.0 Vp-p
Max. propagation delay . . . . . . . . 20 ns
Polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . Selectable
File loading tiMes
640 x 480 resolution
Bitmap (BMP) file
. . . . . . . . . . . . . . . . . 1.0 second
JPEG (189 KB) file
. . . . . . . . . . . . . . . . 2.5 seconds
JPEG (20 KB) file
. . . . . . . . . . . . . . . . . . 2.0 seconds
1024 x 768 resolution
Bitmap (BMP) file
. . . . . . . . . . . . . . . . . 3.0 seconds
JPEG 100% (651 KB) file
. . . . . . . . 4.0 seconds
JPEG 75% (157 KB) file
. . . . . . . . . . 3.5 seconds
1400 x 1050 resolution
Bitmap (BMP) file
. . . . . . . . . . . . . . . . . 4.0 seconds
JPEG 100% (702 KB) file
. . . . . . . . 5.5 seconds
JPEG 75% (181 KB) file
. . . . . . . . . . 4.5 seconds
GSS 100
g r a P h i c S T i l l S T o r e
