Acoustic Performance Partnership Eastern Acoustic Works FR153z
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • Web http://www.eaw.com • email [email protected]
AC
O
US
TIC
AL
PER
FORMANCE PA
RTN
ER
SH
IP SPECIFICATIONS FR153z

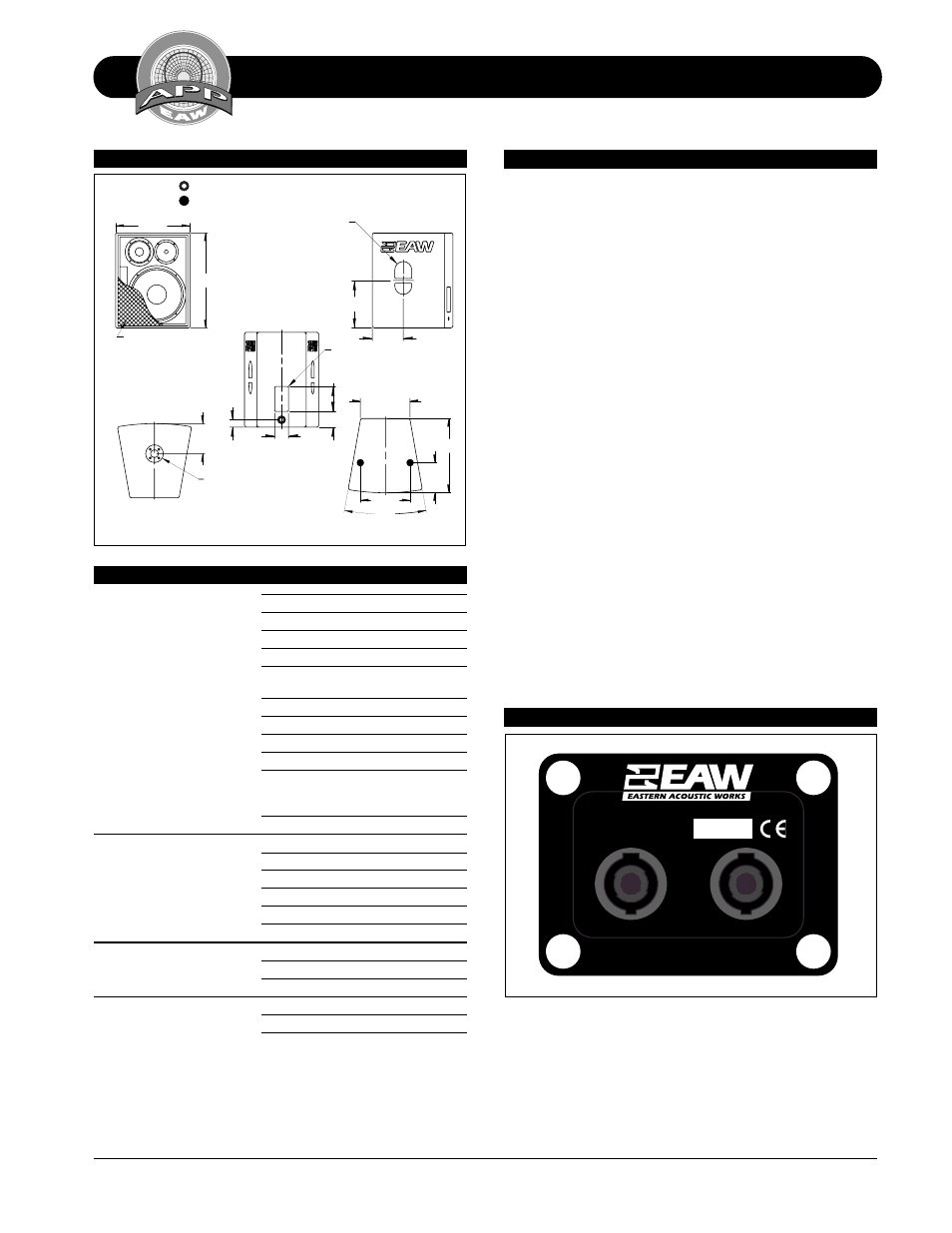

DIMENSIONAL DRAWINGS DIMENSIONAL DRAWING
FRONT
SIDES
BACK
TOP
BOTTOM
510949 (A)
exp 01/19/00 dpm
FR153z INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE (RIVNUT).
INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE (NUT PLATE).
L C
POLE MOUNT SOCKET
8.00
C L
13.25
(13.20)
19.75
8.00
20 °
25.25
GRILL PARTIALLY SHOWN
19.75
8.25
12.50
HANDLE
C
3.63
1.96
L
4.19
INPUT
6.63
A & E SPECIFICATIONS
The three-way full range loudspeaker systems shall incorpo-
rate a 15-in LF transducer, a 6.5-in cone MF transducer and
1-in exit/2-in voice coil compression driver HF transducer.
The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The MF driver shall be
mounted in a sealed subenclosure. The HF driver shall be
loaded on an axis-symmetrical wave guide plate with a nomi-
nal coverage pattern of 100
°
(conical). An internal passive
filter network shall provide fourth order acoustical crossover
and system equalization.
System frequency response shall vary no more than
±
3 dB
from 60 Hz to 18 kHz measured on axis. The loudspeaker
shall produce a Sound Pressure Level (SPL) of 97 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 130 SPL on axis at 1
meter. The loudspeaker shall handle 500 Watts of amplifier
power (AES Standard) and shall have a nominal impedance
of 8 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 1/2-in thickness void-free cross-grain-
laminated Baltic birch plywood and shall be finished in black
polyurethane. Recessed handels and rubber footpads shall
be provided. Input connectors shall be dual Neutrik NL4 Spea-
kon. Three 3/8"-16 threaded mounting points (2 top, 1 back)
shall be provided as well as a recessed cup to accept a
standmount pole. The front of the loudspeaker shall be cov-
ered with a powder coated perforated steel grille.
The three-way full range loudspeaker shall be the EAW model
FR153z.
PIN 1--...--
PIN 1+...+
WHITINSVILLE, MA USA
S/N FR153z
INPUT PLATE
PHYSICAL
Configuration 3-way, full range
Powering Passive (LF/MF/HF crossover)
LF Subsystem 15-in woofer, vented
MF Subsystem 6.5-in cone, sealed subenclosure
HF Subsystem 1-in exit/2-in voice coil compres-
sion driver on Wave Guide Plate™
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic birch plywood
Finish Black polyurethane
Connectors 2 x Neutrik NL4 Speakon
Suspension Hardware (3) 3/8-16 threaded mounting
points (2 top, 1 back), pole mount
cup
Grille Powder coated perforated steel
Dimensions Inches Millimeters
Height 25.25 641
Width (front) 19.75 502
Width (rear) 13.08 332
Depth 19.75 502
Trapezoid Angle 10
°
Per Side
Weights Pounds Kilograms
Net Weight 75 34.1
Shipping Weight 79 35.9
Companion Systems
Sub Bass FR250z
