Page 29
20

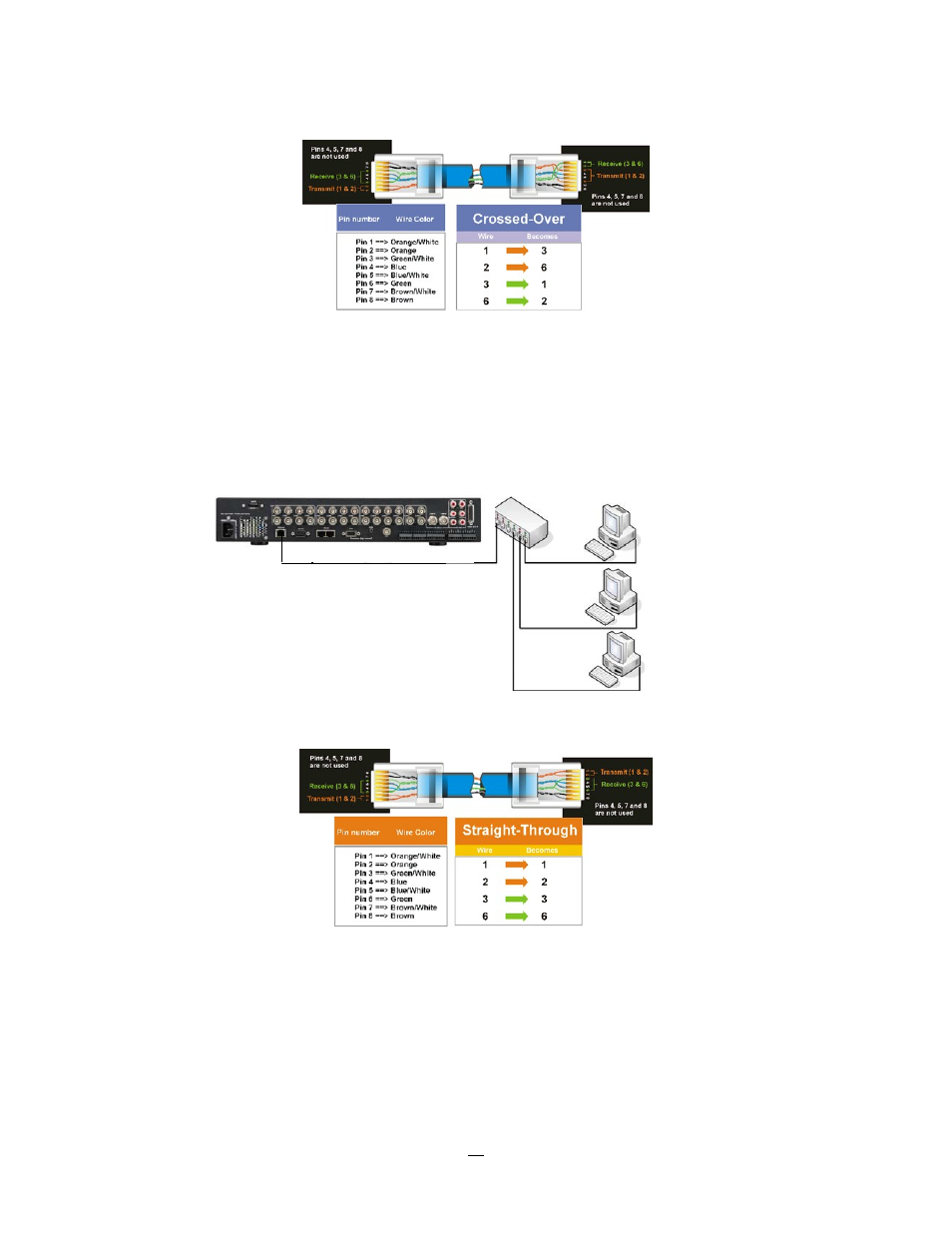

Pinout of crossover-cable
2.6.2 Network Connection through Patch Cable
The connection to an existing network requires a normal patch cable (straight-through). The illustration
shows the connection to a network switch or router.
Figure 2-2 Network Connection through Patch Cable
Pinout of straight patch cable
