9
1.5 REAR PANEL
During initial setup you will be connecting your DVR to multiple input and output devices. This is done
through the rear panel.
1) Main POWER: Plug the 120~240VAC power source provided into the power socket.
2) ETHERNET: RJ-45 network connection 10/100Mbps Ethernet. There are two LEDs on the LAN jack;
Green LED means network is connected, amber LED flickers when data is being exchanged.
3) RS232 Connector: 9-pin D-Sub control input for RS-232.
4) RS485 Connectors: For remote control via RS-485 keyboards and telemetry control for attached PTZ
devices

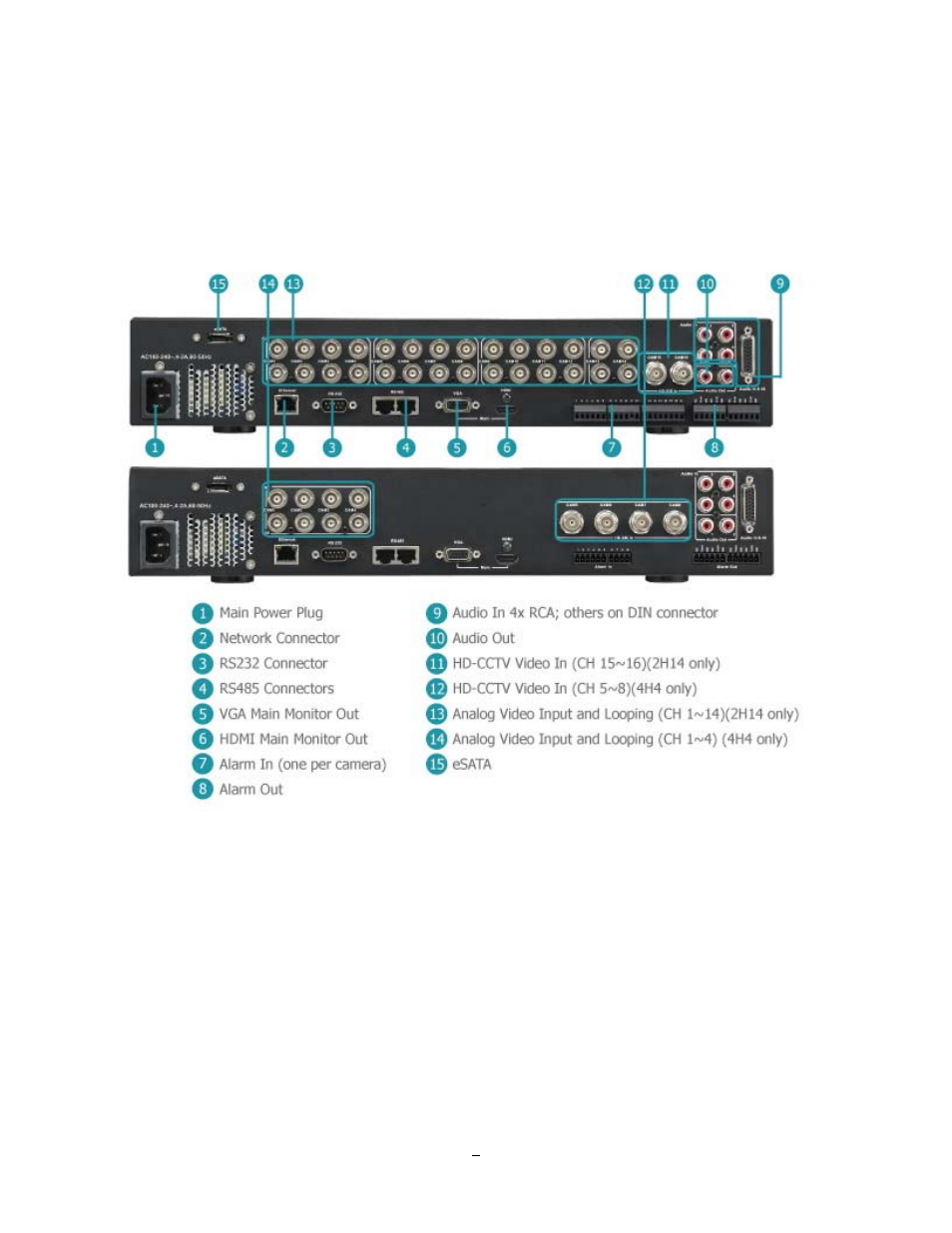

Figure 1-2 Rear Panel
