Input extension – Grass Valley TTN-BVS-1602CP User Manual
Page 19
BVS-1602CP
Rev. 2
11
7 Input extension

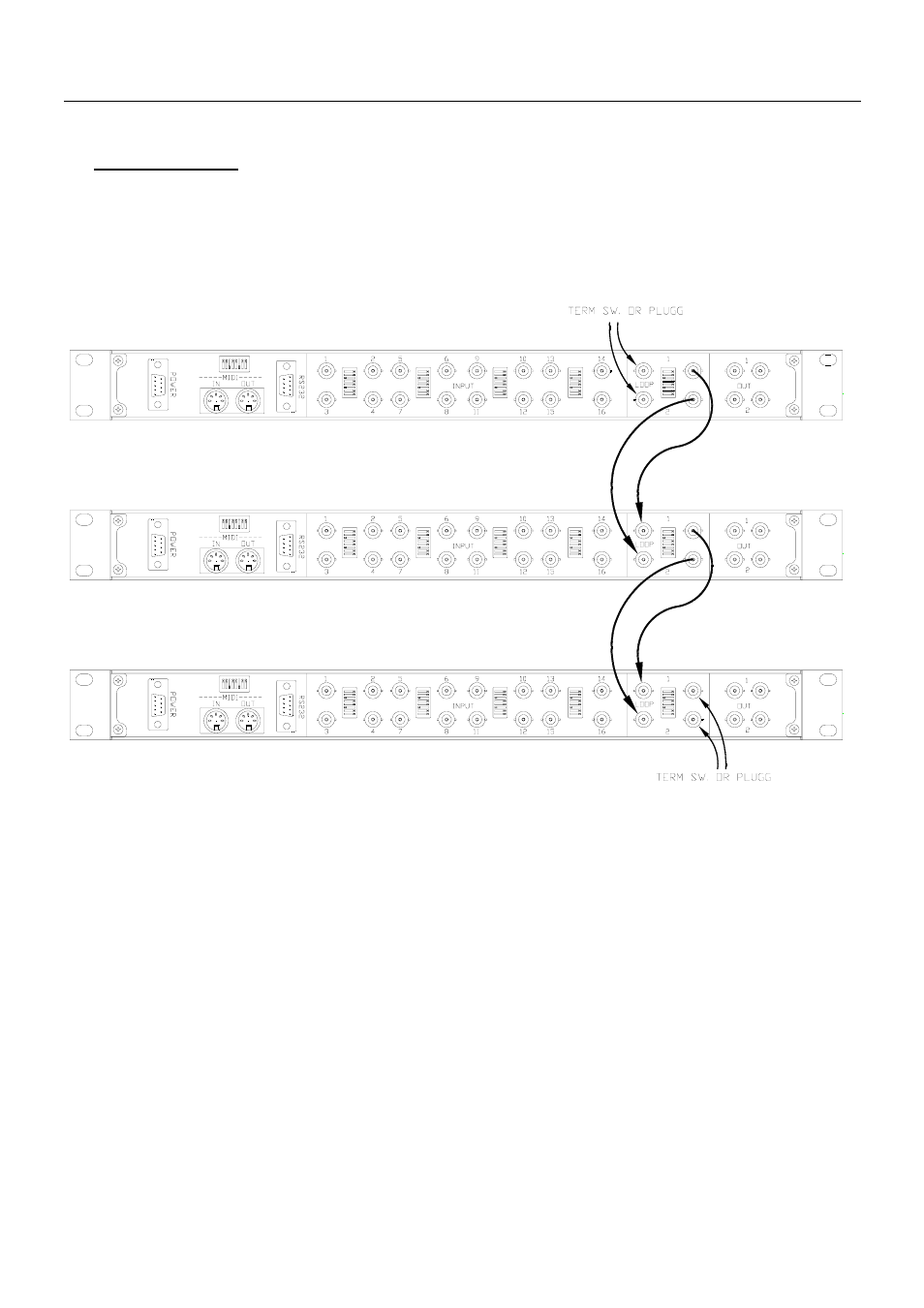

BVS-1602CP allows input extension up to 128x2. Please connect the routers like shown below. The end
of a loop chain must be terminated. This can be done either with a termination plug (75 Ohms) or the
termination on the loop section. Please refer to chapter 6 regarding termination switch.
Please refer to chapter 5.2 regarding input offset.
