production facility. In turn, monitoring and intercom signals are returned from the
central production facility to the venue.

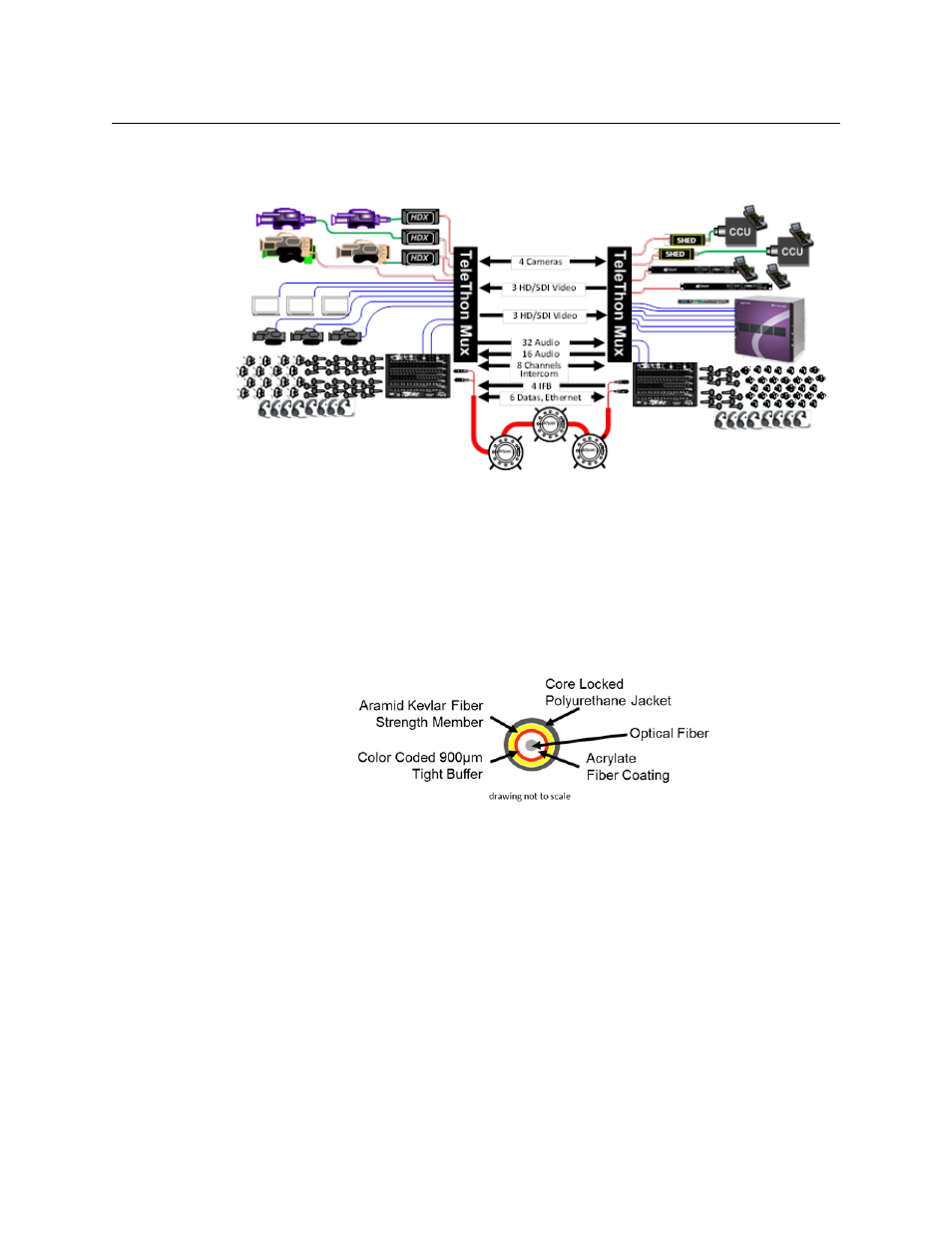

Fig. 1-2: Possible uses for the Telethon 3G
Fiber Cable Overview
Fiber Optics and Fiber Optic Cable are the core technologies at the heart of the Telethon 3G
System. The ability to multiplex and de-multiplex a variety of video, audio, and data signals
so that they can be carried over a thin strand of Fiber Optic cable for long distances enables
the Telethon 3G. The specific theory and operation of Fiber Optics is beyond the scope of
this document.
Fig. 1-3: Single Mode Fiber Optic Cable Cross-Section
Unpacking the Telethon 3G
Please consult your packing slip and purchase order to ensure that you have received all of
the expected components.
Inspect all components for scratches and other mechanical damage, and inspect the
electrical connectors for bent or damaged pins and latches. Report any missing or
damaged components to Grass Valley (see
Product Returns on page 4).
Leave the protective caps on the optical connectors whenever the fiber is disconnected.
