15
Telethon 3G
User Guide
Fiber ADAP Power Supplies
The Telethon 3G requires a power supply providing 12-18 volts at 1.5 Amps. The power
supply recommended for the unit is the ADAP-AC-04-X (X: specific geography required).
You can use any power supply meeting the required specification and providing power
through an XLR-4 Female connector. Contact Grass Valley, a Belden Brand (see
Contact Us
on page 25) or your Grass Valley Solutions dealer for more information.
You can use direct wire power connections from a customer provided power source with
the Terminal Block power connections on the back panel.

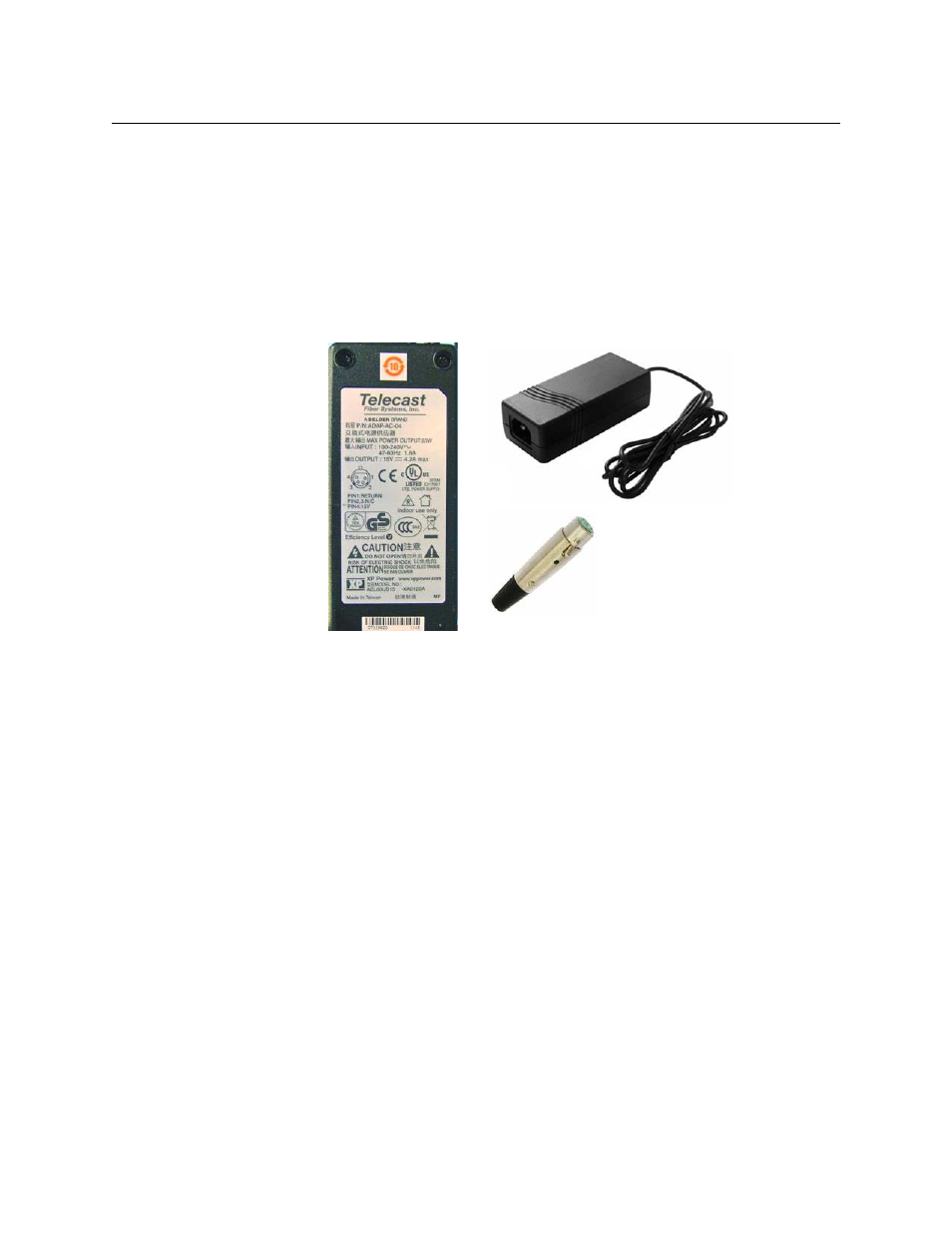

Fig. 3-11: Power Supply
Supplied with 4PIN XLR/A4F connector for the power plug on the Telethon 3G unit (Fiber
Part Number ADAP-AC-04)
