Chapter 6 - Connectors

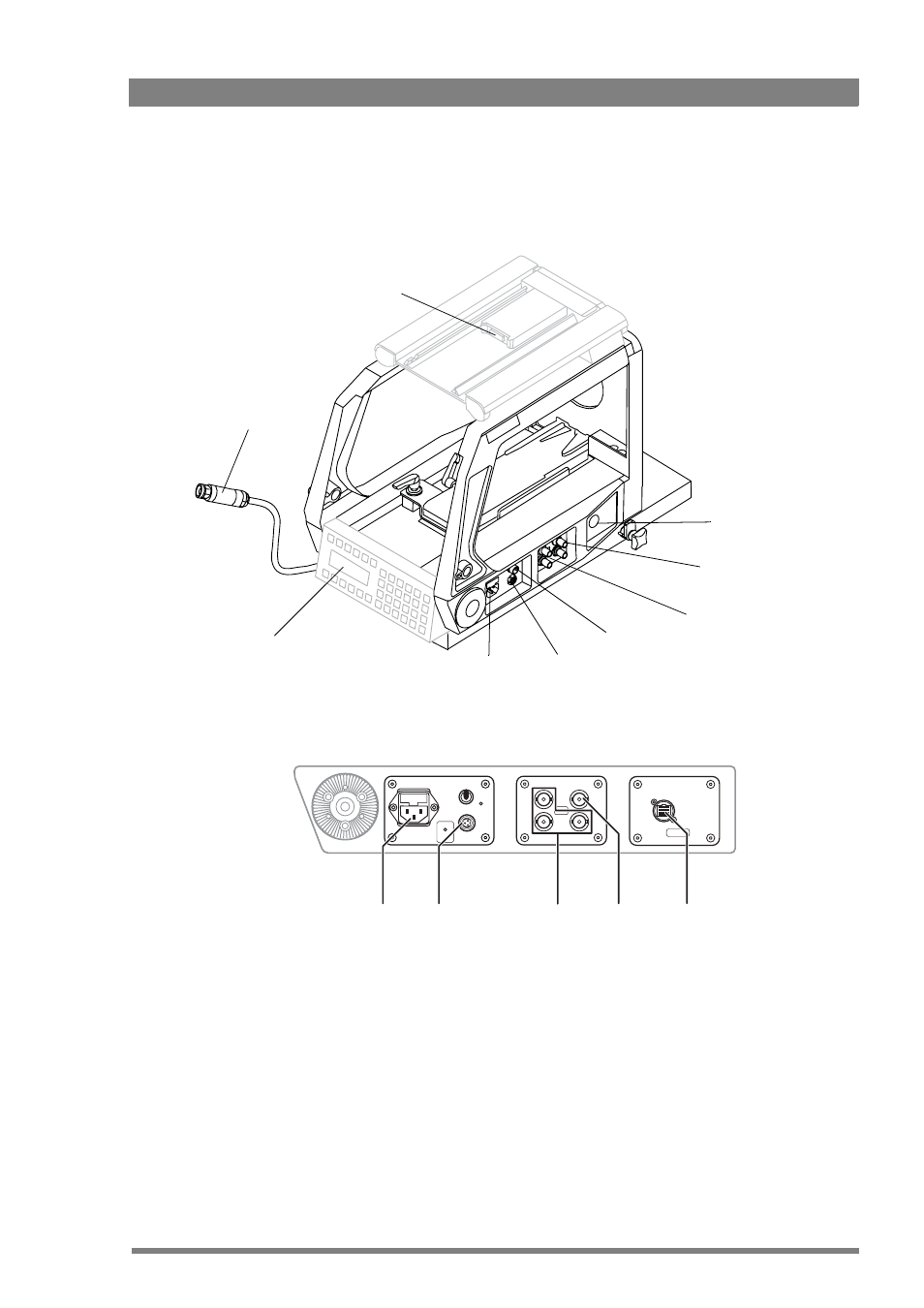

6.2 Right side view
flying lead
(connects to
camera
mains power supply
input socket
control panel (SuperXpander/
Xpander only)
viewfinder
connector
script light
power output
power
switch
top viewfinder connector
(part of optional viewfinder support)
viewfinder
outputs
VF C
onn.
Viewfinder
OUT
Viewfinder BNC
Ext
Pb
Y
Pr
100 - 240V~ 50-60Hz 3A
T4AH 250V
Local
Power
Active
Script
Light
Power
12V - 6VA
Off
On
viewfinder
connector
script
light
connector
mains
power
connector
viewfinder
outputs
(component
video)
external
output
(CVBS)
external output
