3.3 Mounting a lens
To mount the lens onto the SuperXpander/Xpander, proceed as follows:
1. Slide the viewfinder support back towards the rear of the SuperXpander/Xpander.
2. When the camera is mounted (in transport position) remove the lens cap before
proceeding.
3. Hook the lens onto the support rail ensuring that the upper lens pin fits into the slot in the
support rail.
4. Swing the lens downwards so that the lower lens pin fits into the hole in the front of the
SuperXpander/Xpander.
5. Turn the lens locking handle clockwise to secure the lens in place.
6. If a zoom control is used, attach the zoom control cable to the lens.

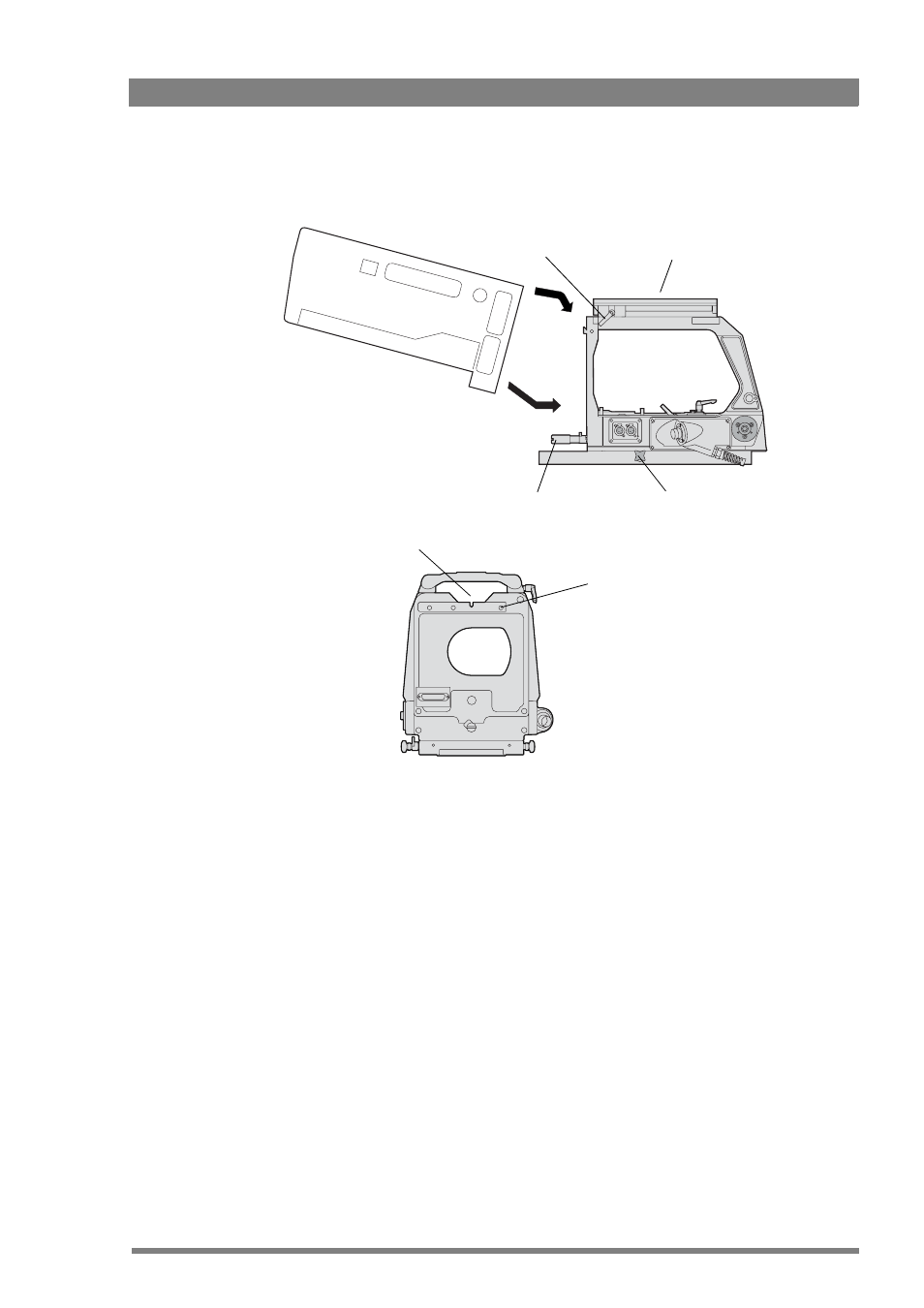

balance knob
viewfinder support bracket
viewfinder support
retaining lever
support rail slot
lens support rail
lens locking
handle
FRONT VIEW
SIDE VIEW
