36
Python 3G Components
Fiber ADAP Power Supplies
Fiber ADAP Power Supplies
The Python 3G requires a power supply providing 12-18 volts at 1.5 Amps. The power
supply recommended for the unit is the ADAP-AC-04-X (X being the specific geography
required). Any power supply meeting the required specification and providing power
through an XLR-4 Female connector can be used. Please contact Grass Valley (
Contact Us
on page 49) or your authorized dealer for more information.
Direct wire power connections from a customer provided power source can also be used
with the Terminal Block power connections on the back panel.

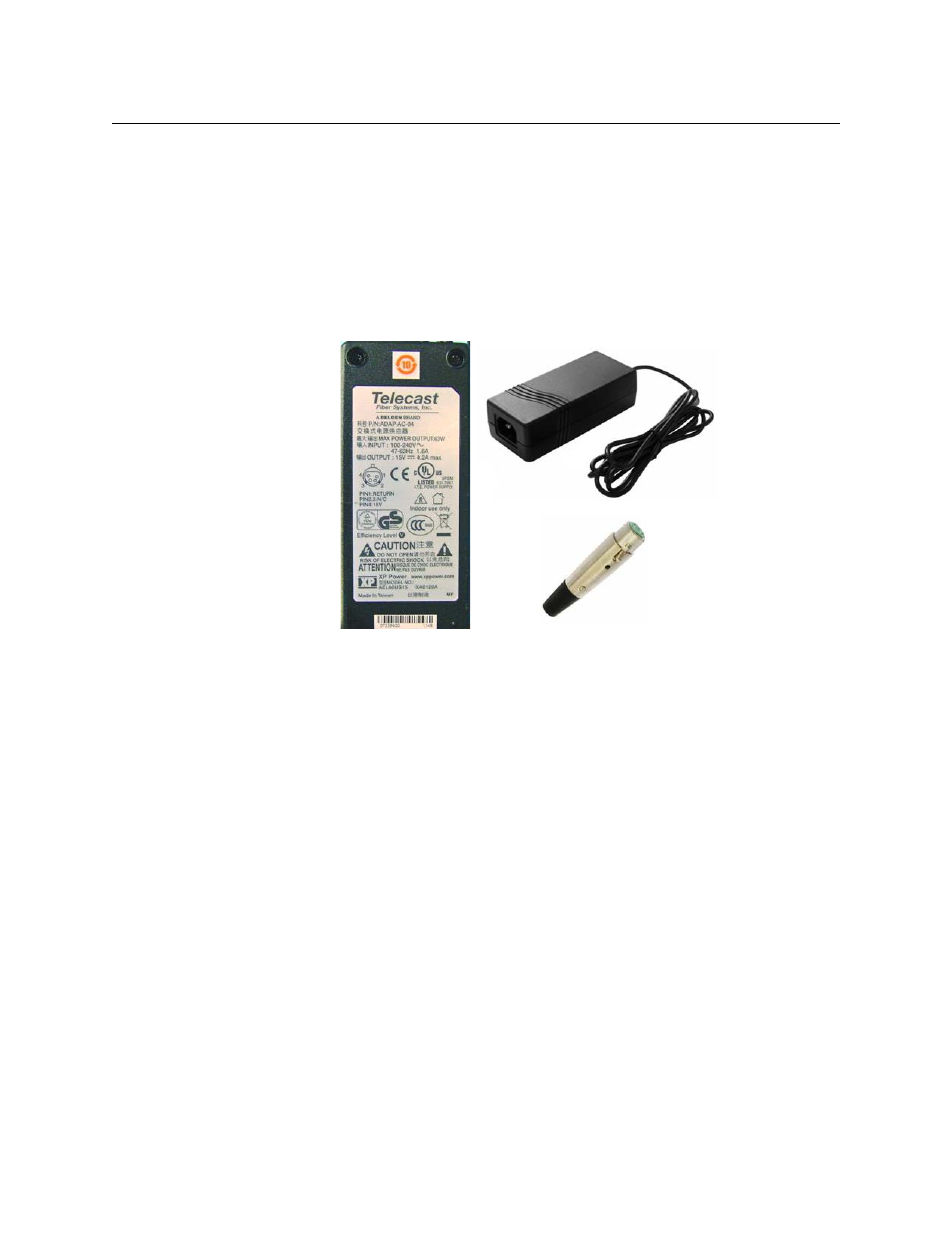

Fig. 3-25: Power Supply
Supplied with 4PIN XLR/A4F connector for the power plug on the Python 3G unit (Fiber Part
Number ADAP-AC-04)
