30
Python 3G Components
Python 3G Rear Panel
Python 3G Rear Panel
The composition of the Python 3G front panel will vary depending on whether the unit is a
receiver, transmitter or transceiver. It will also vary depending on whether the unit is a
CWDM unit or a one for one SDI to Fiber conversion unit.
The following sections describe the different types of Rear Panels that are available, but the
caption letters in each figure refers to the following sections:
• A - Power Connector Area - see Area A - Rear Panel Power Connectors on page 34
• B - CANBUS Connector - see Area B – CAN BUS Connector on page 35
• C - Fiber Connectors - see Area C – The ST Fiber Connectors on page 35
Python 3G Transmitter Rear Panel without CWDM
The following model is the PY3-A000-ST4 with four pass-through outputs. The number of
ST connectors corresponds to the type model: 4, 8, 12, or 16 inputs.

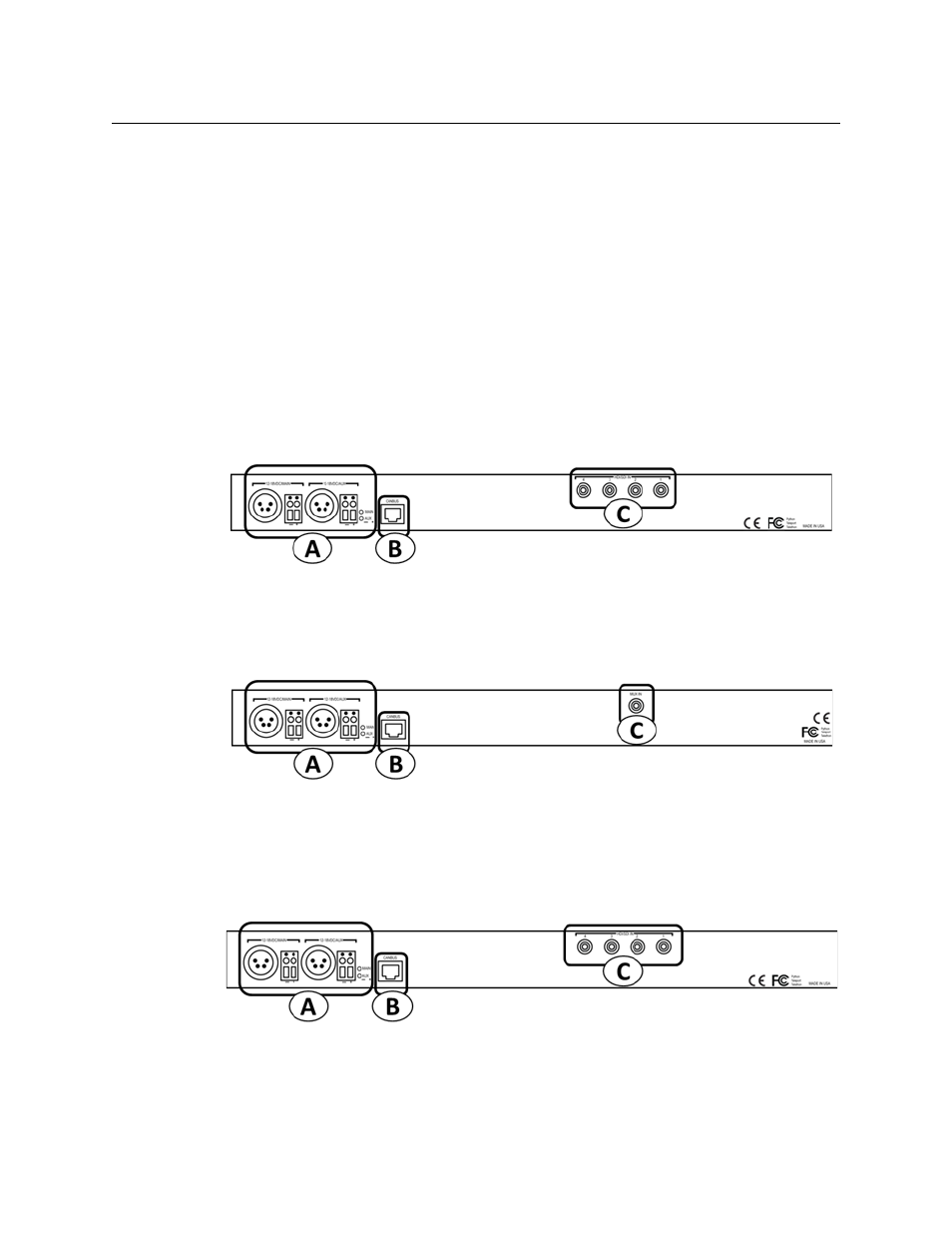

Fig. 3-12: Python 3G Transmitter Rear Panel without CWDM
Python 3G Transmitter Rear Panel with CWDM
The following model is the PY3-G000-W41 with a single ST input.
Fig. 3-13: Python 3G Transmitter Rear Panel with CWDM
Python 3G Receiver Rear Panel without CWDM
The following model is the PY3-R000-ST4 with four ST fiber inputs converted to four
SDI/Data BNC outputs.
Fig. 3-14: Python 3G Receiver Rear Panel without CWDM
