6 Performer-HD Installation Planning Guide
Matrix BNC Cabling
Input Sources and output Destinations are cabled using 75 Ohm BNCs. All
outputs are duplicated. Any output that is not being used has to be termi-
nated with a 75 Ohm terminator.

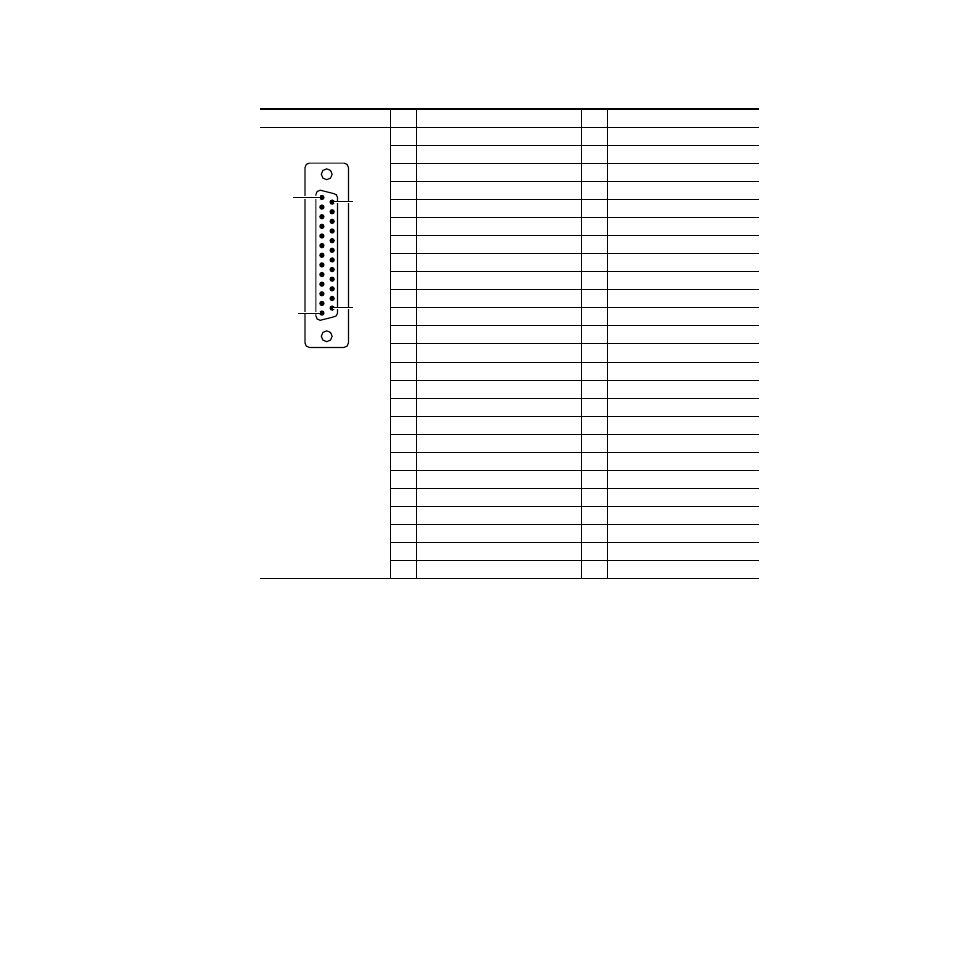

Table 2. Remote 25-Pin D Connector Pinouts
Connector Pin Remote Pin Option
13 VA (bit A of 4-bit binary video status 1 Switch 1
25 VB (bit B of 4-bit binary video status 2 Switch 2
24 VC (bit C of 4-bit binary video status) 3 Switch 3
23 VD (bit D of 4-bit binary video status) 4 Switch 4
5 AA (bit A of 4-bit binary audio status) 5 Switch 5
6 AB (bit B of 4-bit binary audio status) 6 Switch 6
7 AC (bit C of 4-bit binary audio status) 7 Switch 7
8 AD (bit D of 4-bit binary audio status) 8 Switch 8
19 0/ a (bit O of 5-bit binary source select)
a / = Active Low
9 Switch 9
21 A/ (bit A of 5-bit binary source select) 10 Switch 10
22 B/ (bit B of 5-bit binary source select) 11 Switch V (Video Only)
9 C/ (bit C of 5-bit binary source select) 12 SwitchA1 (Audio 1 Only)
20 D/ (bit D of 5-bit binary source select) 13 Switch A2 (Audio 2 Only)
12 KEY ON/ (active low - any button press) 14 GPI (Switch) Common, +5V
10 A ONLY/ (active low - audio only select) 15 Tally Relay 1
11 V ONLY/ (active low - video only select) 16 Tally Relay 2
1 TX RS422+ (RS485 <+>) 17 Tally Relay 3
2 TX RS422– (RS485 <->) 18 Tally Relay 4
14 RX RS422+ 19 Tally Relay 5
15 RX RS422– 20 Tally Relay 6
3 TX RS232 21 Tally Relay 7
16 RX RS232 22 Tally Relay 8
4 VI Strobe 23 Tally Relay 9
18 Ground (RS485 ) 24 Tally Relay 10
17 ≈ +20V DC 25 Tally Common
Pin 1
Pin 13
Pin 14
Pin 25
D-25 Female
