4 Performer-HD Installation Planning Guide
Installation

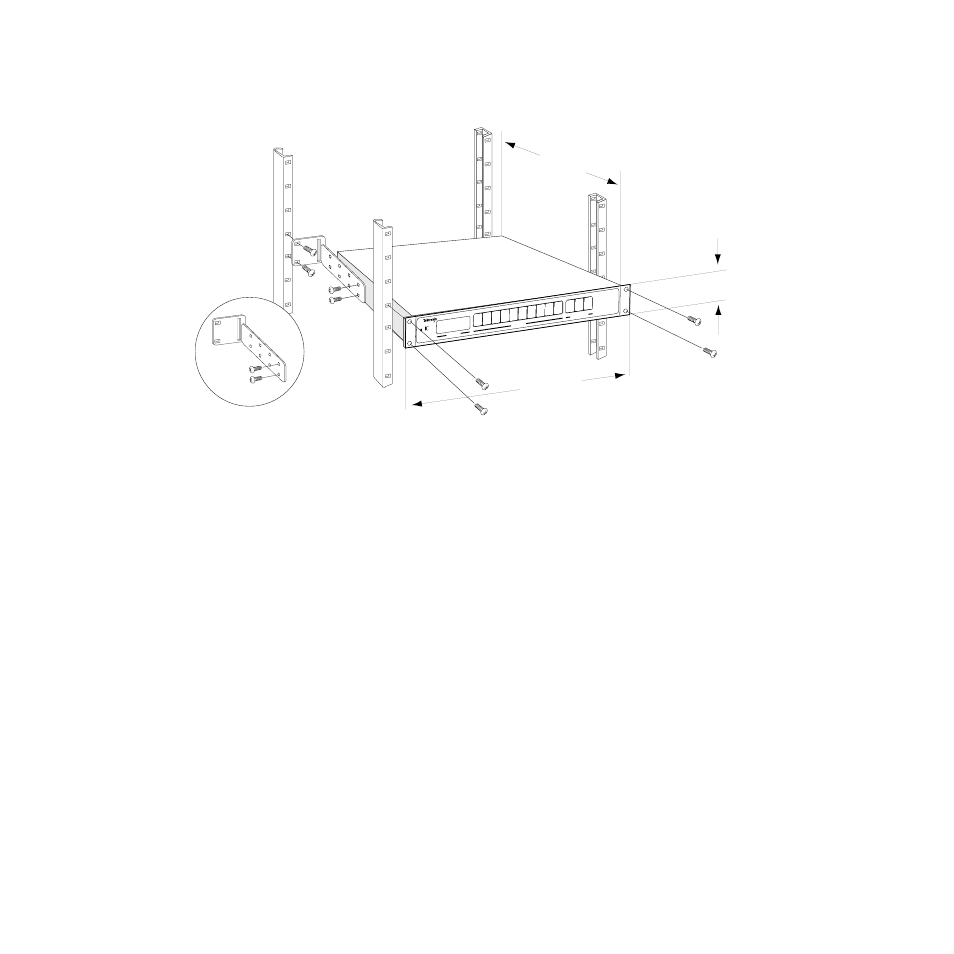

Figure 2. Rack Installation
Performer-HD is installed in a standard 483 mm (19 in.) equipment rack.
The frame occupies 1 RU (Rack Unit, 44 mm/1.75 in.) of vertical space.
Figure 2 shows how to mount the frame in the rack. The rear rack mounting
bracket is supplied with the frame. Use the mounting bracket to support ca-
ble weight on the back of the Performer-HD.
There are many different rack manufacturers. The size and thread pitch of
mounting screws varies. These screws must be supplied by the rack manu-
facturer or purchased locally.
CAUTION When installing a Performer-HD router in a rack with other devices keep the
Performer-HD router out of the airflow path of vertically cooled components.
A1
CH 1/2
A2
CH 3/4 Video
Grass Valley
1 2 3 4 5 6 7 8 9 10
Input Selection
Performer-HD
VAA
Breakaway/Protect
Status/Display
V A1 CH1/2
On HD Vid
Present Reclock
Off
A2 CH2/3
A2
CH 3/4
44 mm
1.75 in.
254 mm
10 in.
483 mm
19 in.
