KDD-PSU Power Supply Option
The KDD-PSU option is a 1RU frame unit designed for rack mounting as
shown in
Figure 27 on page 41 . It features a wide range AC power supply
providing power for a remotely-mounted Kayak HD Control Panel or for
each additional Control Panel connected to the same processor chassis.
Power output is sufficient for two 1 M/E systems or one 2 M/E system.
Grass Valley recommends that customers purchase this option if the dis-
tance from the Frame to the Control Panel is more than 100 meters.

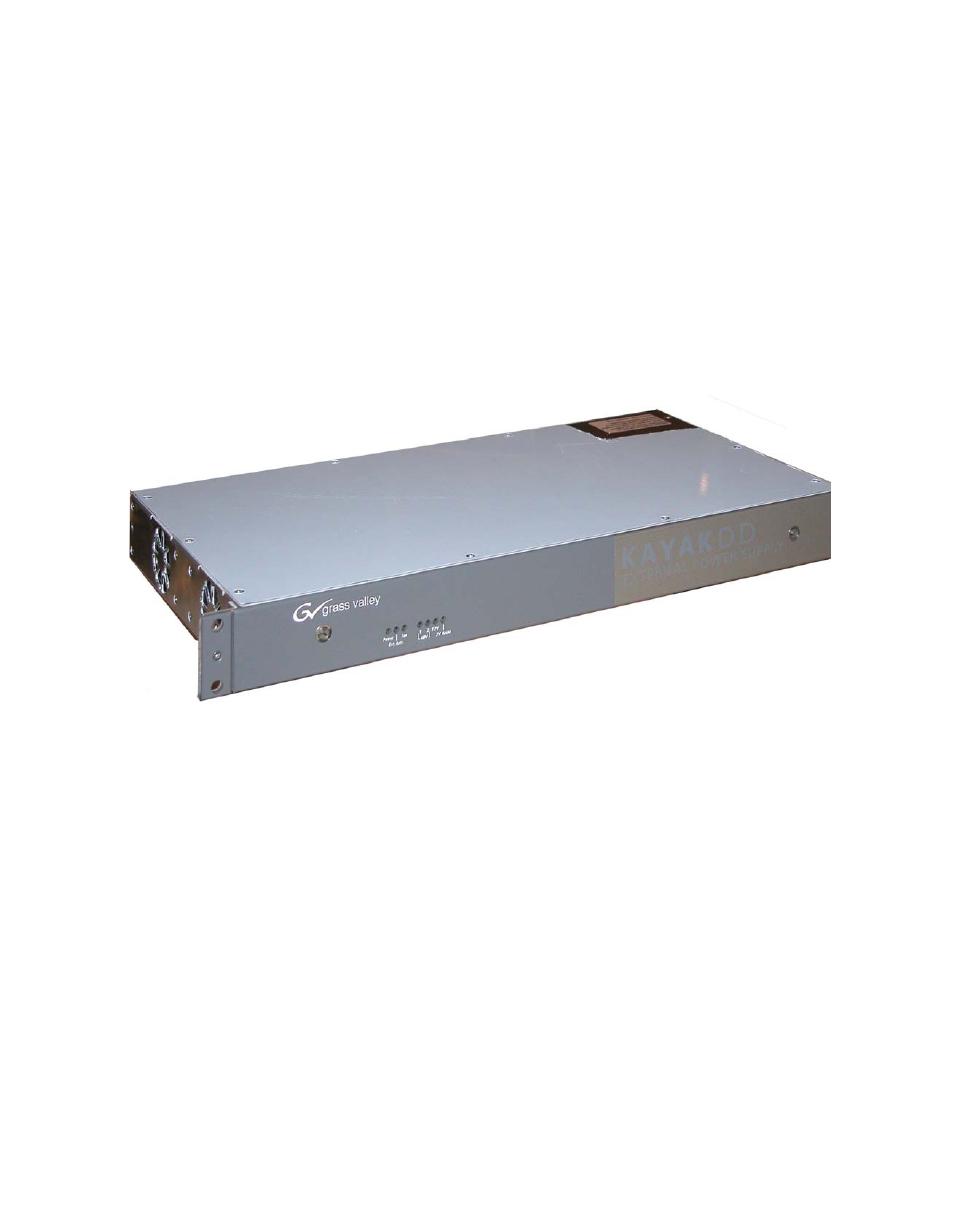

Figure 26. KDD-PSU
KDD-PSU-F
ro
n
t-Left
