Kayak HD — Installation Planning Guide 19
Kayak HD Control Panels
Kayak HD 250C, 250, 300 Control Panels

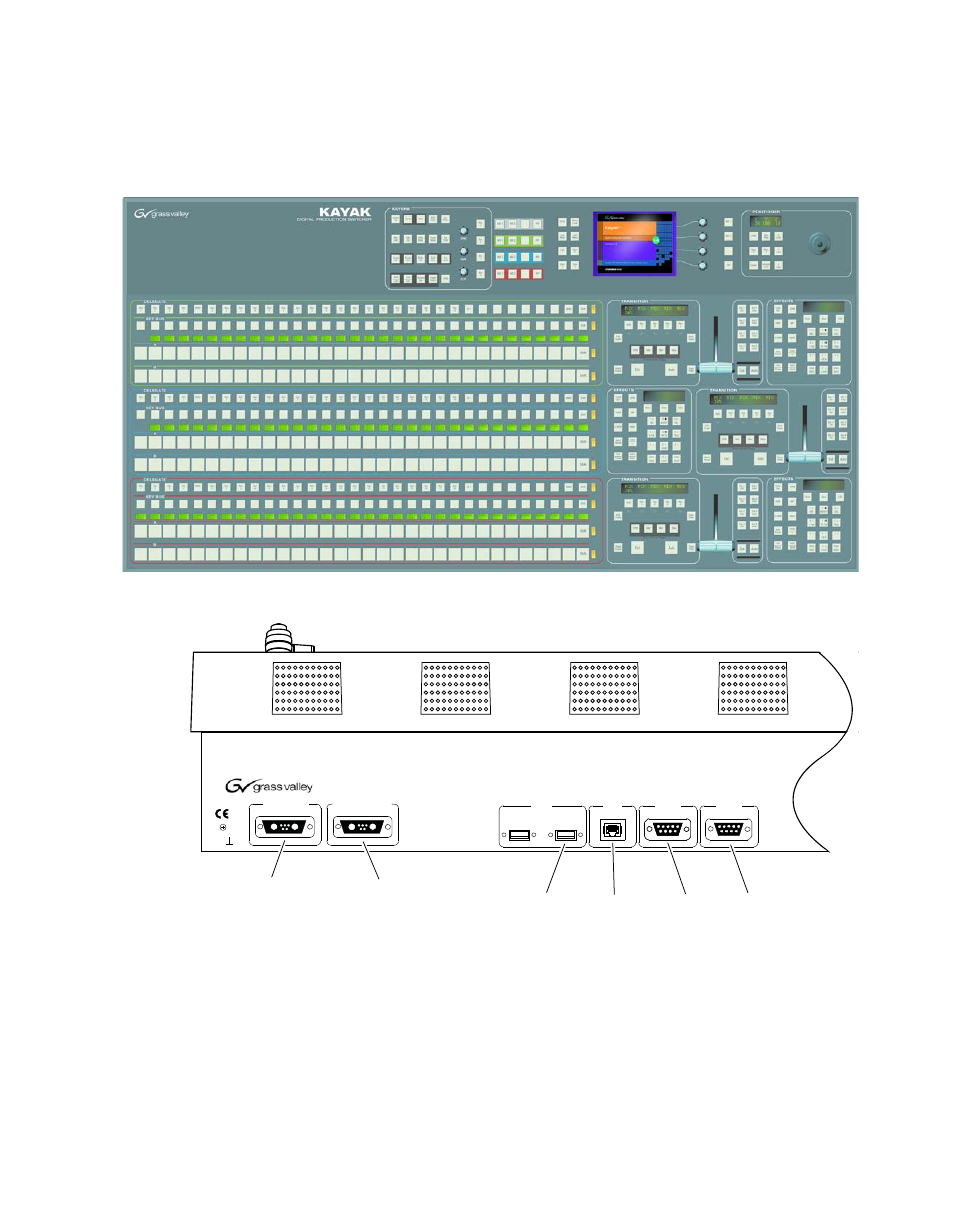

Figure 9. Kayak HD 250C, 250, and 300 Control Panel
Figure 10. 3 M/E Control Panel, Rear View
J1A J1B
DIGITAL PRODUCTION SWITCHER
J2 J3 J4 J5 J5
DC POWER IN
48V/1.3A max. 48V/1.3A max.
RED. DC POWER IN USB LAN RS 485 RS 232
1 2 COM 2 COM 1
Spare
TE
KAYAK
48V DC Power In
(from Frame)
Redundant
DC Power In LAN USB RS 485 RS 232
8448_12_
r0
