54 Kayak HD — Installation Planning Guide
Section 4 — Options
8RU Frame Tally (GPI In 25-32, GPI Out 97-128)
Socket Ribbon Cable 50-Pin D-Sub Signal
1 1 GPIInCom
2 34 GPIInCom
3 18 GPIIn25
4 2 GPIIn26
5 35 GPIIn27
6 19 GPIIn28
7 3 GPIIn29
8 36 GPIIn30
9 20 GPIIn31
10 4 GPIIn32
11 37 GPIOutComAA
12 21 GPIOut97AA
13 5 GPIOut98AA
14 38 GPIOut99AA
15 22 GPIOut100AA
16 6 GPIOutComAB
17 39 GPIOut101AB
18 23 GPIOut102AB
19 7 GPIOut103AB
20 40 GPIOut104AB
21 24 GPIOutComAC
22 8 GPIOut105AC
23 41 GPIOut106AC
24 25 GPIOut107AC
25 9 GPIOut108AC
26 42 GPIOutComAD
27 26 GPIOut109AD
28 10 GPIOut110AD
29 43 GPIOut111AD
30 27 GPIOut112AD
31 11 GPIOutComAE
32 44 GPIOut113AE
33 28 GPIOut114AE
34 12 GPIOut115AE
35 45 GPIOut116AE
36 29 GPIOutComAF
37 13 GPIOut117AF
38 46 GPIOut118AF
39 30 GPIOut119AF
40 14 GPIOut120AF
41 47 GPIOutComAG
42 31 GPIOut121AG
43 15 GPIOut122AG
44 48 GPIOut123AG
45 32 GPIOut124AG
46 16 GPIOutComAH
47 49 GPIOut125AH
48 33 GPIOut126AH
49 17 GPIOut127AH
50 50 GPIOut128AH

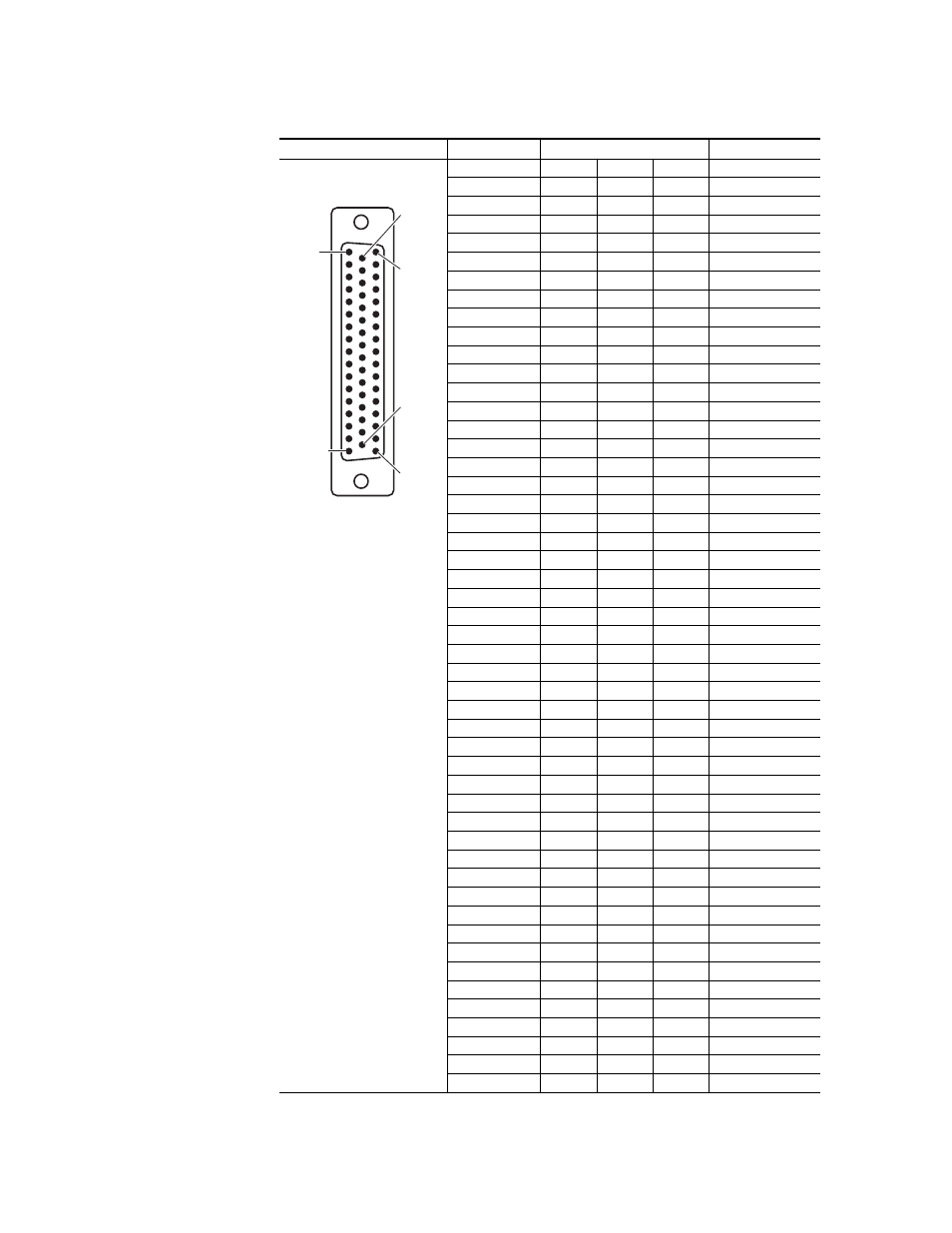

D-50 Female
Pin 1
Pin 17
Pin 33
Pin 50
Pin 18
Pin 34
