6
Setting Up Your KMV-3901/3911 Multiviewer
Physical Setup

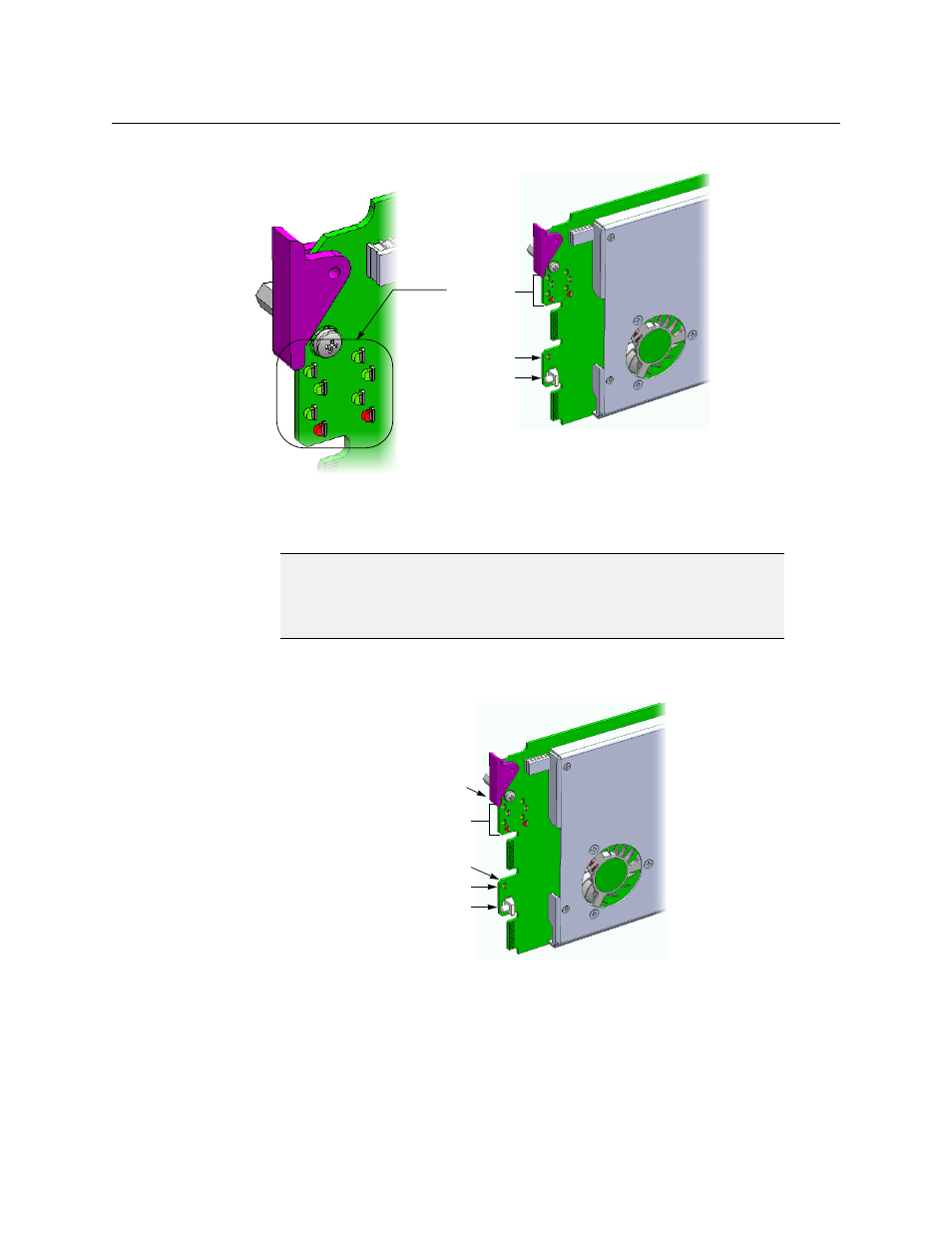

5 Check that all SDI LEDs associated with the connected video inputs are green:
Changing the Output Resolution
To change a display’s resolution from the Densité controller’s local control panel
1 Press the Select button on the front edge of the KMV-3901/3911 card.
Select button
Status LED
SDI LEDs
2
1
3
4
5
6
7
8
IMPORTANT
All KMV-3901/3911 cards within a housing frame must have their output
heads configured with the same refresh rate. If your frame is referenced, then
the heads’ refresh rate must also match the reference signal's refresh rate.
Select button
Status LED
Boot LED,
Power LED,
CPU Status LED (other side of board)
SDI LEDs
USB connector (other side of board)
