Page 3

?

?

?

?

?

?

?

?

?

?

?

AUX COM Jack: Provides communications to select perpiherals

and provides capability for future expansion.

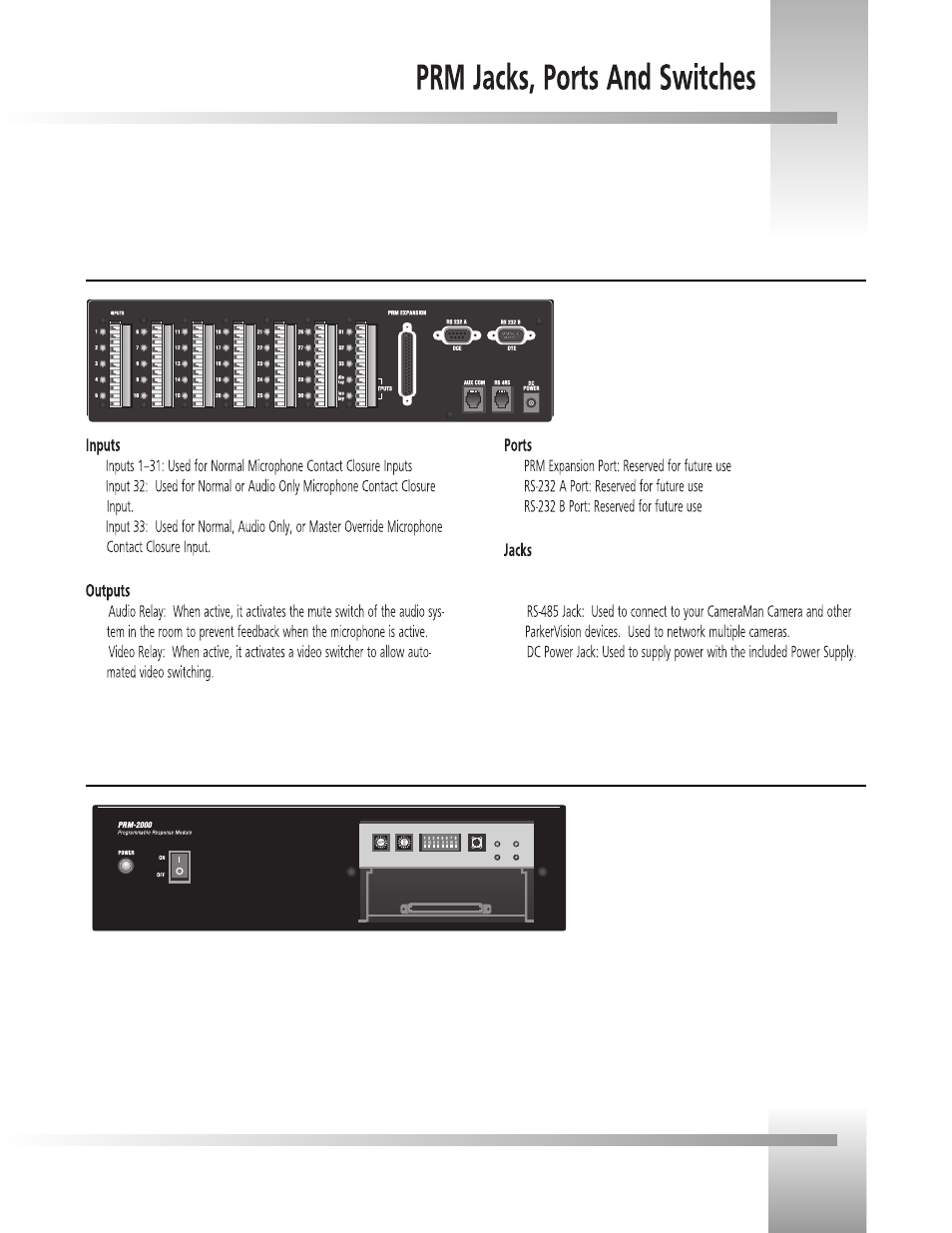

PRM Configuration Panel (front with plate removed)

PRM Jacks and Ports (back)

Power Switch: Used Turn Power On.

PRM Address Switch: 16-position rotary switch used to set the PRM

address which will reside on the RS-485 bus.

Base Unit Address Switch: 16-position rotary switch used to tell the

PRM which camera it controls. It should match the Base Unit Address

switch on the CameraMan camera.

DIP Switches: Used to configure the PRM’s camera and microphone

control.

Reset Button: Used to reset the PRM, but will not clear anycamera pre-

sets.

Indicator Lights: Indicates communication activity.
