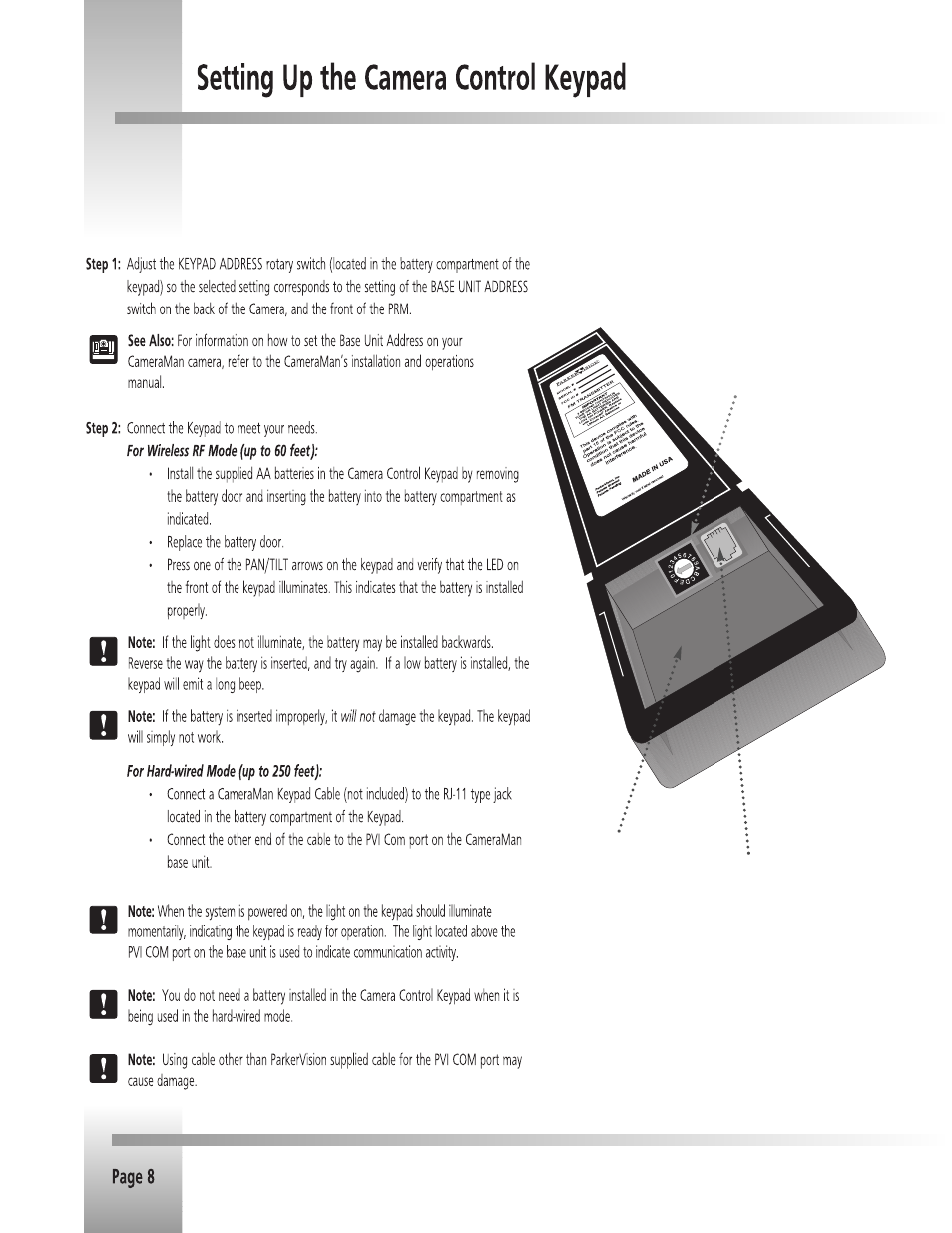

Your Camera Control Keypad is designed to be used in either a wireless, or hard-wired mode. The wireless mode allows you to
move freely about the room, while the hard-wired option gives you the ability to control the camera from greater distances. For
either, follow the steps below to prepare your keypad for use with your Student Camera System.

RJ-11 jack, for
hard-wired mode

Battery compartment

Keypad Address
