4 HD Fibre adapter connectors

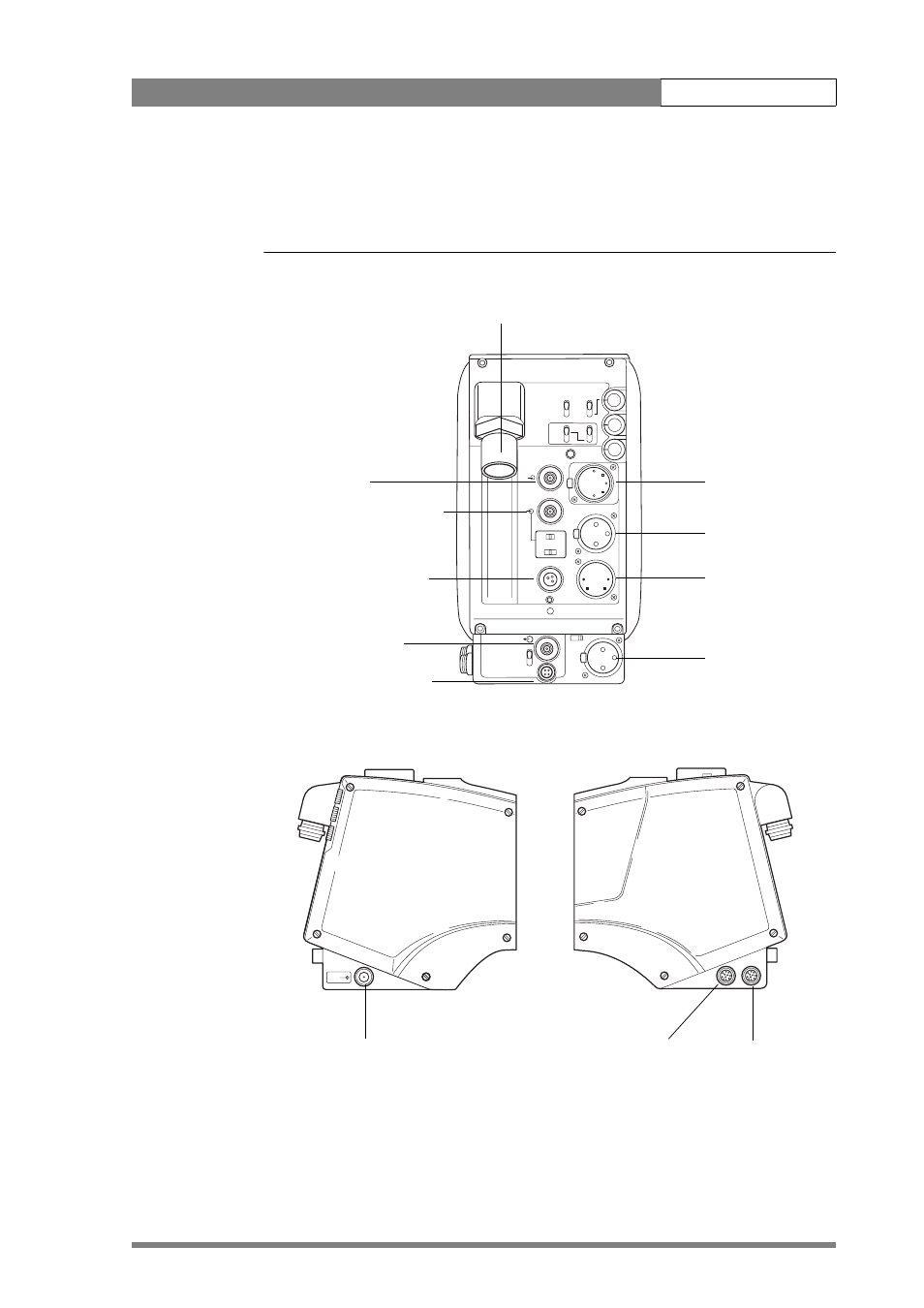

Figure 2 LDK 5476 HD Fibre adapter connector location
Call
Mic
VF
Front Rear 48V
Ext
Script
Light
Breaker
Power on
DC in
CVBS (option)
Eng
Prog
r
Prod Eng
Off
Prod
Ext
Mix
Front
Rear
Loc
TP
Mic 2
48V On
12V 1.5A DC Out
Ext 2
Ext 1
REF
IN Aux
Tracker
Fibre connector
CVBS output
Viewfinder/Ext. video output
Script light power supply
Teleprompter output
DC power and tally output
Intercom headset
Audio microphone 1
input
DC power supply
input
Audio microphone 2
input
Reference signal input Tracker
communication
connector Auxiliary
connector
