HD Fibre adapter LDK 5476 | HD Fibre adapter connectors 11

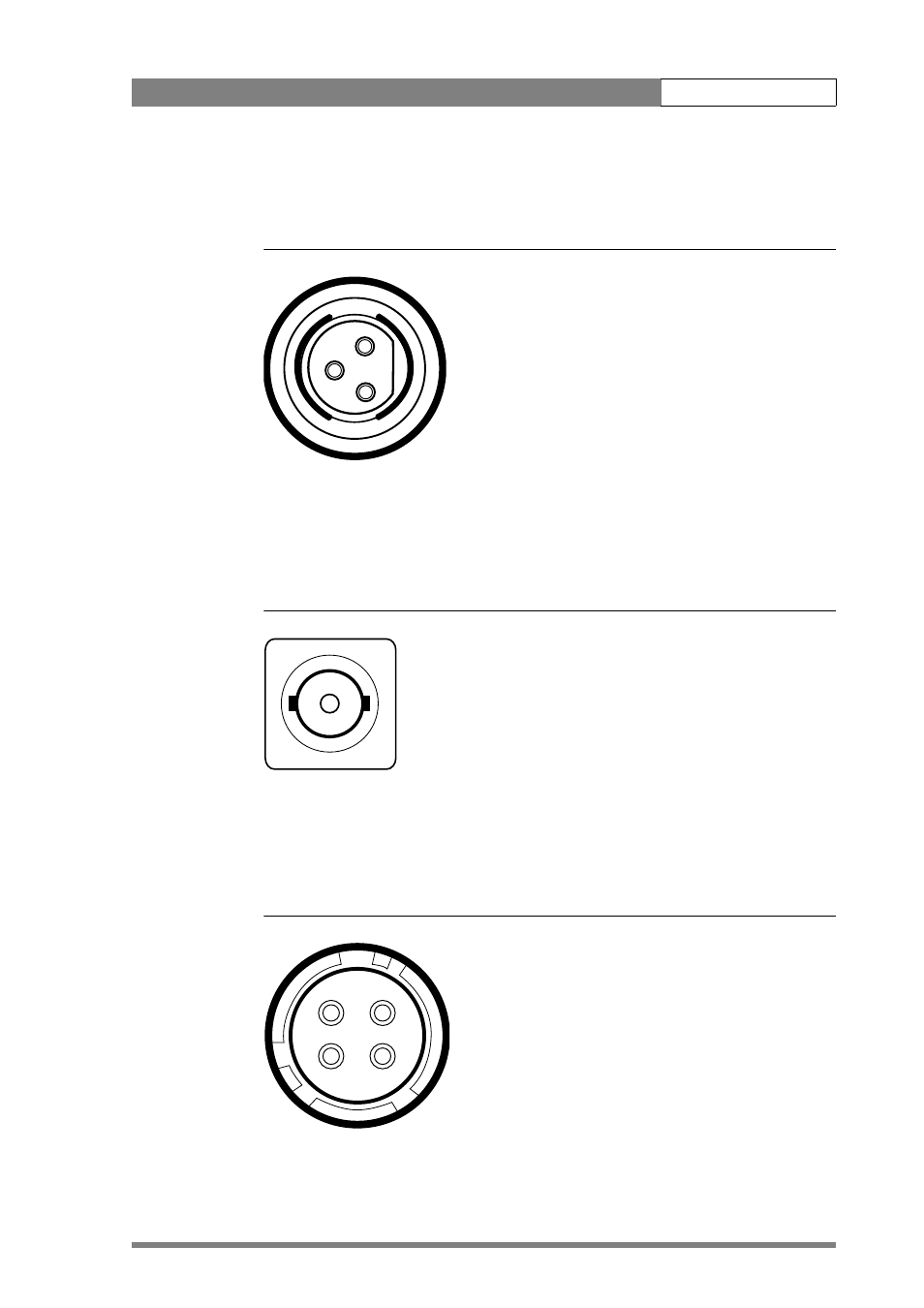

4.4 Script light power supply socket
Figure 6 Script light power supply output connector
3
1
2
1. +12 Vdc (maximum dissipation 3W)
2. Power return
3. Shield
Fischer 3-pole female: panel view (X102)
4.5 Teleprompter video output connector
Figure 7 Teleprompter video output connector
This socket supplies the 1Vpp teleprompter signal applied
to the Base Station.
BNC connector: panel view (X112)
4.6 DC power and tally output socket
Figure 8 DC power and tally output connector
4
1 2
3
1. Ground
2. On air
3. No connection
4. +12 Vdc (max. 18W)
Shield of cable directly to the connector housing.
The socket provides access to an internal tally switch.
When the camera is on-air, the contact of the internal
relay is closed.
Hirose 4-pole female: panel view (X110)
